EMV Certificated Mobile Card Reader with Sdk

Name: EMV Certificated Mobile Card Reader with Sdk
Brand: China-Manufacturer-Directory.com
SKU: 682367982
Availability: InStock
Rating: 4.6 (132 reviews)

Supplier:	Shenzhen ZCS Technology Co., Ltd.
Price:	US $ 15-18/Piece
Min Order:	1000/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	imixpay-mic
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
EMV Certificate:	EMV Level1&L2 Pboc3.0
Card Type:	Magnetic Card& IC Chip Card
Encryption:	Yes
Sdk:	Yes

Product Description

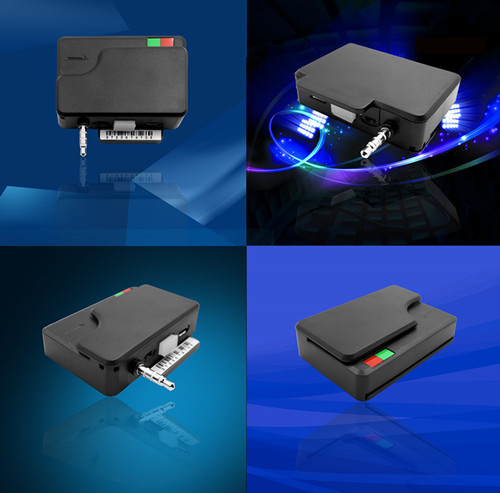

SZZCS: Portable Smart Card Reader Magnetic+IC/EMV Chip Card

Professional structure design: with the professional structure design, beyond the traditional magnetic card reader, perfect combined with mobile drivers.
Safe and Secure: provide safe and secure transactions, provide hardware
based 3DES encryptionl Secret key Injection: support to set up a key injection process and software to inject the key through the audio jack into the device
Provide DUKPT KEY ,3DES Management
support magnetic card ,IC card and EMV card
Green Initiative: the battery can be charged
Superior magstripe reading performance: offers exceptional card reading
capabilities in a durable form factor
Easy to use: simple and best to use, with a smart lanyard.
Provide variety sdk demo:ios,android,windows,PC

3.TECHNICAL SPECIFICATION:

Interface	Audio headphone jack,Bluetooth and USB OTG (Android)
Certifications	EMVL1&L2,
Storage Temperature	-30ºCto70ºC (-22ºF to 158ºF) non-condensing
Operating Temperature	0ºCto55ºC (32ºF to 131ºF) non-condensing
Compatibility	ios series,Android
Working power	li-ion battery power
Battery capacity	120mAh/200mAh
Battery life	More than 500 cycles
Chip	4K SRAM
Rated voltage	3V DC
Idle Current	12nA
Power on Current	5.57mA(Including LED lights 2mA)
Send command Current	40mA
LED lights	Red: power indicator ,Green: charge indicator
Switch button	Switching two modes, CTIA and OMTP. Appropriated earbuds direction CTIA mode and the other direction is the OMTP mode
IC power indicator	Light on means the battery charge remaining
Charge indicator	Light on means in charge
Charging time	2 ~ 3 hours
Relative Humidity	Maximum 95% non-condensing, dry storage
Dimensions	60mm(L) X 40mm(W) X 17mm(H)
Weight	60g
IC
Reference Standards	ISO-7816 Class A,B and C,EMV
Operating Life	approx. 100,000 passes
Card thickness	About 0.75mm
Insert IC card Current	20mA
Operate IC card	50mA
Working current	25mA
Working Hours	It can continuous operation the IC card for more than 6 hours. For example a transaction needs to send 40 APDU commands, in a fully charged condition, it can trade a thousand times , good performance phone will be faster.
Magnetic Stripe
Reference Standards	ISO 7811,AMMVA,CADMV and other format
Swipe speed	3 ~ 60 inches per second,bi-directional
Operating Life	approx. 300,000 passes
Track position	1&2 tracks
Card thickness	0.76~1.2mm
Working current	7mA
Working Hours	Support swipe magnetic stripe card more than fifty thousand times

Shenzhen ZCS Technology Co., Ltd.Is a professional Import and Export company that produces high quality products in the worldwide automatic identification and data collection (AIDC) and Point Of Sale markets.Our headquarters and manufactory is located in Shenzhen China.

Our products include Magnetic card reader writer, Portable Magnetic Stripe Card Readers, IC card RFID reader writer, Pinpad keyboard, and Various cards such as magnetic card, SLE card, ATMEL card etc.We also welcomes OEM/ODM businesses.With a team of top-notched technical staffs, we are able to prototype your desired specifications and eventually deliver production-quality products in a reasonably short period of time.

We strive to continue to improve our products and services.We offer most of our products with 2 years warranty and free technical support.Your choice is our glory and pride.No best, only better is our promise.Thanks for choosing us.
