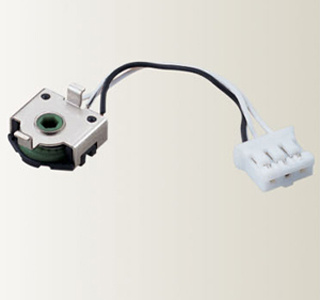

Features
1.Our miniature product design measures 4.0mm in height from axes to top and the thickness is 5.0mm
2.They can meet the life requirements of 200,000cycles(Min)
3.The axes design is hexagonal:it's not only components predigest,but also the stability of operation has been improved
Welding conditions
1.Hand soldering
Use a soldering iron of 30 watts,controlled at 350ºC approximately 3 seconds while solder applying
2.Wave soldering/Reflow soldering
The peak temperature of the wave oven should be set to 260ºC max.condition for soldering Temperature Profile
Material
1.Terminal: Brass Plating silver
2.Shell: Iron Plating silver
3.Base: Thermoplastic
4.Revolving Wheel: Thermoplastic
5.Fixed Plate: Stainless Steel
6.Reed: Phosphor bronze
|
Basic specfication Parameter |
|
|
|
Electrical Characteristics |
Rating |
DC5V 1mA |
|
Contact Resistance |
5 Ω max |
|
Insulation Resistanc |
50m Ω min |
|
Withstand Voltage |
AC50V(50-60Hz) 1 Minute |
|
Electrical Life |
200,000 Cycles (Min) |
|
Mechanical/Reliability Characteristics |
Operating Force Range |
15-25 |
|
Mechanical Life |
200,000 Cycles etc (NO Load) |
|
Operating Temperature Range |
-25ºC+ 80ºC |
|
Ambient Humidity Used |
≤85%RH |
|
Solder Ability |
245ºC ±5ºC 3S±0.5S |
|
Withstand Soldering Temperature |
260ºC ±5ºC 3S±1S |
