Product Specifications
| Prod Model: |
KVS-8204C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
High quality, encrypted, water-proof, dust-free, anti-vandalism
Detailed Product Description
High quality, encrypted, water-proof, dust-free, anti-vandalism

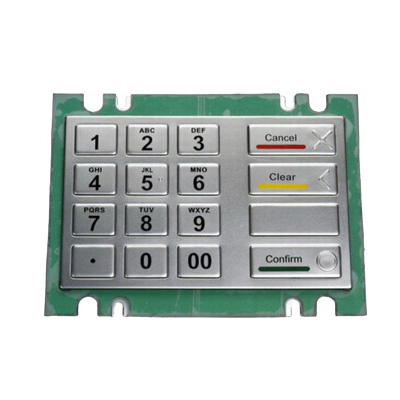

KVS Encryption Keypad Features
- Stainless Steel and polymer keyboard
- Different language layouts are acceptable to supply on request
- DES and Triple DES and RSA support
- Remote loading key with digital signature support
- Authorize for remove and installation support
- USB and RS232 interface
- 128 KB data (keys) Storage
- Connectors for Function Keys and Beeper(second option)
Application Field
- OEM Encrypting PIN Pad for new automatic teller machines
- EPP Update for ATMs without Triple DES and PCI feature
- Unattended payment solutions
- Ticket Vending Machines
- Kiosk Solutions
- Gas Station
- Easy integration
- Highly competent software support
Electric Characteristics
- PIN input: 10 numerical keys and 6 function keys
- Security encrypted key and self destruction function when tamper attack, water-proof, dust-free, vandalism-proof, prevent from tamper drilling, penetration, dismantling, audio monitoring, replacement
- Sensitive data will be kept for more than 5 years when power off.
- Standard: ISO13491, ISO9564, IBM3624, ANSI X9.8, ANSI X9.9, ANSI X9.19
- Encryption process: Data encryption and data decryption, MAC and algorithm, PIN encryption
- Power supply: DC +5V +/- 10%, max 200mA
- RS232: dB9-M according to RS232-D up to 115200 baud.
- Communication interface: USB 2.0 connector, emulate RS-232 port or API driver.
- Internal beeper
- External keypad: With connector for 2 bars x 4 function keys
Mechanical characteristics
- Keys are made of stainless steel with etch engraving and colored graphics, front plate is polymer frame.
- All texts on the keypad is black, function keys with colored graphics
- Key lifespan > 2, 000, 000 times
- Stainless steel plate, 12 keys 24 x 19mm with R2.5 corners and 4 keys 50 x 19mm with R2.5 corners, with a raised DOT on the "5" key, embossing X/0/I and raised braille on function keys for aiding visually handicapped users
- Key activation force: 2- 3N
- Key trip >/=0.45mm
- Key and panel material: Stainless steel
- Water-proof device: A watertight gasket
Environment Adaptability:
- EPP is watertight when mounted in the ATM correctly
- Protection level: IP65 static and IP 54 dynamic
- Operation temperature range: 0° C~+40° C
- Relative humidity range: 30%~90% RH(normal environment)
- Storage temperature range: -25° C~+55° C
- Relative storage humidity range: 20-95%(non-condensing)
- Air pressure: 60-106kPa
Software functions
- KVSIO offers driver program, DLL, API and other related professional software support.
- It is welcome for customer application software and firmware development and offered on request.
Dimensions
- Front plate W87.4 x D91.4(mm)
- Overall: W140 x D98 x H30(mm)
Net Weight
0.8KG
