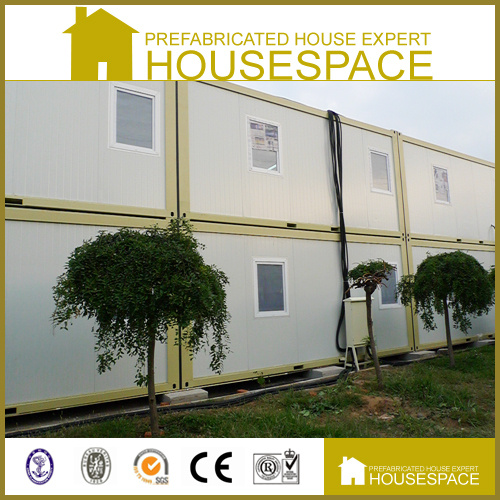

Housespace Prefab Co., Ltd. >> Energy Effective Stable Modular Prefabricated Building with Furnishing

Energy Effective Stable Modular Prefabricated Building with Furnishing

Name: Energy Effective Stable Modular Prefabricated Building with Furnishing
Brand: china-manufacturer-directory.com
SKU: 683627082
Availability: InStock
Rating: 4.4 (99 reviews)

Supplier:	Housespace Prefab Co., Ltd.
Price:	US $ 3000-3200/Piece
Min Order:	4/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	S20-N
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name:	Energy Effective Stable Modular Prefabricated Buil
Keywords:	Prefabricated Building
Structure:	Galvanlized Steel Frame
Size:	6055mmx2435mmx2790mm
Ceiling:	Laminated Chip Board
Flooring:	Vinyl Sheet on Polywood
Wall And Roof:	PU, Rock Wool or Neopor EPS
Window:	Alumnium or PVC Frame
Door:	Steel Cleanroom Door
Material:	Container
Usage:	Workshop
Certification:	CE

Product Description

Energy Effective Stable Modular Prefabricated Building with Furnishing

Certification
1. CE Certificate
2. ISO 9001
Products Advantage
A. Panel structure, saving transport and storage space.
B. Pre-assembled in the factory in order to minimize the on-site work.
C. With firm structure, the earthquakes and typhoons can be resisted.
D. With the insulation material of rock wool and Noepor polystyrene, good fireproof performance is available.
E. Modular design, be linked on unlimited extension.
F. Easy to be repaired and maintained for high standardization

Test Results
Load bearing -floor load: Max. Load capacity 2.0 Kn/m2(200kg/m2)
Capacity -wind load: 25m/s(90kg/h)
Earthquake intensity 8 degree

No.	Item	Specification	Details
1	Structure	Size:	20' ft: 6055 x 2435 x 2790mm
			Can customized, do according to request
2	Ceiling	Sandwichpanel	Galvanized cold-formed steel roof frame with gutter, steel tube cross member
			ISO shipping container corners
			Rock wool, EPS can be chosen, Thickness (50, 100mm can be chosen)
3	Wall	Rock wool sandwich panel/ Noepor polystyrene	Color -coated steel sandwich panel, color steel sheet 0.376mm
			Insulation(EPS, Rock wool can be chosen), Thickness (50, 75, 100mm can be chosen)
4	Floor	Customized	50mminsulation(EPS, Rock wool can be chosen)
			15mmuntreated bamboo plywood with 1.5/ 2mmPVC floor finished or treated bamboo plywood only can be chosen
5	Removable Pillars		Steel cold-formed pillar, well painted
			Linked with roof and floor with screws
6	Window	Customized (size, type, spot and quantity)	Sliding window/European style window ect. (normal size 875*1000mm)
	Door		Sliding door/Case door ect (normal size: 900*2100mm)
7	Electricity	Design can be provided according to the related law of the country	Distribution boxes with breakers Lights, sockets & switches Wire (concealed wiring for high class decoration)
	Water plumbing		Flush toilet, shower, pipe etc.
8	Transportation	Flat pack/ knock down	Completely knocked down& be loaded into container.

Housespace Prefab Co. Ltd is a professional manufacturer of modular houses which located next to Beijing six rings, China. Covering with 20, 000 square meters' area, Housespace has whole production facilities including forming workshop, welding workshop, painting workshop, carpentry workshop, assembly workshop. Housespace is working hard to be specialized in the production of European standards' modular housing.

Housespace is committed herself to the development and management of new folding container housing and she promotes the standardization, modularization and universal of the temporary building. With the advantage of energy saving and environmental protection, quick installation and optional combinations, the products are widely used in the temporary and permanent buildings in North America, South America, Australia, Europe, Southeast Asia and the Middle East.

Housespace introduced the world advanced production lines and equipment in order to design, manufacturer and install the modern modular houses with the characteristics of standardization, precise and custom-design.

Meanwhile, Housespace has a strong technical team. The company has a number of senior architects and structural engineers. This team adhering to the business philosophy of "strong skills and integrity", she constantly optimizes the management and marketing teams to build comprehensive, standardized sales service system. She makes the design according to the customer request and provides on-site installation guidance and she constantly provides the customers with the best products and services.

Housespace is committed to professional, high quality, efficient products and services to create maximum value for all of the customers. She always strives for keeping ahead in the trading line.
You are welcome to visit our website, when you free and send us your inquiry anytime.
