Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

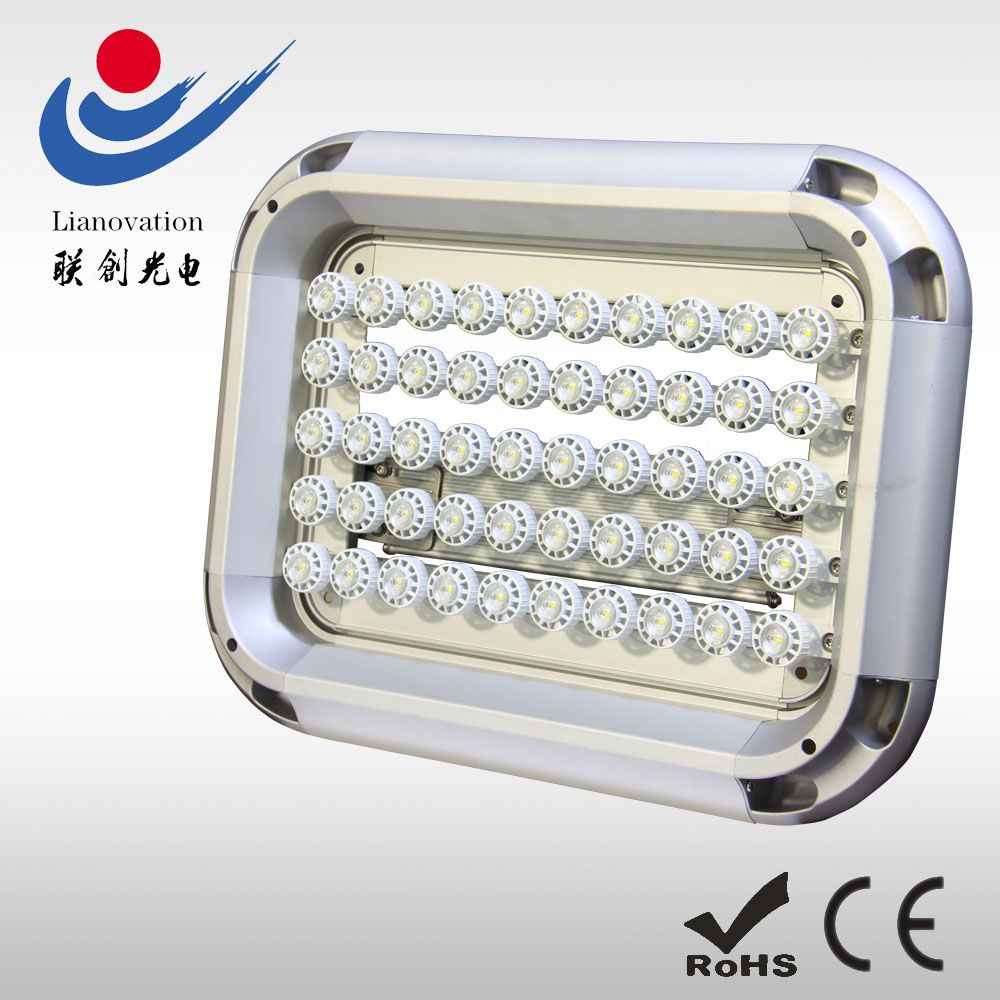

Product: Energy saving LED Tunnel light
1)- Compare with the traditional high pressure sodoium lamps, LED tunnel light can save more than 50% energy.
2)- The efficiency of the total lamp can reach 105lm/W or above.
3)- Adopting direct heat conduction, The radiator directly contact with air, High heat dissipation efficiency.
4)- Power factor of the power conversion efficiency.
5)- The level of waterproof and dustproof is IP65.
6)- The products are certificated with CE, RoHS.
|
Model No. |
LCTL060B-L060 |
LCTL080B-L080 |
LCTL100B-L100 |
LCTL120B-L120 |
|
Input Voltage |
AC90V~265V/50-60Hz |
|
LED Quantity |
60PCS |
80PCS |
100PCS |
120PCS |
|
Power |
68W |
80W |
100W |
120W |
|
Luminous Flux |
≥ 7140 lm |
≥ 8400 lm |
≥ 10500 lm |
≥ 12600 lm |
|
Luminous Efficiency of LED |
≥ 105lm/W |
|
Luminous Efficiency of Lamp |
≥ 90lm/W |
|
Color Temperature |
4000K~6000K |
|
Color rendering Index |
≥ 70 |
|
Power factor |
≥ 0.95 |
|
Light distribution Curve/Spot |
Bat wing /rectangular beam |
|
Protection Rating |
IP65 |
|
Operating Temperature/Humidity |
-40 degree celsius -50 degree celsius |
|
Material of the lamp |
Aluminum die-cast aluminum |
|
Weight |
L414*W350*H57mm |
L414*W480*H57mm |
L414*W600*H57mm |
L414*W720*H57mm |
Founded in June 1999 and listed at Shanghai Stock Exchange in March 2001, Jiangxi Lianchuang Optoelectronic Science & Technology Co., Ltd is one of the leading hi-tech enterprises of National Torch Program, an industrialization base of National 863 Program results, and a National model engineering enterprise of "Industrialization of Indium Gallium Nitrogen LED Epitaxial Wafers and Chips", as well as the core enterprise of industrialization of Nanchang National Semiconductor Illumination Project, and the technological research center of Nanchang Semiconductor Lighting Engineering, as well as a national high and new-tech enterprises.
Our company's main business, which give first priority to LEDs and optoelectronic wire cables, range from LED lighting products, optoelectronic wire cables, relays, communication and information services.Jiangxi Lianchuang Optoelectronic Science & Technology Co., Ltd is a high tech enterprise which specializes in R&D, production, sales and services of both LED outdoor lights and LED indoor lights, such as LED street light, LED tunnel light, LED tube light, LED bulb light and LED spot light and so on.We have a strong presence in the LED lighting industry through our application of the latest technology, advanced production equipments and a strict quality management system.
We have been providing high-performance and reliable electronic components for China's aerospace industry, especially for "Shenzhou" series and "Tiangong" series spacecrafts, which met special requirements of "Shenzhou" series and guaranteed its successful launch by high-quality products and services.
According to the corporate tenet of "absorbing persons of outstanding ability, pioneering great optoelectronic cause" and holding on to the philosophy of "focus on lighting career, make low-carbon, green and environmentally friendly life", we have intensified technological innovation and stressed team-building in order to make our company to be domestic top-grade optoelectronic enterprise with international competing ability.
