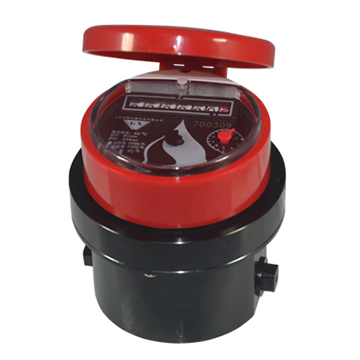

Engine Flow Meter (CX-FM)
Product Specifications
| Prod Model: |
CX-FM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output: |
Pulse |
| Flow Range: |
1~80L/H, 4-200L/H |
| Certificate: |
ISO, CE and SGS |
| Display: |
Mechanical |
| Experience: |
More 20 Years |
| Exported: |
More 80 Countries |
| Measuring Media: |
Liquid |
| Main Application: |
Diesel Fuel |
| Accuracy: |
1% |
| Measurement Object: |
Various Engines |
Product Description
Shanghai Cixi Instrument Co.Ltd is a leading manufacturer of fuel flow meter and professional suppplier of quality one-stop solution for automation and process control in China.
Production introduction
1)Fuel consumption flow meter is the most popular counter for various engines all over the world.
2)It records real fuel consumption in high precision and totally anti-theft.help user to easy to manage fuel consumption.
3)It's widely used for various vehicles,ships,burners,boilers,generator sets and so on.
Advantage
1)Quick and easy installation
2)Strainer optional for dirty fuel
3)Mechanical dial can rotate in 3600 for easy reading.
4) Tested for vibration, shock and electrical emission and immission (vehicle industry standards)
5) Pulse output for connection with GPS or remote display.
6) No extra maintenance necessary.
7)Totally anti-theft
8) Quick pay-back period.
9) Protection:IP65
| Model | Mechanical counter | Filter | Pulse | Flow range | Accuracy | Thread | Pressure |
| V4 | YES | NO | NO | 1-80L/H | 1% | M14*1.5 | 32bar |
| V4B | YES | YES | NO | 1-80L/H | 1% | M14*1.5 | 32bar |
| V4B-OEM | NO | YES | YES | 1-80L/H | 1% | M14*1.5 | 32bar |
| V4-OEM | NO | NO | YES | 1-80L/H | 1% | M14*1.5 | 32bar |
| V4R | YES | NO | YES | 1-80L/H | 1% | M14*1.5 | 32bar |
| V4BR | YES | YES | YES | 1-80L/H | 1% | M14*1.5 | 32bar |
| V8 | YES | NO | NO | 4-200L/H | 1% | M14*1.5 | 32bar |
| V8B | YES | YES | NO | 4-200L/H | 1% | M14*1.5 | 32bar |
| V8B-OEM | NO | YES | YES | 4-200L/H | 1% | M14*1.5 | 32bar |
| V8-OEM | NO | NO | YES | 4-200L/H | 1% | M14*1.5 | 32bar |
| V8R | YES | NO | YES | 4-200L/H | 1% | M14*1.5 | 32bar |
| V8BR | YES | YES | YES | 4-200L/H | 1% | M14*1.5 | 32bar |
Cixi flowmeter Co., Ltd. Was established in 2008 and since then has been dedicating itself to research and manufacture of various kinds of flowmeter. With sophisticated experience in technology and management, CIXI Flowmeter has made a name for itself as an excellent manufacturer of various kinds of flowmeter. In 2007, we have especially set up Shanghai Cixi Instrument Co. Ltd for handling the deals of Export.
Thanks to outstanding performance of products, CIXI Flowmeters are being applied in more and more fields where there' S liquid to measure. Now company involves in polyurethane, fuel consumption, automotive, dispensing robots, semiconductors, odorizing equipment, batteries, electricity, telecommunications, petroleum, chemical, coal, metallurgy, water conservancy, food, medical, machinery and other industries. CIXI Flowmeters have found users in many countries besides China, such as Malaysia, India, Thailand, Vietnam, South Africa and so on. Increasing number of users are finding that CIXI Flowmeter are kind of product with super performance and reasonable price.
Now we have super mirco flow meter, oval gear flow meter, coriolis mass flow meter, electromagnetic flow meter, piston flow meter, and Spur gear flow meter, gear pump, gear metering pump. There is no other manufactures who can produce micro flow meter and many company import this kind of flow meter from Japan or America. After we put our micro flow meter into market, the news was spreaded widely and we got many reputation from our client. We now have sold this flow meter to more than 100 countries which contain wide and different applications. Meanwhile our oval gear flow meter has aquired many certificates and filled the vacancy of Chinese market. At the same time, in order to cooperate with the whole set of sales and services of the product, we can also produce supporting quantitative systems, various proportioning systems and industrial automation systems, allowing customers to have a wider range of choices.
Business Type: Trading Company
Number of Employees: 16
Management System Certification: ISO 9001
International Commercial Terms: FOB, CIF, CFR
Terms of Payment: LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Average Lead Time: Peak season lead time: within 15 workdaysOff season lead time: within 15 workdays
Number of Foreign Trading Staff: 4~10 People
Export Year: 2005-12-01
Export Percentage: 51%~70%
Main Markets: North America, Europe, Southeast Asia/ Mideast
Export Mode: Have Own Export License
Factory Address: Room 402, Block B, Shuangzi Building, No.668, Bianzhu, Xinqiao Town, Songjiang District, Shanghai, China
R&D Capacity: OEM, Own Brand()
No. of R&D Staff: 5-10 People
No. of Production Lines: 3
Annual Output Value: US$2.5 Million - US$5 Million
