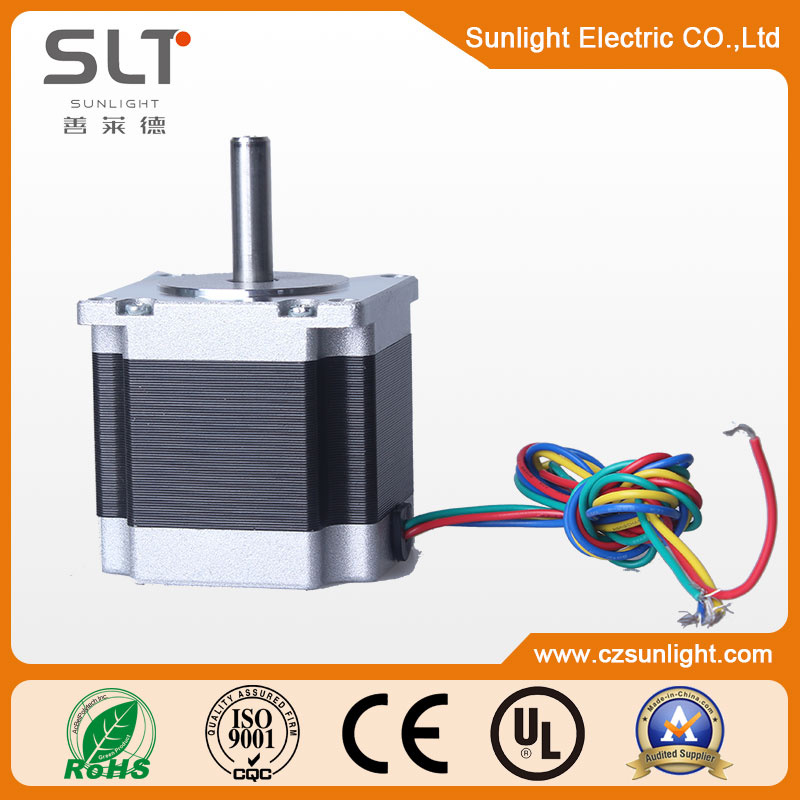

Enhanced Quality Electric Stepper Motor for Robot and ATM

Name: Enhanced Quality Electric Stepper Motor for Robot and ATM
Brand: china-manufacturer-directory.com
SKU: 762136065
Availability: InStock
Rating: 4.7 (33 reviews)

Supplier:	Changzhou Sunlight Electric Co., Ltd.
Price:	US $ 2-10/Piece
Min Order:	500/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	SLT57S01
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Step Angel Accuracy:	+/-5%
Resistance Accuracy:	+/-10%
Inductance Accuracy:	+/-20%
Temperature Rise:	80° C Max
Ambient Temperature:	-10oc-+50oc
Insulation Resistance:	100mmin.500 VDC;
Dielectric Strength:	500V AC for One Minute
Shaft Radial Play:	0.06max
Shaft Axial Play:	0.08max
Number Of Stator:	Three-Phase
Excitation Mode:	HB-Hybrid
Operate Mode:	The Three Single Phase
Type:	Magnetic-Electric
Brand:	Slt

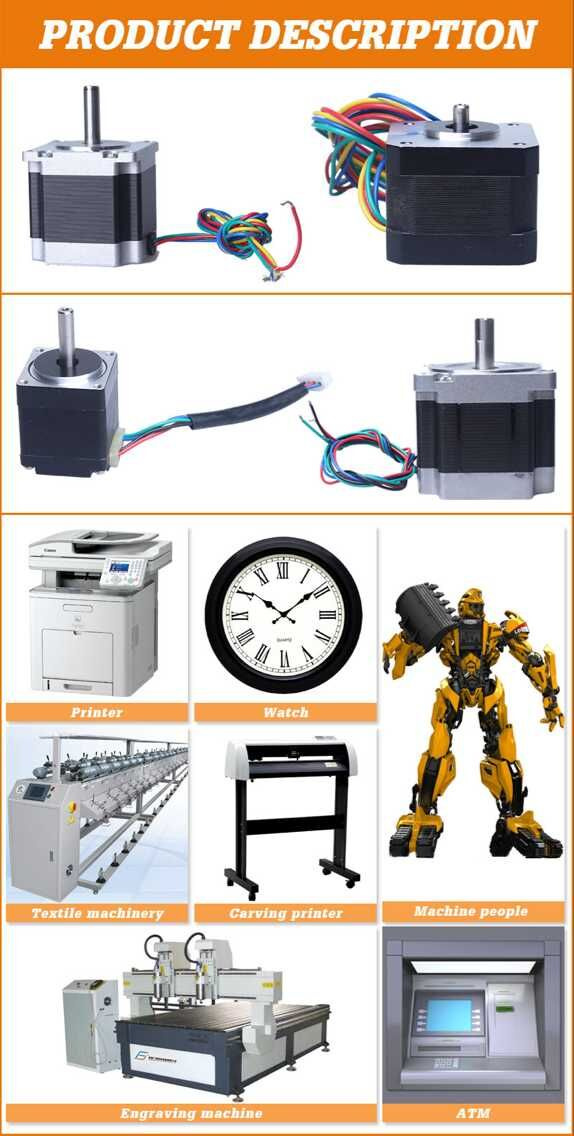

Product Description

product description:
1,Voltage:4V-48V
2,Current:0.5A-10A
3,Resistor:0.2Ω-40Ω
4,Max brake torque:2-300 Oz-in
5, Step Angel Accuracy:+/-5%
6,Inductance Accuracy:+/-10%
7,Temperature Rise:+/-20%

The specification of Precise Mini Electric Stepper Motor for Medical Instrument

model		single shaft	single shaft	single shaft	single shaft
		57H41M-1006A	57H41M-2006A	57H41M-2804A	57H56M-1006A
		double shaft	double shaft	double shaft	double shaft
		57H41M-1006B	57H41M-2006B	57H41M-2804B	57H56M-1006B
voltage	V	5.7	2.8	2	7.4
current	A	1	2	2.8	1
Phrase Resistance		5.7	1.4	0.7	7.4
Phrase Inductance	mH	8	2.2	2.2	17.5
Holding Torque	Oz-in	54.16	54.16	73.89	125
Holding Torque		6	6	4	6
Motor Weight	Kg	0.47	0.47	0.47	0.7
Motor Length	mm	41	41	41	56

Application of Precise Mini Electric Stepper Motor for Medical Instrument

a.Car (Fan,View mirror,wiper blade,car seat adjustment and so on.)
b.Home Appliance ( Electric cooker, Electric mop and other products.)Medical equipment and beauty products.
c.Office products (such as printer, scanner......)
d.Electric tools and garden tools.

Company Information
Since 1990
Specializing in Axial fan, Radiator Fan, Blower Fan, Motor Fan,DC Motor,Brushless Motor,Hub Motor,Auto Parts(Die casting and plastic parts). We can design the solutions for our clients, or produce the products by your requirements.
Our principle: quality is our life, technical is the basic, be honest and faithful to our partners. At the same time,
we pay more attention on team work and improving the staff skills.Customer requirements and the innovation of technology as our guide,
try to be the market leader of Motor business.

Packaging & Shipping
1,Inner packing(Waterproof plastic bag packing)+Outer packing(Carton packing)
2,Export wooden box packaging for products.
3,Other package as you required

Our Services
1. Free maintenance within 12 months guarantee.
2. Professional research and development team.
3. Technical support for installation.
4. Strict quality control system.
5. Customize production.
