Environmental Test Chamber for Temperature and Humidity

Name: Environmental Test Chamber for Temperature and Humidity
Brand: china-manufacturer-directory.com
SKU: 774509335
Availability: InStock
Rating: 5 (100 reviews)

Supplier:	Ai Si Li (China) Test Equipment Co., Ltd.
Price:	US $ 5000-23500/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	TH SERIES
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand:	Asli
Certificate:	CE.OEM.SGS
Low Temperature:	20 Dgree to -70 Dgree
High Temperature:	150 Degree(200dgree)
Inner Material:	304# Stainless Steel
Outer Material:	Stainless Steel
Cooling System:	Water Cooling or Air Cooling
Compressor:	French" Tecumseh" or Germany"Bizter"
Power:	380 V or 220V
Humidity Range:	20% to 98%
Type:	Heating Type

Product Description

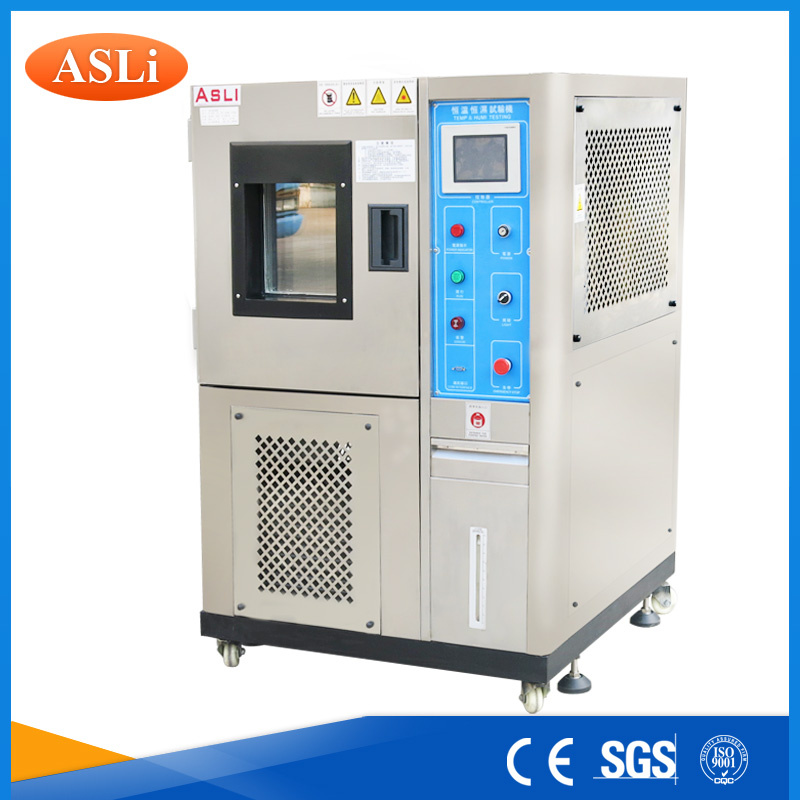

Environmental Test Chamber For Temperature and Humidity testing machine

Environmental Test Chamber For Temperature and Humidity Application:

Environmental Test Chamber For Temperature and Humidity is also called environment testing machine, used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.

Environmental Test Chamber For Temperature and Humidity Technical Parameters:

Model	TH-80(A~F)	TH-150(A~F)		TH-225(A~F)	TH-408(A~F)	TH-800(A~F)	TH-1000(A~F)
Internal Dimension WxHxD (mm)	400x500x400	500x600x500		600x750x500	600x850x800	1000x1000x800	1000x1000x1000
Internal Dimension WxHxD (mm)	950x1650x950	1050x1750x1050		1200x1900x1150	1200x1950x1350	1600x2000x1450	1600x2100x1450
Temperature Range	Low Temperature(A:25ºC B:0ºC C:-20ºC D:-40ºC E:-60ºC F:-70ºC) High Temperature 150ºC
Humidity Range	20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is optiona , need Dehumidifier)
Indication relolution/Distribution uniformity of temperature and humidity	0.1ºC; 0.1% R.H/±2.0ºC; ±3.0% R.H.
Control Accuracy of Temperature and Humidity	±0.5ºC; ±2.5% R.H.
Temperature Rising/ Falling Velocity	Temperature rising approx. 0.1~3.0ºC/min ; temperature falling approx. 0.1~1.5ºC/min; ( Falling Min.1.5ºC/min is optional)
Inner and Outer Material	Interior material is SUS 304# stainless steel, exterior is stainless steel or SEE cold-rolled steel with paint coated.
Insulation Material	Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials
Cooling System	Wind cooling or water cooling, (single segment compressor-40ºC, double segment compressor -70ºC)
Protection Devices	Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection
Optional Accessories	Inner door with operation hole , Recorder, Water Purifier, Dehumidifier
Compressor	French Tecumseh Brand, Germany Bizer Brand
Power	AC220V 1∮ 3 lines, 50/60HZ , AC380V 3∮ 5 lines , 50/60HZ
Approx. Weight (Kg)	150		180	250	320	400	450

Established in 1988, ASLi (China) Test Equipment Co., Ltd is specialized in manufacturing a variety of quality inspection instruments, testing equipments and other high-tech products which mainly include: Programmable constant Temperature & Humidity Test Chamber, High & Low Temperature Test Chamber, High & low Temperature Testers with Rapid Temperature Change, Walk-In humidity & temperature test chamber, Cool/Thermal shock test chamber, Salt spray chamber, aging tester, drying oven, xenon lights resistant to climate testing machine, UV resistant to climate testing machine, ozone aging test machine, sand and dust testing machine, tension tester, high and low temperature testing machine, servo carton compression tester, mechanical vibration tester and other quality testing instruments. Thanks to several decades of R&D efforts, the company has established itself as a leading provider of testing instruments of the industry, playing a crucial role in the research and development of high-quality and high-value products within the industry.

ASLi (China) Test Equipment Co., Ltd is authenticated by competent testing centers, including the National Measurement andTestingCenterand South China Center of Metrology. Famous for precision and reliability, these products have been extensively used within the industry, by research institutions, quality inspection agencies, and colleges and universities both at home and abroad, serving a worldwide customer base.

With unmatched quality advantage, a dynamic management team, professional customer services, superb manufacturing techniques and innovative research and development ideas, ASLi (China) Test Equipment Co., Ltd, supported by an international, standard and professional quality policy, is gradually becoming an international brand. Its products are manufactured in consistent with a number of world standards, IE, ISO, ASMT, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE, CSA and CEN.
