Product Specifications
| Prod Model: |
MCL-2100C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Enzyme Testhormone Analyser: |
Elisa Reader |
| Enzyme Test: |
Elisa Analyzer |
| Testhormone Analyser: |
Elisa Microplate Reader |
| Elisa Reader Price: |
Resolution: 0.001ABS |
| Type Of Microplate: |
Standard with 96-Well or Other Kind of Microplate |
| Light Source: |
Halogen Lamp, 8V/50W |
| Wavelengths: |
405, 450, 492, 630nm, 4 More Filters Optional |
| Reading Speed: |
5 Seconds for 96 Well Plate (Single Wavelength) |
| Band Width: |
8nm |
| Shaking Plate: |
Shaking Time and Speed Adjustab |
| Type: |
Measurement Type |
Product Description

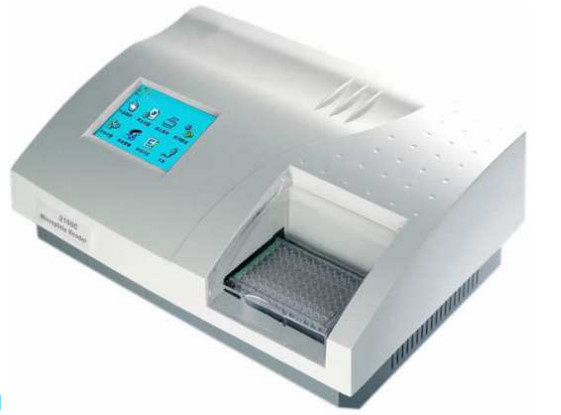

Enzyme Testhormone Analyser
Model: MCL-2100C
Technical Specifications for the Enzyme Testhormone Analyser:
Absorbance Range: 0 - 4.000Abs
Resolution: 0.001
Abs(displayed),0.0001Abs(calculated)
Accuracy: ±0.1% or ±0.005Abs
Light Source: Halogen lamp, 8V/50W
Wavelength Accuracy: ± 1nm
Band width: 8nm
Wavelengths: 405, 450, 492, 630nm, 4 more filters optional
Type of Micro-plate: Standard with 96-well or other kind of micro-plate and strip
Calculation Method: ABS, %ABS, Cut-Off, Single Standard, Curve,
Multi-Percent, Percent Log, Linear, Exponential, Power, 4PL Regression
Reading Speed: 5 seconds for 96 well plate (single wavelength)
Shaking Plate: Shaking time and speed adjustable
Memory: More than 100 programs, up to 100,000 test results
Printer: All printers compatible with Windows
Interface: RS-232, PSTN (optional)
Display: 6" LCD
Input: Touch panel or mouse
Output: External printer (optional)
Power Supply: AC 110V - 220V ± 10%, 50-60Hz
Net weight: 8Kg
Dimension L×W×H(mm) :460×330×200
General Descriptions for the Elisa analyzer:
1. Semi automatic
2. Easy Windows operation system with touch screen or mouse, large LCD display
3. 8-channel optical fiber system enables 5 secs' reading for the whole plate
4. Bichromatic measurement, calculation modes including ABS, Cut-off, Curve, Linear,
5. Log and Exponential regression
6. Random positive and negative control setting
7. Multi-assay enables up to 12 different assays on one plate
8. Large memory, up to 100 test protocols and 10,000 can be stored
9. Powerful QC function: Grubs, Westguard Multi-rule, Levey jennings plot (optional)
10. Plate shaking
11. Auto power-on self-check
12. Additional lamp saving
13. Multiform result output including patient comprehensive report
14. Ability to communicate with PC for data management(optional)
15. Easy maintenance
