Product Specifications
| Prod Model: |
EP-1528 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Nimi LAN Card: |
Long Range |
| Interface: |
USB |
| Transmission Rate: |
300Mbps |
| Application: |
Desktop |
| Type: |
Wireless |
Product Description

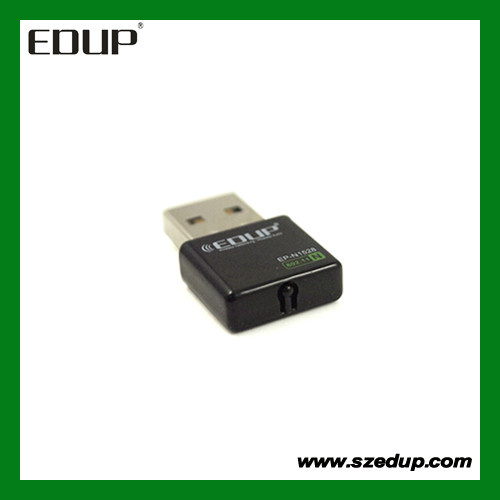

EDUP EP-MS1528 is a 802.11n USB Wireless adapter, it adopt the Realtek8191SU and transfer rate could be 300Mbps. This product can bed used to computer, PSP, media player and other device which need the wireless application. It can be settled to be an AP during installation so that can used to share the internet to other WiFi device. The WPS button makes the encryption to be very convenient. with the AUTO-RUN CD, even novice user can install it very easy and quickly.
Features
MIMO technology improves data throughput and range over existing 802.11b/g products
Add high-speed Wireless-N (draft 802.11n) Internet access to any USB enabled computer
Download music & movies, surf the internet and e-mail up to 5 times faster than previous generation wireless networks (Wireless 802.11g)Offers greater coverage than Wireless-G networks for internet access throughout your home or office
Works with older Wireless-G and Wireless-B networks
WiFi Protected Setup (WPS) simplifies setup and operation
Operating distance of up to 300 feet indoor, and up to 900 feet in open space
Data transfer rate of up to 300Mbps (downlink) and 300Mbps (uplink)
Supports USB 2.0 interface, backward compatible to USB 1.1 and 1.2
Enhanced WEP and WPA wireless security for protected Internet access
64-bit / 128-bit WEP (Wired Equivalent Privacy), TKIP, AES 2.400GHz ISM
Frequency Band Modulation Method: QPSK / BPSK / 16-QAM / 64-QAM
Supports Ad Hoc and Infrastructure modes
Supports IEEE 802.11e standard
Specifications
Wireless Standards IEEE 802.11n (draft)
IEEE 802.11g
IEEE 802.11b
Host Interface High speed USB2.0/1.1 interface
Wireless Signal Rates with Automatic Fallback 802.11n: Up to 300Mbps(Dynamic)
802.11g: Up to 54Mbps(Dynamic)
802.11b: Up to 11Mbps(Dynamic)
Frequency Range 2.4GHz-2.4835GHz
Wireless Transmit Power 18dBm(EIRP)
Modulation Type DBPSK, DQPSK, CCK, OFDM
Receiver Sensitivity 270M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@10% PER
Work Mode Ad-Hoc Infrastructure, soft AP
Wireless Security WPS, 64/128big WEP, WPA/WPAS, WPA-PSK/WPA2-PSK(TKIP/AES)
Support Operation System Windows XP/VISTA/Win7/Linux/Macintosh
Interface USB2.0 Hi-Speed connector
Antenna Type Internal Omni-directional PIFA Antenna
Environment Operating Temperature: 0oC to 40oC
Storage Temperature: -40oC to 70oC
Operating Humidity: 10% ~ 90% (Non Condensing)
Storage Humidity: 5% ~ 95% (Non Condensing)
Dimensions 20mm X 14.4mm X 6mm
Compliant FCC (USA)
CE Mark (Europe)
RoHS Compliant
Wi-Fi Compliant
Requirements
Operating System
Windows 2000, XP, Vista, Linux and MAC OS X
Available USB 2.0 port
Package Content
1 x Wireless-N USB 2.0 Adapter
1 x Driver CD
