Epic-N85 --3.5 Inch Quad Qore N2930 Fanless Mainboard, Bay Trail Fanless Motherboardsupport Win7/Win8 OS System

Epic-N85 --3.5 Inch Quad Qore N2930 Fanless Mainboard, Bay Trail Fanless Motherboardsupport Win7/Win8 OS System
Supplier: Huizhou Dayawan Fox Etech Limited
Price: Negotiable/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: FOB,EXW,CIF
contact supplier

Product Specifications

Prod Model: EPIC-N85
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Embedded Industrial Motherboard
Integrated Graphics: Integrated Graphics
Main Chipset: Intel
Maximum Memory Capacity: 8G
Structure: Mini-ITX
Memory: DDR3
SATA Interface: SATA2.0
Printed Circuit Board: Six Layer
Main Board Structure: Integrated
Audio Effects: Not HiFi

Product Description

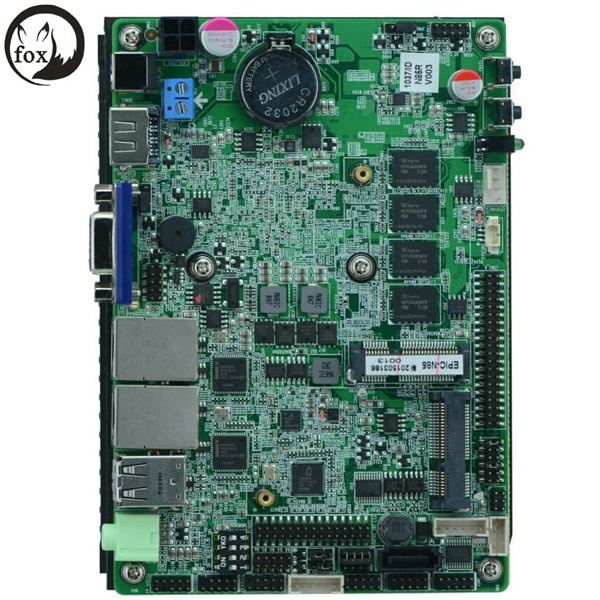

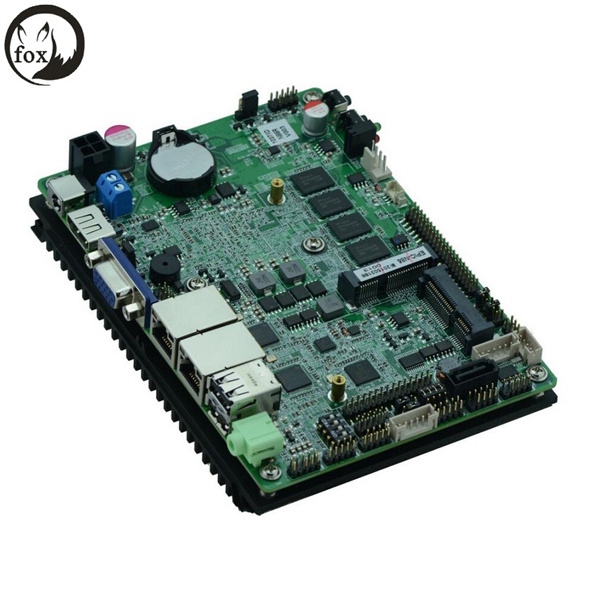

EPIC-N85 --3.5 Inch Quad Qore N2930 Fanless mainboard, Bay trail fanless motherboardsupport win7/win8 os system


Packaging & Delivery

Packaging Details:neutral carton box
Delivery Detail:1-3 days

Product Description

Model NO.EPIC-N85 VER:1.2
ProcessorIntel® N2930 Quad Core 22nm CPU 1.83GHz TDP 7.5W
 Compatible with Intel® Bay Trail -I/M/D series CPU
ChipsetBased on Intel® Bay trail SOC platform, CPU integrates
MemoryInboard DDR3 4GB memory, the max. Up to 8G
GraphicsIntel® HD Graphics
 VGA,HDMI , dual channel 24bit LVDS interface , achieve dual display by any combination
Expansion Slot1* MPCIE slot,support WIFI/3G module
 1* MSATA,support SSD,transfer rate up to 6Gbps
Ethernet2* Intel® 82583V Gigabit LAN controllers, supports Wake-On-LAN /PXE
Storage1* SATA port
 1* JSATA4 pin connector (alternative to SATA1, default is SATA1)
AudioALC662 6 channel HD controller, support MIC / Line-out

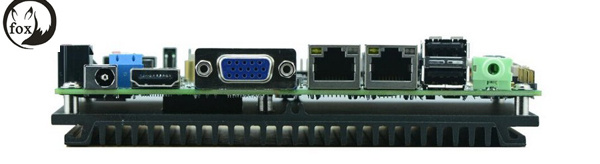

Rear I/O Connector1* DC_JACK input , 8~36V
1* HDMI1
1* VGA1connector
2* RJ-45 LAN connector
2* USB 2.0 connector
1* Line Out(Green)
1* POWER switch
1* RESET switch
1* LED1(POWERLED/HDDLED)
1* SIM slot
Internal  I/O Connector1* LVDS connector 2*15pin, support dual channel 24bit LCD
 1* JVGA1 connector ,using the same signal to DB15 , 12pin
 6* RS232 COM port ,COM2 supports RS422 / 485
 1* TX-RXCOM1(JP12) RS422 / 485connector  2*3pin
 4* USB 2.0connector
 1* PS/2  KB/MS connector 6Pin
 1* FPW1 Front panel buttons and indicator connector2*5pin
 1* AUDIO connector
 1* PWROUT1 HDD connector
 1* LVDS INVERTER
Fan  Connector1* CPUFAN(4pin) and SYSFAN(3pin) connector
GPIOSupport GPIO 4-way input/output
BIOSAMI 32MB Flash ROM
Watchdog TimerHardware reset ,Programmable L256 , 0 ~ 255 sec/min
Power Typesupport DC 8V~36V wide range voltage input
Operating Temp.-10ºC~60ºC
No-Operating Temp.-20ºC~70ºC
Humidity5-95% (relative humidity; non-condensing)
Dimension148mm x 102mm
