Product Specifications
| Prod Model: |
G10/FR4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sheet Size: |
1020 X 1220mm; 1220*2440mm |
| Thickness Range: |
0.1mm~200mm |
| Min. Order Quantity: |
500 Kgs in a Lot |
| Packaging Details: |
500-1000kgs Per Pallet or as Required |
| Lead Time: |
7-15 Days After Confirmed |
| Application: |
Switch Baseplate |
| Type: |
Insulation Sheet |
| Chemistry: |
Hybrid Insulation |
| Material: |
Fiberglass |
| Thermal Rating: |
B 130 |
| Maximum Voltage: |
20KV~100KV |
| Certification: |
RoHS |
| Color: |
Natural Green |
| Brand: |
Nova |
Product Description

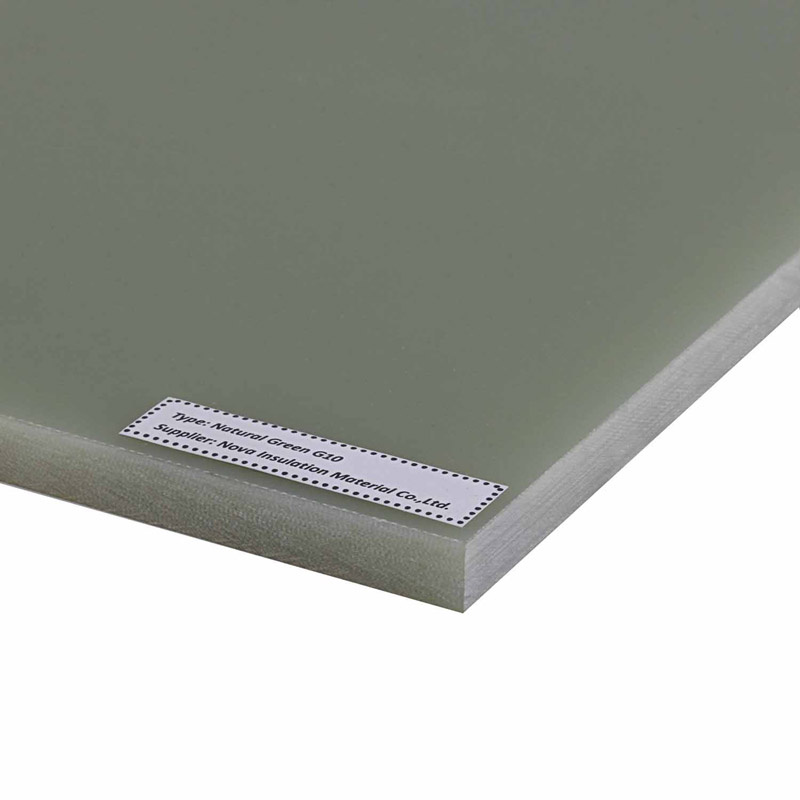

G10/FR4 is composed of electrical alkali-free glass woven fabric base impregnated with an epoxy resin binder under pressure and heat.
Applications:
Widely used as insulating structural parts in electrical & mechanical equipments, such as generators, motors, transformers, terminal boards, PC boards, washers, and many others.
Advantages:
*High mechanical & electrical strength
*Excellent rigidity & dimensional stability
*Good dielectric properties
*Low water absorption
*Flame resistance (Type: FR-4)
*Tighter thickness tolerance
*Flat and straight panel
*Smooth and clean surface.
*Easy to machine
*Temperature Index: 135 Degree Celsius
Specifications:
1) Grade: G10/FR4
2) Color: Natural Green; Yellow; Black
3) Thickness range: 0.1mm~200mm
4) Sheet size: 915*1220mm; 1020*1220mm;
1020*2040mm; 1220*2440mm;
5)Min. Order Quantity: 500 kgs in a lot
NEMA Grade: G-10, FR-4
(IEC Grade: EPGC201, EPGC202)
(DIN7735 Grade: Hgw2372, Hgw2372.1)
(ISO1642 Grade: EPGC1, EPGC2)
Nova specializes in manufacturing & machining Electrical Insulation Laminates since 2001.
We offer high quality materials & machined parts to a variety of insulating applications, especially to Mechanical, Electrical, PCBs, Surfboard and Knifehand Industries.
Nova supplies the following products:
1) Epoxy Glass Fabric Laminated sheets (G10/G11/FR4/FR5)
2) Phenolic Paper Laminated sheets (X/XX/XP/XPC)
3) Phenolic Cotton Cloth Laminated sheets (C/CE/L/LE)
4) Others: Colored G10, Anti-static G10 ESD, Phenolic Rods/Tubes, Epoxy Rods/Tubes, G7 Glass Reinforced Silicone, and many others.
Custom machining, including cutting, sanding, routing, drilling, turning, slotting, and assembling, are welcome.
Just send us inquiries or drawings today, we appreciate an opportunity to service your insulating needs.
