Product Specifications
| Prod Model: |
new machine |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automation: |
Automatic |
| Computerized: |
Computerized |
| Certification: |
SGS |
| Principle: |
High-Speed Impeller Type |

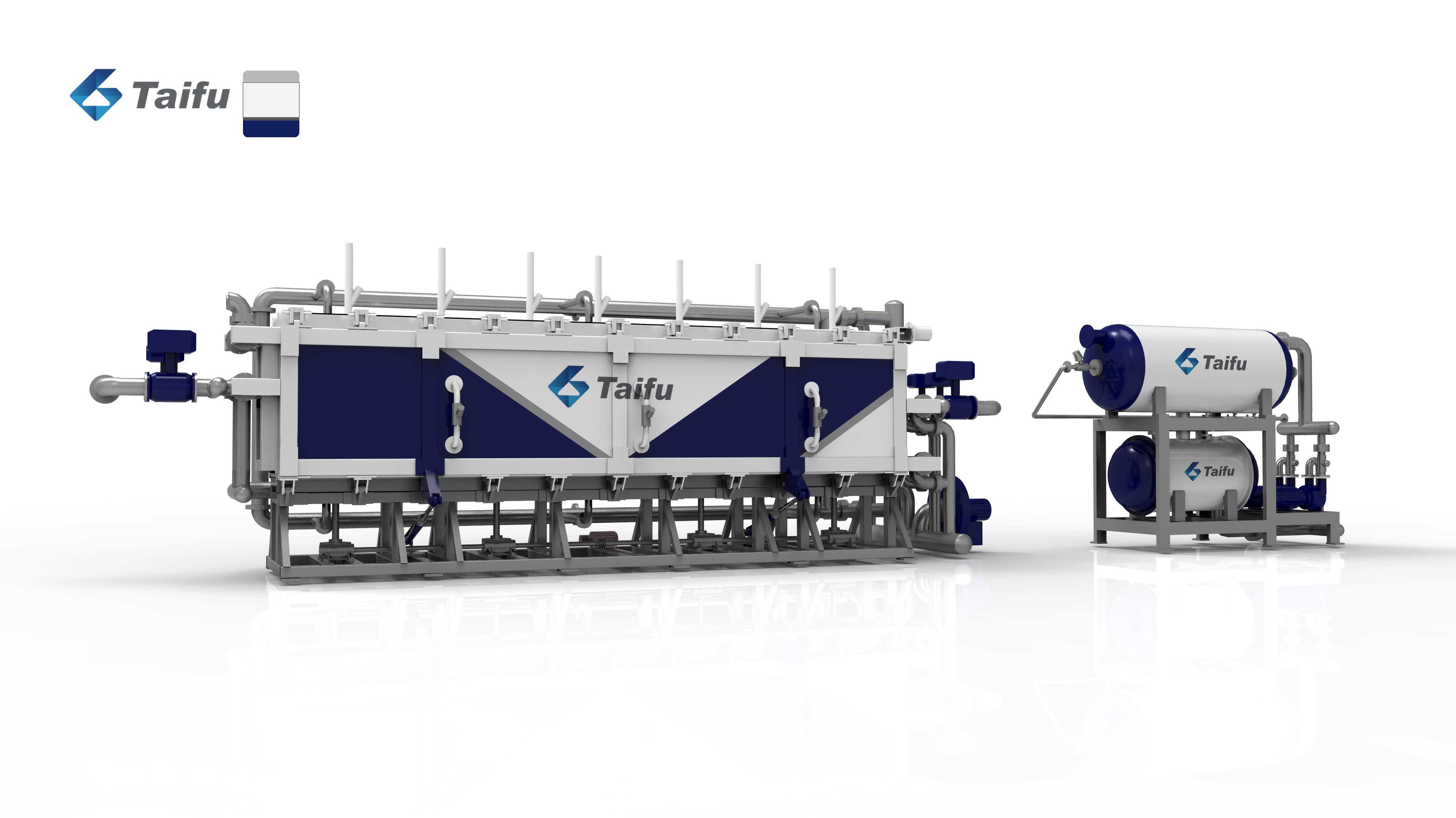

Product Description
Advantages:
1. With the use of PLC Controller (Programmable Logic Controller) and Touch Screen, the looping process of opening and closing of the moulds, feeding, heating, heat preservation, cooling, demoulding and releasing the final product from the machine will be accomplished automatically;
2. The machine is welded from high-quality steel, through heat treatment, strong and durable, ensuring high strength of the machine and bearing the expansion force of the high-density block;
3, The machine adopts advanced EPS heat penetration technique and pipeline system with unique design construction, which improving productivity and making this machine to lead in domestic and worldwide EPS industry;
4. The machine applies hydraulic pressure transmission, hydraulic ingot stripping, which makes machine running steadily and locking tightly;
5. High production efficiency. The production cycle of each plate is 4-8min. Automatic pneumatic charging shorten the production time;
6, The height of the mould can be adjusted, 800mm-1220mm
7. Most components used in the machine are world famous brand to ensure the machine running smoothly and maxmizing productivity.
|
Item |
Unit |
TFB200/DZ |
TFB300/DZ |
TFB400/DZ |
TFB600/DZ |
TFB800/DZ |
|
Mould Cavity Size |
mm |
2040*(1240-
940)*630 |
3060*(1240-
940)*630 |
4000*(1240-
940)*630 |
6100*(1240-
940)*630 |
8120*(1240-
940)*630 |
|
Block Size |
mm |
2000*(1200-
900)*600 |
2000*(1200-
900)*600 |
2000*(1200-
900)*600 |
2000*(1200-
900)*600 |
2000*(1200-
900)*600 |
|
Steam |
Entry |
mm |
DN100 |
DN100 |
DN150 |
DN80 |
DN80 |
|
Consumption |
Kg/cycle |
25-45 |
45-65 |
60-85 |
95-120 |
115-160 |
|
Pressure |
MPa |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
|
Compressed Air |
Entry |
mm |
DN40 |
DN65 |
DN80 |
DN80 |
DN80 |
|
Consumption |
m 3 /cycle |
1.5-2 |
1.5-2.5 |
1.8-2.5 |
2-3 |
2.5-3 |
|
Pressure |
MPa |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
|
Cooling Water |
Entry |
mm |
DN40 |
DN40 |
DN40 |
DN40 |
DN40 |
|
Consumption |
m 3 /cycle |
0.4 |
0.6 |
0.8 |
1 |
1.2 |
|
Pressure |
MPa |
0.2-0.4 |
0.2-0.4 |
0.2-0.4 |
0.2-0.4 |
0.2-0.4 |
|
Drainage |
Vacuum Drain |
mm |
DN100 |
DN100 |
DN150 |
DN150 |
DN150 |
|
Steam Vent |
mm |
DN100 |
DN150 |
DN200 |
DN200 |
DN200 |
|
Condensate |
mm |
DN100 |
DN100 |
DN100 |
DN100 |
DN100 |
|
Capacity 15Kg/m 3 |
min/cycle |
4 |
6 |
7 |
8 |
8 |
|
Connected Load |
Kw |
19/75 |
23.75 |
24.5 |
32.25 |
40.25 |
Overall Dimension
(L*W*H) |
mm |
5700*4000*
2800 |
7200*4500*
3000 |
11000*4500*
3000 |
126000*4000*
3100 |
15700*4600*
3500 |
|
Machine Weight |
Kg |
8000 |
9500 |
15000 |
18000 |
21000 |
|
Room Hight Required |
mm |
6000 |
6000 |
6000 |
6000 |
6000 |
Zhejiang Ruinuo Taifu Technology Co., Ltd. is a professional EPS machinery manufacturer. Our company has two manufacturing bases with modern plants covering a total area morethan20, 000 square meters. The newly-built factory in Tonglu is equipped with a series of processing equipment such as gantry milling machines, and CNC, achining center, an electrical testing workshop, and assemblytesting lines, and a test plant for EPS production lines will also be established gradually, so asto ensure advanced production technology with high professional service standard, and we still consistently to improve products' quality and produce innovative products. Taking into account the characteristics of foam machinery industry and the specific operating environment, company's moulding machines, pre-expander, block moulding machine and other products have prominent advantages of reasonable design, simply operation, high automation, low power consumption and high efficiency.
Company is committed to producing high--quality EPS foam plastic machinery, importing international advanced technology and accessories, to further improve products' stability and precision. We have exported products to Southeast Asia, Middle East and other European countries. Meanwhile, to further expand the domestic market and enhance the company's high level service, company has set up offices at home and abroad. With company's core norm of "customer first, quality winning", all Taifu staff is working hard to improve our products and service. We sincerely welcome domestic and overseas customers to visit us.
