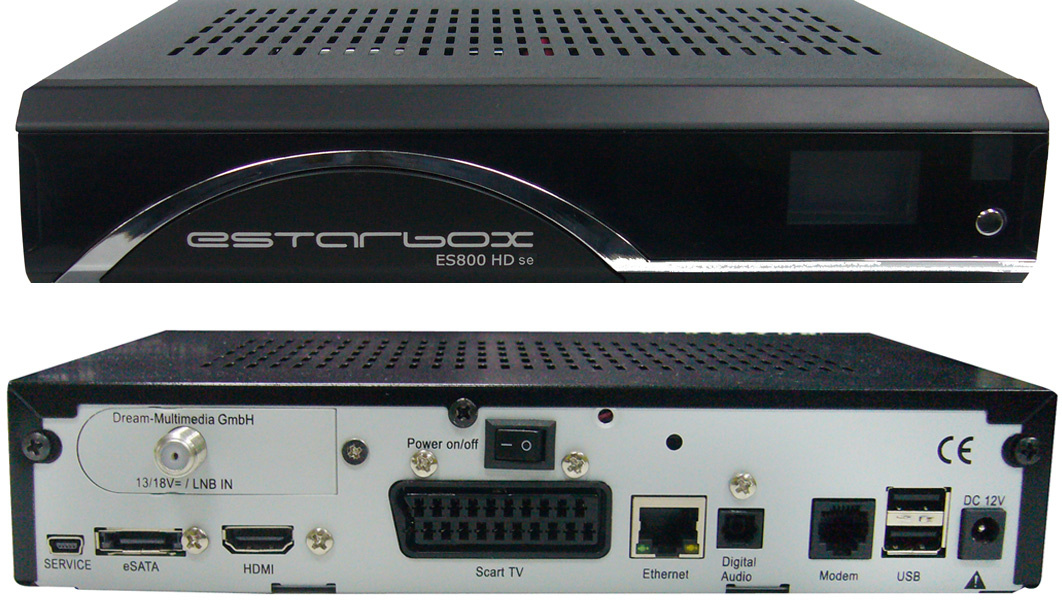

Model: ESTAR800HD
300 MHz MIPS Processor
Linux Operating System
OLED Display
MPEG2 / H. 264 Hardware decoding
Tuner: DVBS, optional: DVBC, DVBT
Tuner Module, Plug&Play
1 x SmartcardReader
V. 24/RS232 Interface
10/100Mbit Ethernet Interface
1 x Scart (RGB, FBAS or SVideo)
DVI
2 x USB 2.0
Analog modem
S/PDIF Interface for digital bit stream out (AC3)
64 MByte Flash, 256 MByte RAM
SATA
For use either as internal SATA HDD 2, 5"
Or to use for extern eSATA
Unlimited channel lists for TV/Radio
Channelchange time < 1 second
Automatic service scan
Directly bouquetlists
EPG (electronic program guide)
Multiple LNBSwitching control (supports DiSEqC)
OSD in many languages and skinsupport
Videotext Decoder
Extern 12V power supply
DreamBox DM800 technical data
DBSTuner mit DVBS2:
Frequency Range 950...2150 MHz
Demodulation DVBS (QPSK); DVBS2 (8PSK, QPSK)
Symbol rate DVBS: 2...45 Mbaud/s, SCPC/ MCPC
DVBS2: 10 31 Mbaud/s (8PSK), 10 30 Mbaud/s (QPSK)
Video decoder:
Video Compression MPEG2 and MPEG1 compatible, H. 246
Video Formats 4: 3 / 16: 9
Letterbox for 4: 3 TVDevice
Audio decoder:
Audiokompression MPEG1 & MPEG2 Layer I and II, MP3
Audio Mode Dual (main/sub), Stereo
Frequency: 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz
Output analog:
Output Level L/R 0, 5 Vss on 600 Ohm
THD > 60 dB (1 kHz)
Crosstalk < 65 dB
Output digital:
Output Level 0, 5 Vss on 75 Ohm
Sampled Data Filtering 32 kHz, 44.1 kHz, 48 kHz
S/PDIFOutput optical, Toslink
Ausgang Video:
Ausgangspegel FBAS 1 Vss +/ 0.3 dB an 75 Ohm
Video parameter:
Input Level FBAS 1 Vss +/ 0.3 dB on 75 Ohm
Teletext filter in conformity with ETS 300 472 Standard
TVScart:
Output: FBAS, RGB, SVideo
Serielle Interface RS 232
Typ RS232 bidirectional
Bitrate 115, 2 kBit/s max.
Plug Connector SUBD9
Function: Update of Firmware
Ethernet:
10/100 MBit compatible interface
Function: Update of Firmware
Analoge modem:
Analoge modem for Internet connection
SATA Interface:
For use either as internal HDD 2, 5" or eSATAor internal 2, 5" HDD
USB
2 x USB 2.0 Host
LNB power and polarisation per tuner:
LNB Current 500mA max.; Shortcircuitprotected
LNB Voltage vertical < 14V no load, > 11, 5V at 400mA
LNB Voltage horizontal < 20V no load, > 17, 3V at 400mA
Count of active satellite position:
DiSEqC 1.0/1.2 SAT POSITION / SAT OPTION
DiSEqC Rotor Control
Power consumption: < 15W at 12V
External PSU
Input:
110240V AC / 5060Hz / 0, 6A
Output:
12V = / 3, 0A
Physical specification:
Ambient Temperature +15C...+35C
Humidity < 80%
Size (W x D x H): 195 mm x 140 mm x 40 mm
Weight: 1, 8 kg without HDD.
