Product Specifications
| Prod Model: |
H5007NL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

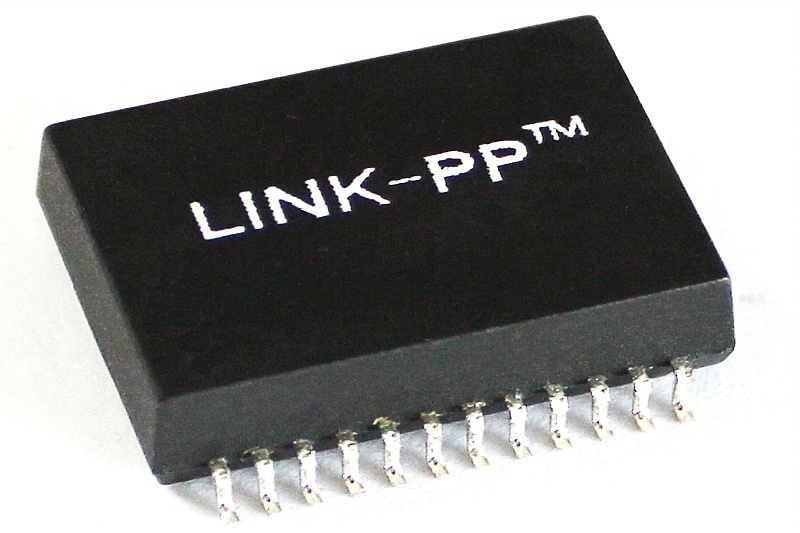

10 / 100 / 1000BASE-TX Quad Port LAN Transformer With 48 Pins
Description:
Quad Port Gigabit ETHERNET MAGNETIC TRANSFORMERS
ApplicationLAN ETHERNET(PoE&NON PoE)
AutomDXYES
CommentRoHS Compliant LPXXXXNL
Configuration RXT, C
Configuration TXT, C
ConstructionTRANSFER MOLD
Cores Per Port4
Number of PortsQUAD
PCBNO PCB
PackageSMT
Package Height (Inches)0.225 or other
Package Height (mm)5.715 or other
Package Length (Inches)1.12 or other
Package Length (mm)28.448 or other
Package Width (Inches)0.63 or other
Package Width (mm)16.002 or other
RoHS CompliantYES-RoHS-6
Speed10/100/1000BASE-TX
Temperature0 TO 70/-40 To +85
Turns Ratio RX1CT: 1CT
Turns Ratio TX1CT: 1CT
Main P/NLP1102NL, etc
Electrical Specifications(25):
1. Turns Ratio50kHz, 0.5V
Chip side: Line side=1CT: 1CT+_2%
2. Inductance(Ls)100kHz, 0.1V, 12mA DC Bias:
Chip side: 350uH Min
3. Insertion Loss1-100MHz: -1.4dB Max
4. Return Loss1-30MHz: -16dB Min
40MHz: -14.4dB Min
50MHz: -13.1dB Min
60-80MHz: -12dB Min
100MHz: -10dB Min
5. Differential to Common Mode Rejection:
30MHz: -45dB Min
60MHz: -40dB Min
100MHz: -35dB Min
6. Crosstalk30MHz: -40dB Min
60MHz: -35dB Min
100MHz: -30dB Min
7. Hi-Pot: 1500Vrms Min
Applications:
Used for networking and communication equipments such as HUB, PC card,
Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
Competitive Advantage:
16 years production experience,
1100 staff,
100% test
Flexible delivery time
Link-PP Int'l Technology Co., Limited is a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000 and UL, owns advanced manufacturing facilities and test equipments imported from abroad.Established in 1997, we have around 500 staff at present.With the abundant productive capacity of 3000K per month, we are able to delivery the goods within the short time.Moreover, we can provide the professional complete solution for magnetic components and strong technical support as well.Our products are widely used in networking and communication equipments such as HUB, PC card, Switch, Route, PC Mainboard, SDH, PDH, IP Phone, xDSL modem.
Main Products
10/100/1000M LAN pulse transformer and filter
RJ45 connector with 10/100/1000M magnetic
T1/E1, T3/DS3/E3/STS-1 interface line transformer
ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
