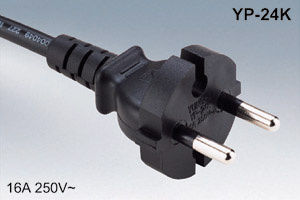

Euro 2 Round Pins 16A 250V Plug Without Earthing Contact
Product Specifications
| Prod Model: |
YSP-24 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connector Standard: |
Cee7/16 Europeand Also Known as En 50075 Plug Stan |
| Maximum Current Rating: |
16A |
| Maximum Voltage: |
250V |
| Number Of Poles And Wires: |
2 Poles, 2 Wires |
| Available Wire Thickness: |
0.75mm² |
| Outer Mold Material: |
50p PVC |
| Blade Material: |
Nickel Coated Brass |
| Flamability Rating: |
UL 94V-0 |
| Color: |
Black Is Standard But Any Color Available |
| Environmental Certifications: |
RoHS, Reach |
| Standard: |
Swiss Standard |
| Function: |
Audio Plug |
| Certification: |
Cee7 Standard Xvi (Cee 7/16) "Europlug" |
| Shape: |
BP2 |
Product Description
cee7/7 european schuko three prong right angle power cord plug with vde and 12 other certifications. rated up to 16a 250v. our din vde 0620-1 european three prong power cord plugs carry all the european country approvals including ove, cebec, demko, fimko, lcie, vde, imq, kema, nemko, semko, esti, and asta certified. our european power cord products are fully molded with a low profile ergonomic design and rohs and reach compliant.
| country | electricity | |
| austria | 220v | 50hz |
| belgium | 220v | 50hz |
| czech rep. | 220v | 50hz |
| denmark | 220v | 50hz |
| estonia | 220v | 50hz |
| finland | 220v | 50hz |
| france | 220v | 50hz |
| germany | 220v | 50hz |
| greece | 220v | 50hz |
| hungary | 220v | 50hz |
| luxembourg | 220v | 50hz |
| netherlands | 220v | 50hz |
| norway | 220v | 50hz |
| poland | 220v | 50hz |
| portugal | 220v | 50hz |
| slovak rep. | 220v | 50hz |
| spain | 220v | 50hz |
| sweden | 220v | 50hz |
| turkey | 220v | 50hz |
| russia | 220v | 50hz |
| ukraine | 220v | 50hz |
| syria | 220v | 50hz |
| burkina faso | 220v | 50hz |
| cameroon | 220v | 50hz |
| chad | 220-250v | 50hz |
| equatorial guinea | 220v | 50hz |
| senegal | 220v | 50hz |
| | | |
YINGSHENG IMPORT&EXPORT CO; Ltd registered in Hon g Kong, 2013. Sales for its products(Power Plug Insert, RCA Plug, Phone Plug) made in mainland China, which had 11 years' professional production experience.
Our Electronic Components Factory is a leading manufacturer of power plug insert, Audio & Video plug and other Connectors & Terminals. The plug inserts are featured by seamless hollow brass pins. And we are the unique manufactory whose hollow plug inserts passed VDE certifications in the world. Hollow-pin plug inserts are also strictly compliant with Lead-free(Pb<100ppm), RoHS, REACH, PAHs and Phthalate, etc. We meet many international plugs approval from Germany (VDE), Turkey (TSE), France (NF), Norway (Nemko), Denmark (Demko), Finland (Fimko), Sweden (Semko), Netherlands (Kema), Belgium (CEBEC), Austria(OVE), Italy(IMQ), Switzerland (SEV), South-Africa (SABS), SII (Israel).
With good technical support and management, the company also has fine facilities. For instance, the inner testing laboratory for testing purpose is equipped with direct-reading spectrometers, tensile testing machines, coordinate measuring machine, metallography automatic analysis machine, roundness measuring instrument and so on, guaranteeing the quality of every aspects of the casting procedure from the raw materials to the end products., advanced model design, Auto-CAD, PRO-E software and the ISO 9001: 2008 international quality management all greatly contribute to high quality and competitive price.
Keep any customer order in short delivery time.
We sincerely would like to build cooperation with customers relying on our strong teams, advanced equipments, good quality products and competitive prices.
