Price: | US $ 25000-35000set |
---|---|
Trade Terms: | FOB,CFR,CIF |
Min Order: | 1set |
Pay Type: | L/C,T/T |

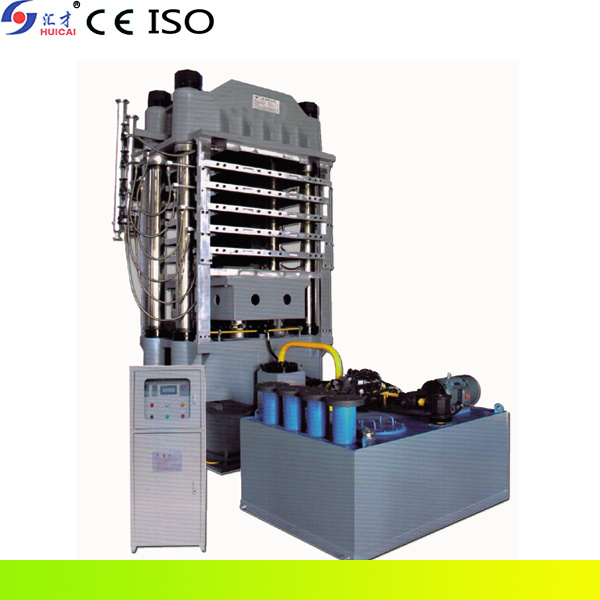

EVA Pocyform Planeheating Machines
main USES the plunger by cold hard surface hardness for HR - 70, the product has little pressure, temperature and reliable performance, open mold speed, etc. Used in such slippers, EVA foaming plastics shoes materials etc.
The structure of the main machine is made from cast steel.The plunger is made from chilled cast iron with surface hardness,HR-70.The product has the superority of less tempatature difference,reliable in insulation,and automaic pressure compensation during vulcanization and fast foamed slippers,and materirals for shoes and other rubber and plastic products.
Type | XLBQ 1200*1200*4 | XLBQ 1400*1500*6 | XLBQ 1500*1500*6 |
(MN) Total Pressure | 5.00 | 8.00 | 10.00 |
Plate size(mm) | 1200*1200 | 1400*1500 | 1500*1500 |
Plate Clearance(mm) | 150 | 150 | 150 |
Working stroke | 500 | 800 | 800 |
Plate Prwssure(Mpa) | 3.5 | 3.8 | 4.5 |
(KW) Main Motor Power(kw) | 18.5 | 26 | 33 |
Overall dimensions(mm) | 2400*2100*3200 | 2650*2400*3600 | 2750*2400*3600 |
Weiht (kg) | 22000 | 38000 | 48000 |
Prod Model: | XLBQ 1200*1200*4 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Model: | Xlbq 1200*1200*4 |
Nominal Molding Power (Mn): | 5.00 |
Working Layers: | 4 |
Plate Size(Mm): | 1200*1200 |
Piston Stroke (Mm): | 500 |
Unit Area Pressure Of Hot Plate (Mpa): | 3.5 |
Main Motor Power (Kw): | 18.5 |
Plate Clearance (Mm): | 150 |
Overall Dimensions(Mm): | 2400*2100*3200 |
Weight (Kg): | 22000 |
Certification: | CE, ISO |
