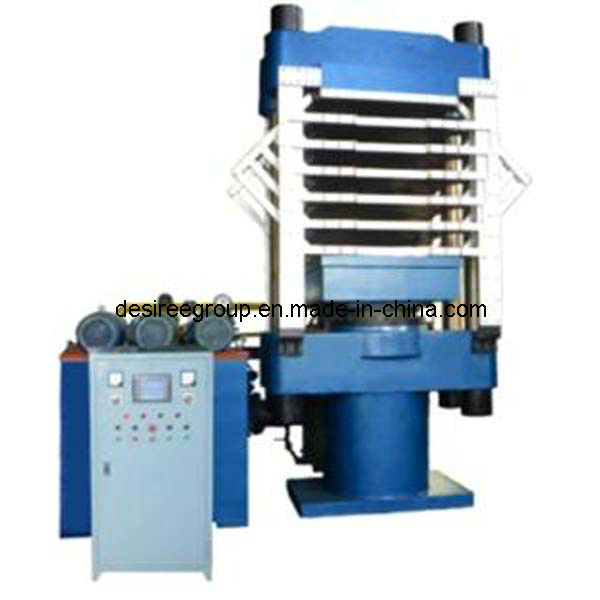

EVA Slipper Sheet Making Machine

Name: EVA Slipper Sheet Making Machine
Brand: China-Manufacturer-Directory.com
SKU: 688518702
Availability: InStock
Rating: 4.3 (72 reviews)

Supplier:	Qingdao Desiree Group Rubber Machinery Co., Ltd.
Price:	US $ 55000-156000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF

Product Specifications

Prod Model:	XLB-Q140015006
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name:	EVA Slipper Sheet Making Machine
Total Pressure:	8mn
Plate Size:	1400*1500mm
Plate Clearance:	150mm
Working Layer Quantity:	6
Piston Stroke:	800mm
Plate Pressure:	3.8mpa
Motor Power:	26kw
Control:	Automatic
Type:	General Rubber Machinery
Certification:	CE, ISO

Product Description

Making Machine / EVA Slipper Sheet Making Machine

Function:

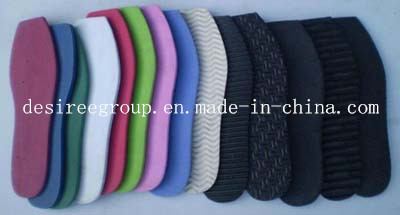

Mainly used for producing of foaming slippers, foaming sheet, thermal insulation material, sports protective material, life jacket, sponge and other rubber products.

Features:

1. Main frame uses casting steel. Piston adopts chilled cast iron, with surface hardness HR-70.

2. With large clamping force, high open & close speed, and high production efficiency.

3. Its structure is simple and application is wide. It is easy to be operated.

Our Services

1. One year warranty.
2. Lifetime technical support.
3. Engineers available to service machinery overseas.

4. Any problem, we will give feedback within 24hours.

WE CAN DESIGN AND MANUFACTURE NON-STANDARD MODELS AS PER THE REQUIREMENT OF CUSTOMERS.

Welcome to make a field inspection of our factory.
We are always pleased to serve you at any time.

Making Machine Model No.	XLB-Q120012004	XLB-Q140015006	XLB-Q150015006
Total pressure(MN)	5	8	10
Plate size(mm)	1200*1200	1400*1500	1500*1500
Plate clearance (mm)	150	150	150
Working Layer Quantity	4	6	6
Piston stroke(mm)	500	800	800
Plate pressure(MPa)	3.4	3.8	4.5
Motor power(kW)	18.5	26	33
Overall dimension(LWH)(mm)	240021003200	265024003600	275024003600
Weight(kg)	about 22000	about 38000	about 48000
