Product Specifications
| Prod Model: |
FT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Fan: |
220V 380V |
| Certification: |
CCC |
| Electric Current Type: |
AC |
Product Description
Features:

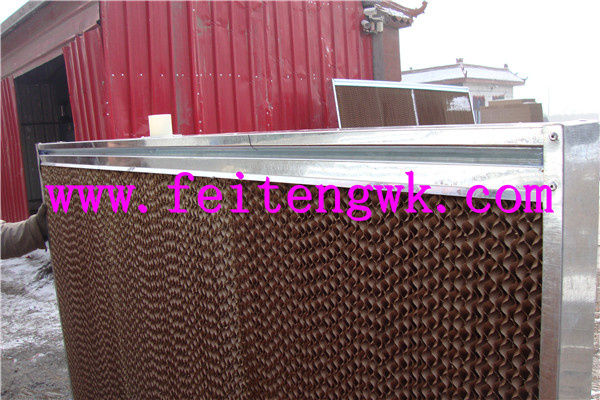

Evaporative cooling pad Features:
1) Corrugated paper with the spatial crossing linking technology, high absorbability, high water resistant, anti-mildew and long service life.
2) Large evaporation area, cooling efficiency as high as 80%.
3) The product absorbs water naturally, with fast speed of pervasion and lasting effectiveness. One drop of water can diffuse within 4~5 seconds. The natural absorption height is 60~70mm/5minutes, as 200mm/1.5 hours, having reached international standard.
4) The product does not contain phenol and other chemicals which is irritant to the skin. It is safe, energy saving, environmental protective, economic and durable.
5) Galvanized sheet / aluminum panel/stainless steel optional.
Working Principle
When the water cross the cooling pad, the water become water film on the surface of the pad. The water film exchange heat with the passing air and evaporate into the air. As the principle of evaporative cooling, controlling the temperature and humidity through modifying humidifying volume and the ventilation size.
Pad 7090
Pad 5090
H (mm)
1500, 1800, 2000
1500, 1800, 2000
W (mm)
600, 300
600, 300
D (mm)
100, 150, 200, 300
100, 150, 200, 300
h (mm)
7
5
α (*)
45
45
β (*)
45
45
