Excavator

Name: Excavator
Brand: china-manufacturer-directory.com
SKU: 691742642
Availability: InStock
Rating: 4.6 (71 reviews)

Supplier:	Jinan Mutual Benefits Commercial & Trading Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	XE370CA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
After-Sales Service Provided:	Engineers
Export Market:	Global
Overall Length:	11246mm
Overall Width:	3190mm
Overall Height:	3390mm
Type:	Crawler Excavator
Condition:	New
Certification:	CE

Product Description

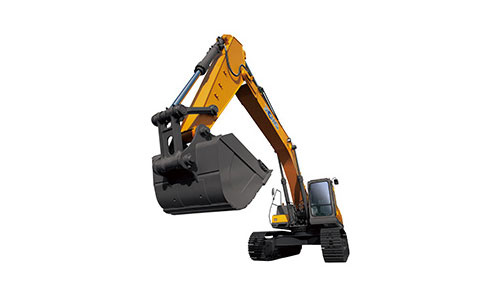

Excavator XE370CA
Operating weight: 36600g
Standard bucket capacity: 1.4-1.8m3
Cylinder amount: 6

XE370CA
Model		Unit	XE370CA
Operating weight		kg	36600
Standard bucket capacity		m³	1.4~1.8
Engine	Engine Model	/	ISUZU AA-6HK1XQP
	Direct injection	/	√
	Four strokes	/	√
	Water cooling	/	√
	Turbo charged	/	√
	Air to air intercooler	/	√
	No. of cylinders	/	6
	Rated power/speed	kw/rpm	184/2000
	Max. torque/speed	N.m	872.8/2000
	Displacement	L	7.79
The main performance	Travel speed	km/h	5.4/3.2
	Swing speed	r/min	9.7
	Max. gradeability	/	≥35
	Ground pressure	kPa	66.6
	Max.Bucket digging force	kN	242
	Max.arm crowd force	kN	183
	Max.traction force	kN	285
Hydraulic system	Main pump	/	2 Plunger pump
	Rate flow of main pump	L/min	2×280
	Max pressure of prime relief valve	MPa	31.5/34.3
	Max pressure of travel system	MPa	34.3
	Max pressure of swing system	MPa	27.5
	Max pressure of pilot system	MPa	3.9
Oil capacity	Fuel tank capacity	L	630
	Hydraulic tank capacity	L	320
	Engine lubrication	L	28
Overall dimensions	A Overall length	mm	11246
	B Overall width	mm	3190
	C Overall height	mm	3350
	D Overall width of upperstructure	mm	2960
	E Track length	mm	5035
	F Overall width of undercarriage	mm	3190
	G Crawer width	mm	600
	H Track length on ground	mm	4040
	I Crawer gauge	mm	2590
	J Clearance under counter weight	mm	1197
	K Ground clearance	mm	500
	L Min.tail swing radius	mm	3450
Working range	A Max. digging height	mm	10423
	B Max. dumping height	mm	7275
	C Max. digging depth	mm	7139
	D 8inch horizonal digging depth	mm	6954
	E Max. vertical wall digging depth	mm	6545
	F Max. digging reach	mm	10887
	G Min. swing radius	mm	4424
	Angle of arm deflection	Degree

Our company supplies different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
