Nanjing Tianxingtong Electronic Technology Co., Ltd. >> Excellent Performance Power Meter

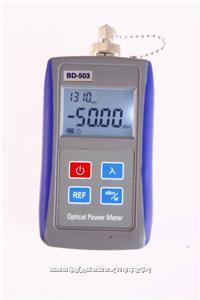

Excellent Performance Power Meter

Name: Excellent Performance Power Meter
Brand: China-Manufacturer-Directory.com
SKU: 722814525
Availability: InStock
Rating: 4.6 (73 reviews)

Supplier:	Nanjing Tianxingtong Electronic Technology Co., Ltd.
Price:	US $ 100/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	AML390
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Energy Meter
Display:	Digital
Electric Equipment:	Single-phase
Theory:	Machine-electric Type
Installation:	Portable Precise
Usage:	Maximum Demand Meter
Measured Signal:	Continuous Wave
Power Meter Connection:	Terminal

Product Description

Specifications

1) Insertion loss test in dB
2) SM or MM applications
3) FC, SC & 2.5mm UPP, ST (optional)

1) Wide measuremen range;

High resolution: 0.01dB;

Good accuracy:±0.2dB;

2) Insertion loss test in dB;

3) SM or MM applications;

4) FC, SC & 2.5mm UPP, ST (optional);

5) 850/1300/1310/1490/1550/1625nm

calibrated wavelengths;

6) Data storage;

7) Built in VFL (optional);

8) Energy save mode;

9) Reference value storage;

10) Full energy can support above 100

hours operation;

X: RANGE OF OPM			Y: POWER OF VFL
+10~ -70dBm	+18~ -60dBm	+26~ -50dBm	1mW	10mW
T	M	C	V01	V10

For example: EPM30T-V01

Main Characteristic

Accuracy *	± 0.2 dB
Calibrated Wavelengths	850nm / 1300nm / 1310nm / 1490nm / 1550nm / 1625nm
Display Resolving Power	0.01dB
Connecting Adaptor	FC, SC & 2.5mm UPP, ST (optional) or customize
Reference Value storage	Yes
Automatic Power Off	No operation in 10 minutes (can be cancelled), Low battery energy
Build in VFL (Optional)	1mW or 10mW or customize
Data Storage	40 traces
Battery Charge	Yes
Battery Life	Above 100 hours
Storage Temperature	-20 -- +60 °C, < 90%RH
Operating Temperature	-10 -- +50 °C, < 90%RH
Power Supply	AA * 3 batteries or AC/DC power supply adapter
Size	190mm * 90mm *40mm
Weight	About 400g

* at 20 ± 3 °C , CW, with FC connector, -10dBm

For 850nm, the Min. Power measurement: -60dBm@EPM30T, -40dBm@EPM30C, -50dBm@EPM30M

Accessories

Standard	Carrying bag	1
	User's manual	1
	Calibration certification	1
	SC interchangeable connector	1
Optional	ST interchangeable connector	1
Optional	AC/DC adapter	1

Nanjing Tianxingtong Electronic Technology Co., Ltd is located in Nanjing which is ancient captical of six dynasties.

Our company is a professional manufacturer and research in the production of fusion splicer and OTDR (Optical Time Domain Reflectometry).

We have complete and scientific quality management system. The company has a large number of advanced and professional production equipment and testing instruments. Products have to undergo a rigorous testing.

Nanjing Tianxingtong Electronic Technology Co., Ltd always take excellent quality of products and quality service as enterprise's life. Since its establishment, the company has formed"four-in-one" integrated undertaking capacity including design, manufacture, sales, installation and a complete supporting facilities and qualityy service system.

The fusion splicer and OTDR are widely applied to support the use of all kinds of optical communication engineering at home and abroad. Sales in Southeast Asia, Africa and Western Europe. Access to domestic and international users are acquired.

We sincerely welcome new and old customers at home and abroad visit our factory. Let us work together to develop the international market.

Welcome to order, we will serve you.
