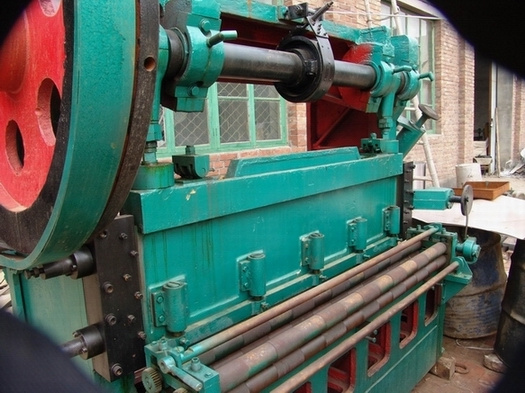

Machine BWZ-1500B(formerly known as JQ25-40) is a kind of Mid size punching and shearing machine.
It can process the 1.5M width mesh with the thickness max. 2.5mm.
This kind of expanded mesh mainly used in shipbuilding, mine, machinery, construction, transportation, oil, hardware, etc.
Material Thickness |
≤ 2.5mm |
Material max Width |
1500mm |
Mesh size of LWD |
100mm |
Distance of Feed |
0-4mm |
Stroke Per min |
70/min |
Nominal Pressure(NPA) |
400KN |
Motor |
7.5 KW |
Net Weight |
5T |
Overall Dimensions |
2400× 1700× 2200 |
The red colored can be changed, according to the customer demand. |
