Anping Yunde Metal Co., Ltd. >> Expanded Metals

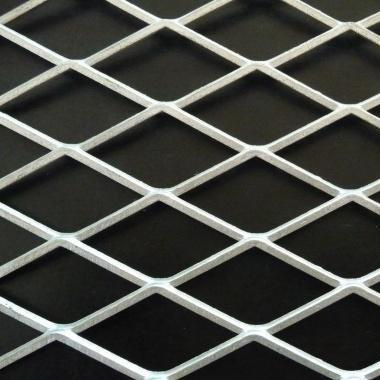

Expanded Metals

Name: Expanded Metals
Brand: China-Manufacturer-Directory.com
SKU: 683562305
Availability: InStock
Rating: 4.3 (79 reviews)

Supplier:	Anping Yunde Metal Co., Ltd.
Price:	US $ 20/Piece
Min Order:	1000/Piece
Quantity::
Trade Terms:	CFR,DAP,EXW

Product Specifications

Prod Model:	YD-EM-Fla
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Thickness:	0.5-8mm
Hole Shape:	Diamond
Usage:	Aquaculture
Weave Characteristic:	Stamping
Surface Treatment:	Galvanized
Stamping Expanded Metal Mesh Category:	Expanded Metal Mesh
Galvanized Surface Treatment:	Hot-galvanize
Hot-galvanize Technique:	Wire Annealing
Specifications:	Mesh
Weight:	Light-weight

Product Description

Expanded Metal Mesh
LWM: 3.0MM-100MM
SWM: 2.0MM-80MM
Strand Thickness: Up to 8.0MM
Strand Width: 0.3MM-8.0MM
Width: 0.5M-2.4M

part of expanded metal specification
Material Thickness		SWD		LWD		Strand Width		W/SQF	W/SQM
Inch	MM	Inch	MM	Inch	MM	Inch	MM	Pounds	KG
0.0197	0.5	0.1181	3	0.2362	6	0.0197	0.5	0.27	1.31
0.0197	0.5	0.126	3.2	0.315	8	0.0236	0.6	0.3	1.47
0.0197	0.5	0.1969	5	0.3937	10	0.0276	0.7	0.23	1.1
0.0197	0.5	0.2362	6	0.4921	12.5	0.0315	0.8	0.21	1.05
0.0197	0.5	0.2756	7	0.5512	14	0.0354	0.9	0.21	1.01
0.0197	0.5	0.315	8	0.6299	16	0.0394	1	0.2	0.98
0.0197	0.5	0.3543	9	0.7874	20	0.0433	1.1	0.2	0.96
0.0197	0.5	0.4724	12	1.1811	30	0.0531	1.35	0.18	0.88
0.0197	0.5	0.3937	10	0.9843	25	0.0441	1.12	0.18	0.88
0.0315	0.8	0.3937	10	0.9843	25	0.0441	1.12	0.29	1.41
0.0315	0.8	0.4724	12	1.1811	30	0.0531	1.35	0.29	1.41
0.0315	0.8	0.5906	15	1.5748	40	0.0661	1.68	0.29	1.41
0.0394	1	0.3937	10	0.9843	25	0.0441	1.12	0.36	1.76
0.0394	1	0.4724	12	1.1811	30	0.0531	1.35	0.36	1.77
0.0394	1	0.5906	15	1.5748	40	0.0661	1.68	0.36	1.76
0.0472	1.2	0.3937	10	0.9843	25	0.0445	1.13	0.44	2.13
0.0472	1.2	0.4724	12	1.1811	30	0.0531	1.35	0.43	2.12
0.0472	1.2	0.5906	15	1.5748	40	0.0661	1.68	0.43	2.11
0.0472	1.2	0.7087	18	1.9685	50	0.0799	2.03	0.44	2.12
0.0591	1.5	0.5906	15	1.5748	40	0.0665	1.69	0.54	2.65
0.0591	1.5	0.7087	18	1.9685	50	0.0799	2.03	0.54	2.66
0.0591	1.5	0.8661	22	2.3622	60	0.0972	2.47	0.54	2.64
0.0591	1.5	1.1417	29	3.1496	80	0.128	3.25	0.54	2.64
0.0787	2	0.7087	18	1.9685	50	0.0799	2.03	0.73	3.54
0.0787	2	0.8661	22	2.3622	60	0.0972	2.47	0.72	3.53
0.0787	2	1.1417	29	3.1496	80	0.1283	3.26	0.72	3.53
0.0787	2	1.4173	36	3.937	100	0.1594	4.05	0.72	3.53
0.0787	2	1.7323	44	4.7244	120	0.1949	4.95	0.72	3.53
0.1181	3	1.4173	36	3.937	100	0.1594	4.05	1.09	5.3
0.1181	3	1.7323	44	4.7244	120	0.1949	4.95	1.09	5.3
0.1181	3	2.1654	55	5.9055	150	0.1965	4.99	0.88	4.27
0.1181	3	2.5591	65	7.0866	180	0.1811	4.6	0.68	3.33
0.1575	4	0.8661	22	2.3622	60	0.1772	4.5	2.63	12.85
0.1575	4	1.1811	30	3.1496	80	0.1969	5	2.14	10.47
0.1575	4	1.4961	38	3.937	100	0.2362	6	2.03	9.92

Anping Yunde Metal Co., Ltd is located at the metal wire mesh production base in Anping County name as China Wire and wire mesh Town. Our main products are Expanded Metal, Perforated Metal, Bar grating Welded Wire Mesh, Crimped Wire Mesh, Stainless Steel Wire mesh, Chain Link Fence.
