EPS INDUSTRY ENGINEERING CO., LTD. >> Expanded Polystyrene Plastic Raw Material

Expanded Polystyrene Plastic Raw Material

Name: Expanded Polystyrene Plastic Raw Material
Brand: China-Manufacturer-Directory.com
SKU: 694320635
Availability: InStock
Rating: 4.3 (35 reviews)

Supplier:	EPS INDUSTRY ENGINEERING CO., LTD.
Price:	Negotiable/Piece
Min Order:	17/Ton
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	FMS
Markets:	North America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe
Color:	White
Synthetic Resin:	Synthetic Resin and Plastics

Product Description

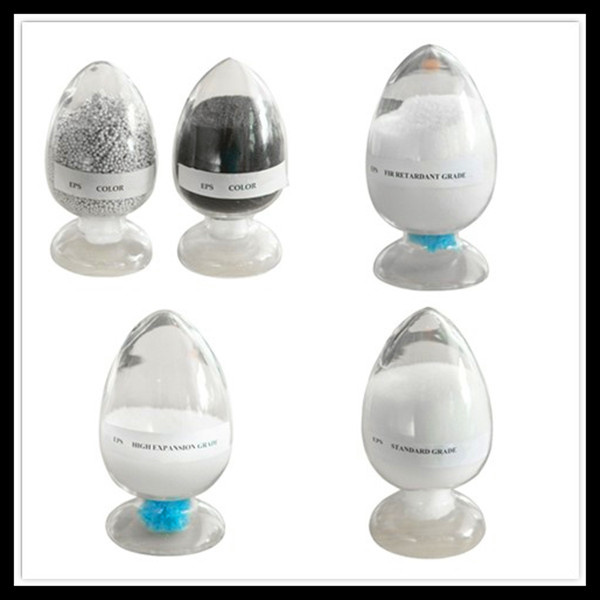

Specifications
Flame Retardant:C- Self Extinguishing Grade
Regular Grade:
F Fire Retardant Grade
E Standard Grade
P High Expansion Grade
B Fast Cycling Grade

EPS RAW MATERIAL

E. P. S. (Expandable Poly Styrene) is a lightweight, rigid, plastic foam insulation material produced from solid particles of polystyrene.
Expansion is achieved by virtue of small amounts of pentane gas dissolved into the polystyrene base material during production. The gas expands under the action of heat, applied as steam, to form perfectly closed cells of EPS. These cells occupy approximately 40 times the volume of the original polystyrene bead.

The EPS beads are then molded into appropriate forms suited to their application. Products made from foamed polystyrene are nearly ubiquitous, for example packing materials, insulation, and foam drink cups.

EPS Fire Retardant grade is used for production EPS blocks, insulation construction material.

Our Producing Process

Prepoaming→Curing→Moulding→Drying→Cutting

Packing

25kg/paper bag,     680bags=17tons=one 20feet container
800kg/jumbo bag,    20 jumbo bags=16tons=one 20 feet container
850kg/jumbo bag,    20 jumbo bags=17tons=one 20 feet container

Payment and Delilvery
Trade Term: FOB,CIF
Payment Term: T/T,L/C
T/T Payment: 30% down payment in advance, balance covered before shipment.
L/C Payment: 100% irrevocable L/C at sight before shipment
Port: Shanghai

EPS APPLY

Roofing
Electronics
Structural Systems -- ICF
Industrial Machinery & Equipment
Foundation
Medical & Pharmaceutical
Architectural
Temperature Sensitive Packaging
Cold Storage
Geofoam

Our services
We highly appreciate your any enquiry by email, fax or instant message.
We will reply your email or fax within 24 hours
Please feel free to call us at any time if there is any questions.
Welcome to visit our factory, we will offer you the best price and best services

Fire Retardant Series: Good fire resistant capability, high pre-expansion ratio and high strength of products; Mainly applicable to thermal and cold insulation materials of buildings.
High expansion grade:Good elasticity of foam particles, high expansion ratio,high strength of products, be able to expand for several times.
Mainly applicable to production of light plates

For over 10 years, we has provided EPS for a broad range of industries in china. Now we have built favorable business relationship with customers in 20 countries. Here at Jiangyin Xiongding, we are a full service and manufacturing firm, serving our customer with high quality products, with over 116,667 square meter of manufacturing and storage space, our production capacity of 120,000 tons of EPS annually, and our products are all issues with ISO,SGS & UL certification of approval

Packing:

25kg/paper bag.

17MT=680BAGS=20'FCL

Test of Finished Product
Item	Unit Result	HIPS 688
Melting flow rate	g/10min	5
Vicat softening point	centigrade	94
thermal deformation temperature	centigrade
tensile strength	Mpa	21.5
extension at break	percent	48
bending strength	Mpa	35
flexural modulus	Mpa
cantilever impact strength	J/m	98
Rockwell hardness	L Scale	60
residual styrene content	mg/kg	350
glossiness	60 centigrade	60
density	g/cm3	1.038

Standard Grade
Code	Beads size	Foam mulfiple	Foam density(G/L)	USE
E-301	1.00-1.60	70-85	12-14	USE FOR BLOCK AND LOW DENSITY PRODUCT
E-302	0.85-1.25	60-70	14-16	USE FOR PRODUCT MORE THAN 12MM THICK
E-303	0.70-0.90	55-65	15-18	USE FOR MIDDLE DENSITY PACKING PRODUCT
E-401	0.50-0.80	40-55	18-25	USE FOR PRODUCT MORE THAN 8MM THICK
E-501	0.40-0.60	30-40	25-30	USE FOR PRODUCT MORE THAN 6MM THICK

High Expansion Grade
Code	Beads size	Foam mulfiple	Foam density(G/L)	USE
P-301	1.00-1.60	75-90	11-13	USE FOR ELECTRIC PACKING BLOCK
P-302	0.85-1.25	65-75	13-15	CRAFTWORK, BOX ETC,ESPECIALLY USE FOR
P-303	0.70-0.90	55-70	14-18	LOW DENSITY BLOCK
P-401	0.50-0.80	45-55	18-20
P-501	0.40-0.60	40-50	20-25

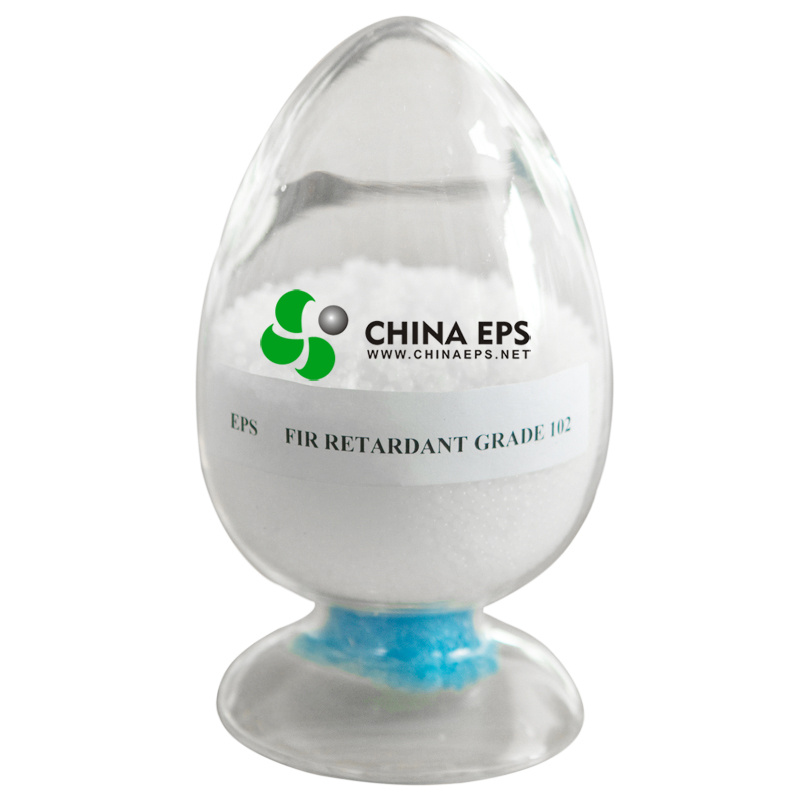

Fire Retardant Grade
Code	Beads size	Foam mulfiple	Foam density(G/L)	USE
F-301	1.00-1.60	70-85	12-14	USE FOR BLOCK
F-302	0.85-1.25	60-70	14-16	USE FOR BLOCK AND BIG PACKING PRODUCT
F-303	0.70-0.90	50-65	15-18	USE FOR BLOCK AND BIG PACKING PRODUCT
F-401	0.50-0.80	40-50	18-25	USE FOR BLOCK AND MIDDLE DENDITY PACKING PRODUCT
F-501	0.40-0.60	30-45	25-30	USE FOR HIGH DENSITY BLOCK AND SPECIAL USE PRODUCT

Fast Cycling Grade
Code	Beads size	Foam mulfiple	Foam density(G/L)	USE
B-301	1.00-1.60	55-70	14-18	USE FOR ELECTRIC PACKING, BLOCK AND CHINA PACKING AND HIGH DENSITY PROUDUCT
B-302	0.85-1.25	50-60	16-20
B-303	0.70-0.90	40-55	18-25
B-401	0.50-0.80	35-45	22-30
B-501	0.40-0.60	30-40	25-35

Specification		F301	F302	F303	F401
Beads Size mm		1.00-1.60	0.85-1.25	0.70-0.90	0.50-0.80
Vol.Cont %		6.85	6.8	6.66	6.27
H₂O %		0.95	1.12	1.25	1.26
F.M %		≤0.10	≤0.10	≤0.10	≤0.10
Avg.size mm		1.32	1.01	0.8	0.63
PRE-EXPENSION DENSITY		12.0-14.0	14.0-16.0	15.0-18.0	18.0-25.0
Sieving ≥ 95%		95.0	95.0	95.0	95.0
Result(g/l)		13.67	15.18	17	23.22
	Max(I)	12.58	14.58	16.67	19.00
DENSITY	(g/l)	12.58	14.58	16.67	19.00
RANGE	Mix(I)	14.00	16.00	18.00	24.33
	(g/l)	14.00	16.00	18.00	24.33
Oxygen Index		≥30	≥30	≥30	≥30
Remark		ALL THE DATA IS BASED ON LAB TEST FOR FIRST TIME EXPANSION IN CONTINOUS EXPANDER
Remark

Specification		P301	P302	P303	P401	P501
Beads Size mm		1.00-1.60	0.85-1.25	0.70-0.90	0.50-0.80	0.40-0.60
Vol.Cont %		7.81	7.66	7.39	7.09	6.82
H₂O %		0.45	0.57	0.38	0.51	0.37
Avg.size mm		1.25	1.01	0.81	0.63	0.53
Sieving ≥ 95%		98.00	100.00	100.00	100.00	99.80
Result(g/l)		12.50	13.50	14.33	18.67	20.20
	Max(I)	11.00	13.11	14.50	18.67	20.20
DENSITY	(g/l)	11.00	13.11	14.50	18.67	20.20
RANGE	Mix(I)	12.50	14.28	17.67	20.00	25.00
	(g/l)	12.50	14.28	17.67	20.00	25.00
Remark		ALL THE DATA IS BASED ON LAB TEST FOR FIRST TIME EXPANSION IN CONTINOUS EXPANDER
Remark

Specification		E301	E302	E303	E401	E501
Beads Size mm		1.00-1.60	0.85-1.25	0.70-0.90	0.50-0.80	0.40-0.60
Vol.Cont %		6.80	6.77	6.59	6.32	6.10
H₂O %		0.39	0.43	0.40	0.45	0.40
F.M %		≤0.30	≤0.30	≤0.30	≤0.30	≤0.30
Avg.size mm		1.35	1.02	0.81	0.63	0.50
PRE-EXPENSION DENSITY		12.0-14.0	14.0-16.0	15.0-18.0	18.0-25.0	25.0-30.0
Sieving ≥ 95%		95.00	95.00	95.00	95.00	95.00
Result(g/l)		12.50	14.50	17.38	20.67	26.18
	Max(I)	12.11	14.76	15.53	18.29	25.38
DENSITY	(g/l)	12.11	14.76	15.53	18.29	25.38
RANGE	Mix(I)	14.00	15.38	17.67	24.18	29.12
	(g/l)	14.00	15.38	17.67	24.18	29.12
Remark		ALL THE DATA IS BASED ON LAB TEST FOR FIRST TIME EXPANSION IN CONTINOUS EXPANDER
Remark

Since 1999 we entered into EPS business line, we have involved in this industry for more than 12 years. Our company mainly focus on EPS scientific research and development, technical support, and EPS consult information.

In China, we are familiar with domestic developing trends of EPS industry. Here we emphasize on the promotion of EPS raw materials and advanced equipments from abroad, and we help our customers to solve some technical problems during processing, even produce some colored materials for them according to their clients' Demands. We are concerned about EPS raw material prices trends at any time, thus we help our customers save raw material purchasing costs and procurement costs. With many years' Cooperation experience with major shipping companies like MAESK, MSC, COSCO, etc., we ensure our cargoes booking and sailing timely. Through all these efforts so that we can enhance our customers' Competitiveness.

Abroad, we are committed to the promotion of the EPS block machine, packaging machine and automatic cutting line origin from China with Chinese characteristics, high quality & reasonable price. We have erected a bridge for worldwide EPS users engaged in EPS industry to communicate better with each other. Therefore, our customers save a lot of travel costs and time, especially reduce a large number of losses due to quality claims in the disputes with our familiar Chinese laws. We' Re not proud of selling cheap products to our customers, but proud of helping our customers solve purchasing problems.

We also devoted a lot in recycling EPS waste. We gather waste EPS in China, and promise to our customers to recycle waste EPS around the world. We processed these waste EPS into a variety of beautiful and useful products. In this point, we pride for reducing the white pollution, and saving energy for the community.

In China, only a company like us, can engage in areas range from raw materials, equipments and recycling granulations with technical supports, and play endless important role in the whole industrial chain.

Concentrate, so we are professional. You are always our concern centre.
