Product Specifications
| Prod Model: |
YB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Vector Group: |
Dyn11 / Yyn0 |
| Short-Circuit Impedance: |
6.5% |
| Standards: |
TUV,CCC,CQC |
| Frequency: |
50/60Hz |
| Voltage: |
6kv 10kv 11kv Customized |
| Package: |
Plywood Case |
| Port: |
Qingdao |
| Phase: |
Three |
| Application: |
Audio |
| Winding Type: |
Auto-transformer |
| Cooling Method: |
Dry-type Transformer |
| Brand: |
Asian Sun |
| Certification: |
TUV |
| Coil: |
Copper or Aluminium Alloy or as Request |
Product Description

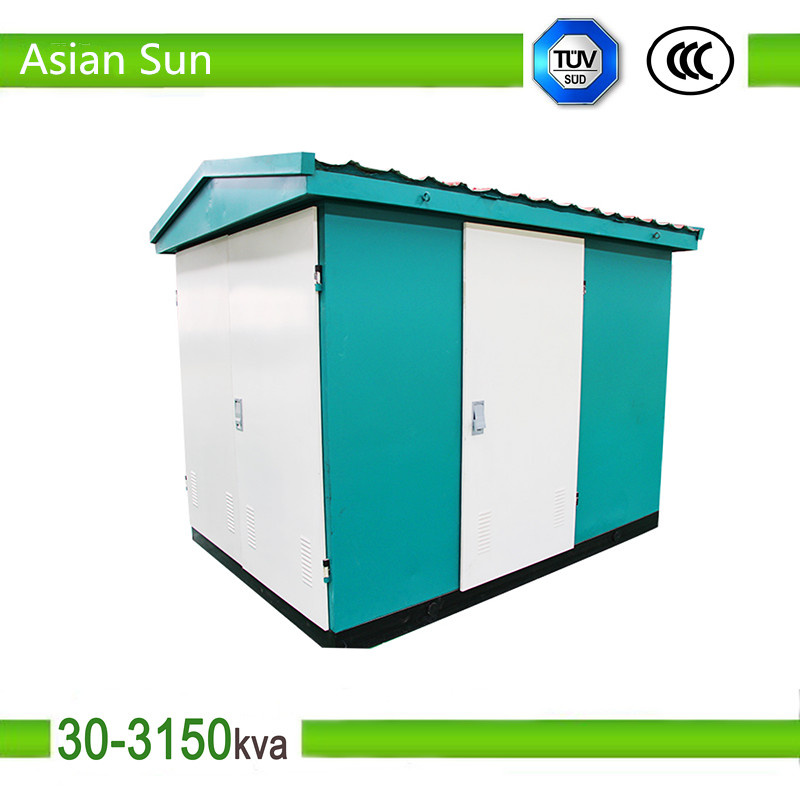

YB series pre-installed type substation:(European type substation )
1) This kind of substation is a compact and complete set of distribution device
which consists of 12kv High-voltage power distribution equipment, a 12/0.4kv
power transformer, lowvoltage power distributionequipment, and electric energy
metering equipment.
2) It mainly apply to 50Hz,6-12/0.4kv three phase current power system as power
or lighting supply. It especially applies to transforming the distribution circuit on
both sides of the road. Residential districts, streets, large scale sites, high rise
buildings,industrial and mining enterprises, temporary facilities , etc, are all
appliable.
3) This product conforms to GB/T17467, IEC601330.
4) Functional characteristics:Compact structure, covers an small area, high strength, convenient in transp ortation and installation. Users can choose different structure
according to their demands.
5) The cabinet of the substation can be made in two kinds of materials: steel plateor aluminum alloy. The carriage is welded ;by molding steel or connected by bolts.
And it can be divided into high- pressure chamber, transformation chamber, low-pressure chamber. The bottom is welded by steel channel and the overall
structure strength high. The door and outers is made of steel plate, aluminum alloy
or composite board. They are embalmed and meet the requirement of outdoor long-term use. They also can make sure the performance of waterproof, dustproof and
corrosionprevention. There are ordinary type and landscape type of shape designs
for applying in different occasions.The shell of the substation is equipped with ventilation,;heat-off, particle filtering devices. Room temperature monitoring and
condensation prevention devices can be installed if asked.
PRODUCT CONDITION
| 1 | Altitude: Below 1000m; |
| 2 | Ambient Temperature: -30°C~40°C; |
| 3 | Related Humidity(RH): Below 95% (±25°C); |
| 4 | Wind Speed: Below 35m/s; |
| 5 | Horizontal acceleration of seism should be slower than 0.4m/s², Vertical
acceleration should be slower than 0.2m/s²; |
| 6 | Should not have conductive dust, corrosion gas to metal & isolation material,
or any dangerous gas whichwill cause inflammation and explosion; |
| 7 | Installation site should avoid acute shaking, vertical gradient should below 30°. |
Tech Data of 10kv,11kv SC(B)10 series resin insulation
dry-type power transformer
| Item | Parameters |
| Frequency/HZ | 50 |
| Rated Voltage/kV | 6 | 10 | 35 |
| Max Voltage/kV | 6.9 | 11.5 | 40.5 |
| Power Frequency Withstand Voltage/kV | 32/36 | 42/48 | 95/118 |
|
| Lightning Impulse Withstand Voltage/kV | 60/70 | 75/85 | 185/215 |
|
| Rated Current/A | 400/630 |
| Rated Short-time Current/KA | 12.5(2S) 16(4S) 20(2S) |
| Rated Peak Withstand Current/\KA | 32.5-40- 40.5 |
| Rated Voltage/V | 380/220 |
| Rated Current Of Major Loop/A | 100-3200 |
| Rated Short-time Current/KA | 15-30-50 |
| Rated Peak Withstand Current/KA | 30-63-110 |
| Branch Current/A | 100-800 |
| Duplexure/Loop | 1-12 |
Compensation Capacity/KVar
| 0-360 |
| Rated Capacity/KVA | 50-2000 |
Short Circuit Resistance/%
| 4/6 |
Tap Ranged
of High Voltage/% | ±5;±2*2.5 |
| Connection Symbol | Yyn0;Dyn11 |
TESTS
.Measurement of winding resistance
· Measurement of voltage ratio and check of voltage vector relationship
· Measurement of impedance voltage, short-circuit impedance and load loss
· Measurement of no-load loss and current
· Dielectric tests
· Insulation oil test
. Impulse voltage test
· Temperature rise test
· Short-circuit test
· Acoustic sound level measurements
ADVANTAGES
safe, no pollution, high mechanical strength, short-circuit withstanding ability, compact structure , light weight. low partial discharge, Excellent anti-short circuit ability ,strong overload ability , no lifting cover at site, free maintenance Final test quality control
1) Low loss
2) Low noise
3) High efficiency
4) Low partial discharge
5) Strong mechanical strength and short-circuit withstand ability .
6) Operation reliability
7) Easy / Free maintenance
8) Pretty outline and compact structure
9) 100% guaranteed no leakage
10)Production process quality control
11) Low winding temperature rise
12)Good distribution characteristics for impulse voltage
13)Eliminate the transformer oil flow electrification
14)Effectively prevent the core multipoint earthing and iron chip of the short circuit from the accident.
