Zhengzhou Jeao Heavy Industry Machinery Equipment Co., Ltd. >> Explosion Proof Electrical Shotcrete Guniting Machine (PZ-series)

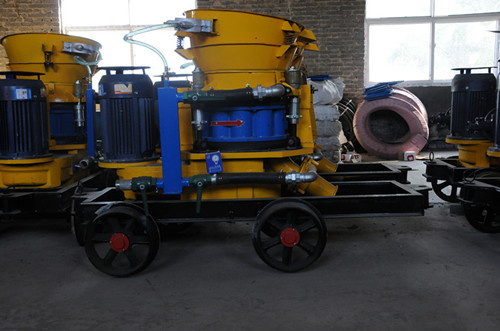

Explosion Proof Electrical Shotcrete Guniting Machine (PZ-series)

Name: Explosion Proof Electrical Shotcrete Guniting Machine (PZ-series)
Brand: china-manufacturer-directory.com
SKU: 671946532
Availability: InStock
Rating: 4.7 (133 reviews)

Supplier:	Zhengzhou Jeao Heavy Industry Machinery Equipment Co., Ltd.
Price:	US $ 2203.00/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	PZ-5/PZ-6/PZ-7
Markets:	Southeast Asia,Africa,Mid East,Eastern Asia
Type:	Electrostatic Spraying Equipment
Certification:	ISO
Method Type:	Manual
Application:	Cement, Mortar, Synthetic Fabric

Product Description

PZ-series Dry Mix Shotcrete Machine, as the solution for damp-mix shotcreting, is widely used for railway and highway, subterranean basement walls, Seismic reinforcing/ retrofitting of buildings, channels, shear Walls, retaining Walls, bridge retrofits, architectural concrete, mining, tunnel, culvert, subway, hydropower engineering(such as tunnels, dams and pools) and underground excavation engineering etc.

It has many obvious advantages such as simple structures, easy operation and convenient after sales service and very long serviceable life etc...

Delivery date: 7 days
MOQ: 1 SET

Model			PZ-5		PZ-6	PZ-7
Output (m3/h)			5-6 m3/h		6-7m3/h	7 -9m3/h
Convey Distance Max	Horizonta	200		200		200
	Vertical	50		50		100
Water cement ratio		≤ 0.4			≤ 0.4	≤ 0.4
Filling height		1.10			1.10	1.15
Max. Aggregate. size		≤ 20mm			≤ 20mm	≤ 20
Concrete materials mix ratio:		1: 4-5C/A			1: 4-5C/A	1: 4-5C/A
Hose inner size		φ 51 mm			φ 50 mm	φ 60 mm
Operating air pressure		0.2-0.4 MPa			0.2-0.6 MPa	0.2-0.6 MPa
Air consumption		7-8 m3/min			7-9m3/min	8-10 m3/min
Motor power		5.5kW(4hp)			5.5 kW(7hp)	7.5 kW(10hp)
Rubber hose		50mm/38			50mm/38	50mm/38
Dimension		13507501150mm			1350x1020x750mm	1500x1320x830mm
Weight		680kg			680kg	760kg
Voltages		220V/380V/400V/415V/440V/660V 50Hz/60Hz
Basic chassis		600mm or 900mm or others. The rubber wheel or Track wheel.
Driving Type		Electric dry

Zhengzhou Jeao Heavy Industry Machinery Equipment Co., Ltd...And our company manufactures all kinds of rock drilling rig, air compressoe, pneumatic jack hammer, DTH hammer, drill bit etc.

Our company have many years of exporting these products to our main markets: Africa, Canada, United States, Australian, Korea, and around the world. Our company was building in 1956, have 4100 employees. It's a largest manufacturers in the China, so the products are high quality. You can rest assured to buy.

Our factory in Zhengzhou, Henan. It's nearer to Qingdao port/Shanghai port and Tianjin port, so the transpotation is very convenient. Our Goods could be quickly arrived to you, right?

Our Jeao brand is very famous. We are specialized in manufacturing the mining equipment. We have so many models.

Welcome.
