Product Specifications
| Prod Model: |
E-4000/D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

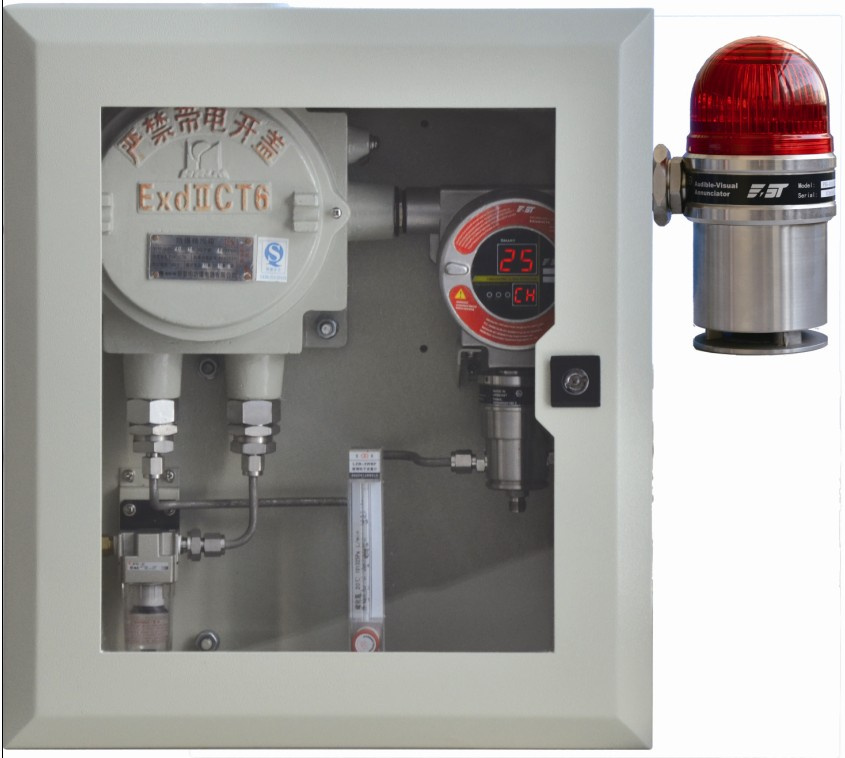

Explosion-proof industrial oil and gas analyzer for complex ambient application E-4000/D
E-6000/D series gas analyzer system is the new launched & the enrichment version of E-6000/D, It is the effective extending of diffusion gas detection area which applies the combination of gas detector and gas sampling analyze technique. It can widely use for the continuous gas detection for the aimed environments.
E-6000/D series gas analyzer system can detect the regions for aimed tank, pipeline or in the pit where is inconvenient detection and installation for the traditional gas detectors.
The principle is extracting the aimed gas and sending it back to the detector by this analyzer system to reach the purpose of detecting the aim gas concentration. It can also detect the anaerobic or anoxia tank and stack for mixture gas analyzer.
It applies the modularization design and save the application space and easy to maintain and calibrate and debug and by the Micro pump of high-performance automatic suction with the functions of long services lifetime, wide detection range and strong adaptability.
A newest launched gas analyzer, a effective extension for the diffusing gas detection, apply analyzer technque of gas sampling, a analyzer used for gas concentration of target ambient, detecting the gas for canning, pipeline and down hole conditions that the fixed gas detector doesn't work or can't installment.
Its working pronciple is that the gas analyzer extracts the gas of target areas and send back to analyzer, and achieve the aim of detecting the target gas concentration.
Characteristics
-Automatic suction type of gas analyzer with the high reliable & high performance automatic suction type of micro pump.
-Explosion-proof design for structure and can suck continuously the combustible & toxic gases.
-Built-in high performance suction type of micro pump can use for environments of moist, high altitude emission, and ordinary pressure tube to continuously suck in gas leakage for gas detection.
-Stable working performance, long service lifetime, high sensitivity, good selectiveness etc.
-4-20mA standard output signal with max transmission distance of 2km.
-Spot setting available and can realize calibration & maintenance by single person.
-Detection for 70 kinds of combustible, oxygen & toxic gases.
-LED display for current time concentration detection.
-The volume of sucked gas is adjustable
Technical parameters
Signal output
4-20mA; RS485
Sensitibity drift
Less than2%FC/month
Working voltage
AC220V 50Hz
Display
3+2 LED/ 3-color indication
Power dissipation
Less than5W (non heat accompany)
Transmission cable
4-core water-proof screening cable
Alarm setting
7% vol (O2); 10ppm( H2S)
Max output distance
No more than 2km
Relay output
5A@220V/ 5A@24V DC
Explosion-proof grade
ExdIICT6
Detection gases
O2 or H2S
Weight
80kg
Detection range
0-30%vol, 0-100ppm
Heat accompany working woltage
AC220V 50Hz
Sensor type
Electrochemistry sensor
Heat accompany power dissipation
Less than 200W
Lifetime of analyzer
More than 2 years
Sampling connecting
DN10 flg
Lifetime of air pump
More than 2 years
Sampling pipeline
Diameter 6 stainless steel
Lifetime of sensor
More than1 year
Operation press
Entrance: 0.1-0.4Mpa airvent: +/-7kpa
Applying location
Zone I of hazardous location
Size of analyzer
900X1100X220
Outdoor usage
Respond time
T90 NO MORE THAN 30s ( increasing 5M of sampling tube, the T90 added 20s)
Zero drift
Less than 2%FC/month
Detection precision
+/-1%
Ambient condicion
Temperature (-40~+70)° C
RH: (10~95)%RH
Atmosphere press(86~106)kpa
