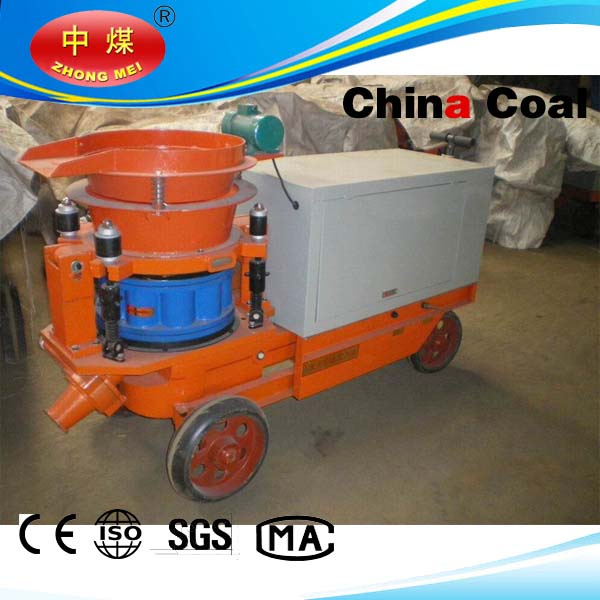

Explosion-proofing wet-mix Shotcrete machine
1 simple operation low dust low rebound high-strength of concrete layer
2, Explosion-proofing motor
Wet-mix shotcrete machine is an advanced concrete spraying technique, developed from dry-mix shotcrete.
Wet-mix shotcrete machine advantages: Simple operation, low dust, low rebound, high-strength of concrete layer; Reliable performance an so on. Widely be used for Construction Engineering, Mining, Tunnel, Culvert, Hydroelectric Project, Underground Engineering
| item | HSP-5B | HSP-7B |
| Output | 5 m³/H | 7m³/H |
| Max. Convey dist | Horizontal:30m Vertical: 20m | Horizontal:30m Vertical: 20m |
| Concrete proportion | 1:4-5C/A | 1:4-5C/A |
| Water cement ratio | ≤0.4 | ≤0.4 |
| Hose inner size | Φ51m | Φ51m/64mm |
| Max. Aggregate size | 15mm | 15mm |
| Operating air pressure | 0.3-0.6MPa | 0.4-0.6MPa |
| Air consumption | 10-15m³/min | 10-15m³/min |
| Rotor diameter | 438mm | 480mm(160) |
| Spring rate level | ≤10% | ≤10% |
| The accelerating liquid adding amount | 0.3-0.7% | 0.3-0.7% |
| main Electric motor power | Y132m-6-5.5KW | Y160m-6-7.5KW |
| Accelerating metering pump | pneumatic | pneumatic |
| Overall dimension(mm) | 1280x700x1280 | 2000X800X1300 |
| Whole weight | 700kg | 800kg |
| Rail wheel gauge | 600mm(762or 900mm) |
