EXSOFT Digital Language Laboratory (EX-330)

Product Specifications

Prod Model:	EX-330
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

1. EXSOFT Digital Language Laboratory EX-330 introduction
EXSOFT Digital Language Laboratory EX-330 is including the console software for teacher and the terminal hardware for student.

The console software for teacher is need to be installed inside the computer, the computers are connected by Ethernet to all students terminal.
EX-330 is a digital full-functional audio comparative system which consists of the hardware component students' stations and also software component management software for language learning system. Both parts are supplied as one complete kit. It is a digital lab that does not use student computers.

2. Major Features of EXSOFT Digital Language Lab "EX-330"
1). Operation on standard Ethernet network via TCP/IP protocol
2). All audio courses, teaching materials, students' records and results of students' learning progress are saved in the database at teacher's computer. The database may be located at a separate server with access of all classes which are equipped with EX-330
3). Support of simultaneous broadcasting from 8 digital and up to 5 analogue programs
4). Teaching modes: Group Talk, Talk in Pairs, All Call, Intercom, Monitoring, Scanning, Model Imitating etc.

5). To evaluate the students' learning progress, teacher can select Listening, Reading, and Pronunciation Modes with automatic answers collection and results processing. There is a possibility to record a student's voice.
6). Tests results are displayed in form of tables, graphs and diagrams
7). In Study Hall Mode students can obtain access to database of materials, located at teacher's computer
8). Teacher can set up to 100 bookmarks on any record
9). Teacher can record his voice and voice of any selected student in real time and also sound from other external devices
10). User-friendly interface
11). Automatic software update available

3. Teacher console software of the EXSOFT Digital Language Lab "EX-330"
1). The "All call" function is illustrated by a microphone symbol...
2). The "Self-learning" function is illustrated by a "capped student" symbol...
3). The "Monitor" function is illustrated by a "doughnut" symbol.
4). Scan & Monitor: The system can be set to monitor each of the students automatically.
5). The "Intercom" function is illustrated by a "dual arrow" symbol.
6). The selected "Model" student is displayed as three hexagons...
7). Calling students are displayed by a telephone symbol.
8). Call clear: Clear all student calls.
9). Simultaneous interpretation.
10). The recording symbol is displayed as thumbnail.
11). Turning the student panels on
12). Turning the student panels off
13). The teacher can select the structure of the group.
14). Recording student attendance

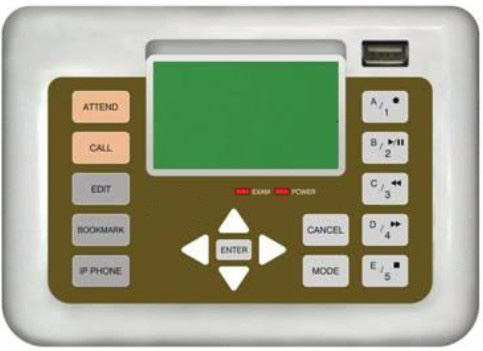

4. Student terminal of the EXSOFT DLL "EX-330"
Students' stations. They are specialized microcomputers with integrated OS Linux, which are protected from computer viruses. The stations are panels in cut in the table surface.

1). EX-330 is fully digitized language lab terminal, which is placed in each student booth allowing students access to digitized programs transferred from the teacher computer.
2). Features of Student terminal
A. Teaching mode: Attend, Call, Edit, Bookmark, IP PHONE, Cancel, USB interface.
B. "Self-learning" mode: AOD (Audio on Demand), Digitally Sstored Programs, Student Record

5. Other equipment of the EXSOFT DLL "EX-330"
Power supply.
Network switch
Headphones
