Extruded Polystyrene Foam

Name: Extruded Polystyrene Foam
Brand: china-manufacturer-directory.com
SKU: 685307552
Availability: InStock
Rating: 4.3 (69 reviews)

Supplier:	Kingyep Industrial Co., Ltd.
Price:	Negotiable/Square Meter
Min Order:	500/Square Meter
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Apparent Density:	35~38kg/m³
Material:	Polystyrene Foam
Refractoriness:	-150~180c
Usage:	Heat Insulation
Color:	Blue,Green,Pink

Product Description

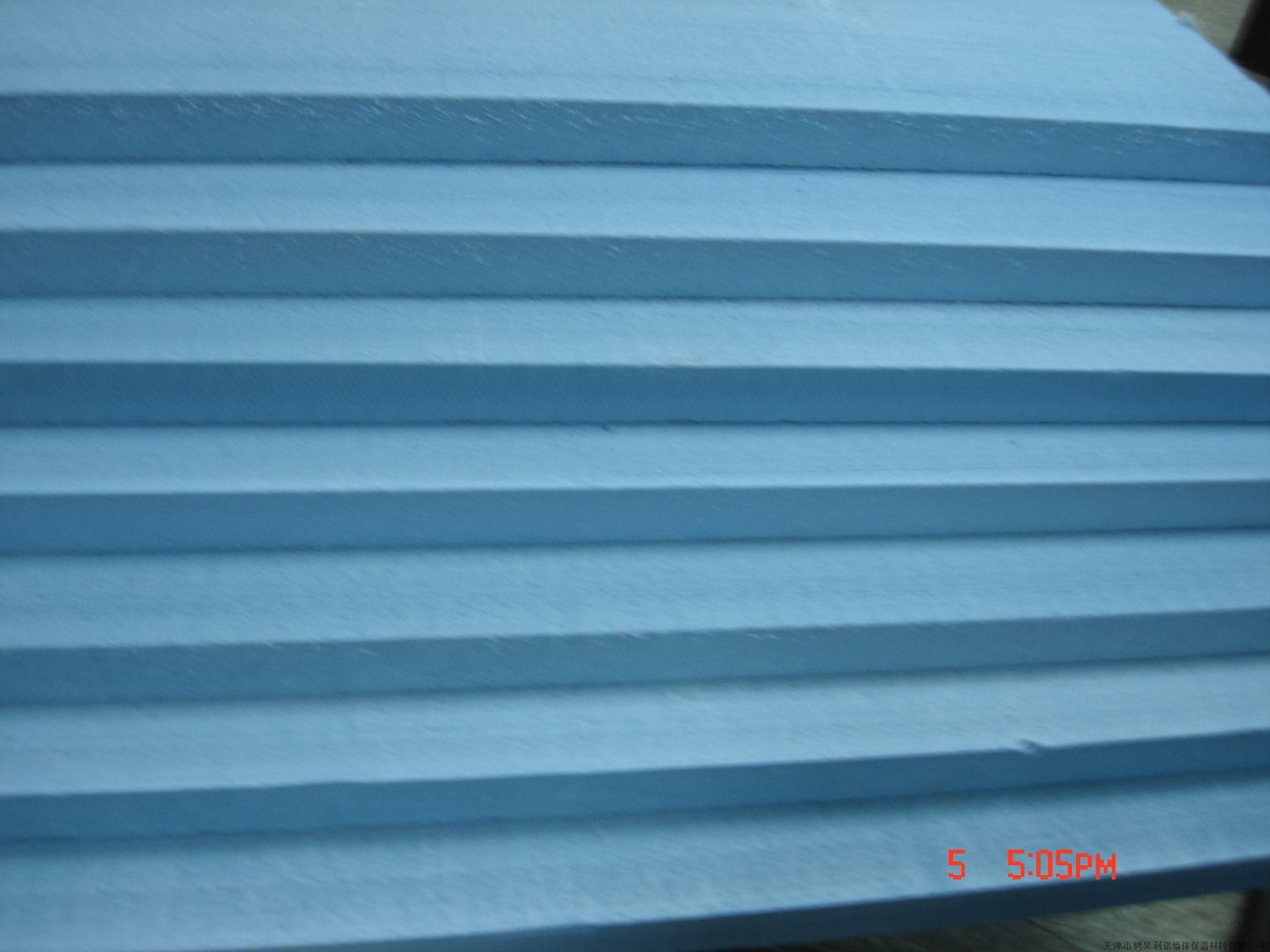

High Compressive Strength XPS Foam Board

XPS is an extruded polystyrene insulation manufactured through a plastic extrusion process. The resulting boards are almost 100% closed cell, strong, highly moisture resistant and easy to cut and shape.

APPLICATION:
XPS is particularly indicated for places where a high mechanic resistance is required. Its resistance to water and compression make it the ideal insulation solution for extreme conditions.
We have three main products based on the xps foam board.

1. XPS Tile Backer Board

2. XPS Shower Tray Board

3. XPS Underfloor Heating Panel

FEATURES:

* Stable performance and anti-aging: The extruded polystyrene (XPS) insulation boards can be used 35-50 years.

* Resistance to compression: Compared with other thermal insulation material(200Kpa for EPS), it has better compressive strength(around 300Kpa for 38kg/m3, 650Kpa for 60kg/m3), which make it the ideal solution for heavy domestic or industrial loads, in floors, roofs or in panels.

* Water resistance: Polyfoam is almost 100% closed cell and as such is unaffected by moisture

* Lightweight: Volume optimization and easy to handle

* Resistance to deformation

* Resistance to impact

* Versatile: The closed cell structure and density of Polyfoam allow specific edge details and surface finishes to be cut into the boards to make them as fit for the job as possible. Moreover, Polyfoam can be cut into almost any shape

* Ozone friendly: Free of CFC.

* Recyclable: Polyfoam can be 100% recyclable. As the material does not degrade it can be either recycled or re-used when the application requiring Polyfoam no longer requires the product. Whether for long term application in buildings or recyclable materials, Polyfoam is a sound environmental choice.

TECHNICAL DATA

ProductivityCBM/day250

DensityKg/m335~65kg/m3

Length of the boardmm< =6000mm

Width of the boardmm< =1200mm

Thickness of the boardmm6~100mm

Color of the board
Normally pink and blue

DensityKg/m338~40

Thermal conductivity, 90 days, 10° CW/mK0.027~0.03

Compressive strength at 10% deflection or yield, (vertical)kPa≥ 300

Tensile strengthkPa≥ 300

Water absorptionVol-%< =1.00%

Capillaritynilnil

Coefficient of linear thermal expansionmm/mK0.07

Temperature limits° C-50° C, + 75° C
