Product Specifications
| Prod Model: |
HY-70 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Hongyue |
| Model Number: |
Hy-70 |
| Condition: |
New |
| Application: |
Monofilament |
| Quality: |
First Class |
| Warranty: |
One Year |
| Use Period: |
Durable |
| Power: |
46kw |
| Weight: |
About 7t |
| Voltage: |
3 Phase, 380V, 50Hz |
| Plastic Processed: |
PP |
| Feeding Mode: |
Multiple Feed |
| Assembly Structure: |
Integral Type Extruder |
| Screw: |
Single-Screw |
| Engagement System: |
Full Intermeshing |
| Screw Channel Structure: |
Deep Screw |
| Exhaust: |
Don't Exhaust |
| Automation: |
Automatic |
| Computerized: |
Computerized |
| Type: |
Monofilament Extrusion |
| Product Type: |
Monofilament Extruder Machine |
Product Description

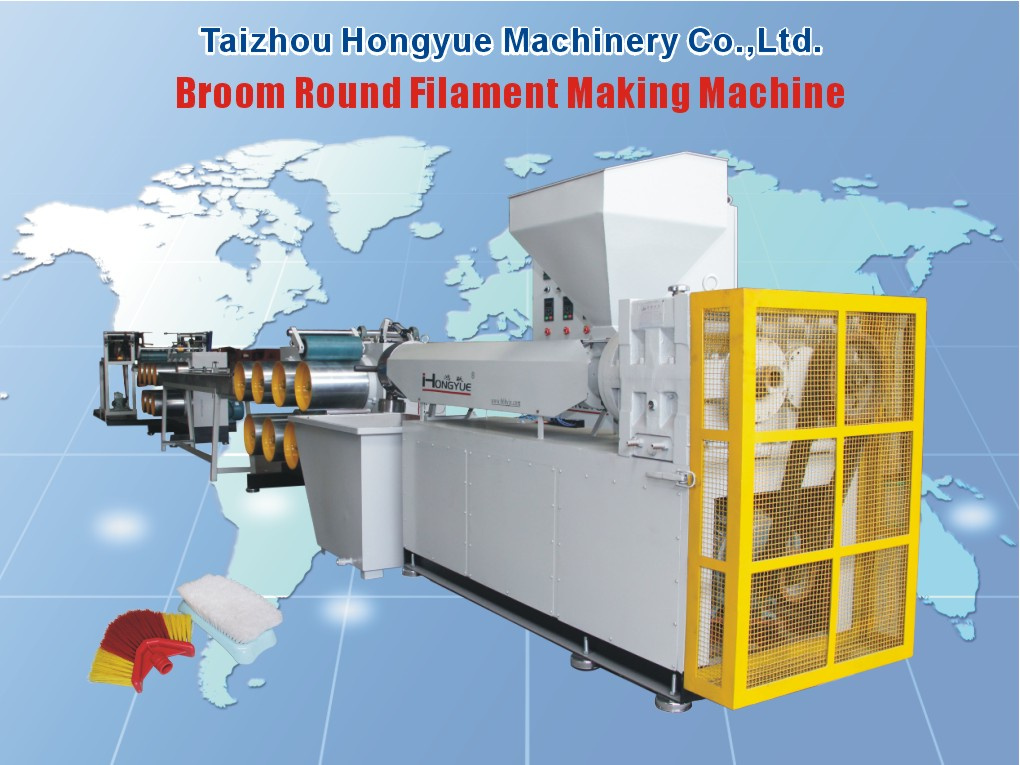

Extruder Making Machine
Main technical parameter and device
| Qarameter | Qty |
| Extruder | 1 SET |
| Cool tank | 1 SET |
| Seven rollers haul-off unit A | 1 SET |
| Hot water tank | 1 SET |
| Seven rollers haul-off unit B | 1 SET |
| Oil adding equipment | 1 SET |
| Winder | 1 SET |
| Blender | 1 SET |
Brush filament machine through many years of research and experiment, designed for re-use of waste plastics research and development. The quality of the device has been widely recognized by customers, because of low failure rate and durable. Customers use the device over 10 years, which can still in continuously create economic value to them.| Extruder | 1)Raw material PE, PP, PET, NYLON, POLYESTER |
| 2)Dia. of monofilament: Φ 0.1-Φ 2.5mm |
| Screw diameter | Φ 70mm |
| Ratio of L/D | 1:25 |
| Power of main motor | 22KW |
| Cooling mode | Water cooling |
| Heating power | 18kw |
| Overall dimensions(L× W× H) |
|
| Packing Details | As your requirements |
| Production Capacity | 80-100kg/h |
| Max outputcapacity | 1500kg-2500kg |
| Weight(about) | 7T |
1.ADVANTAGES:- Longer life of screw & barrel
- Latest technology used to force the melt into the die very effectively
- Take up small area
- Simple operation
- High output capacity
- Low maintenance
2.SERVICE:
Pre-sale: We provide presales service in various forms, for example, making investment budget, manufacturing
Planning, etc.So that customers make a reasonable plan with less cost.
In-sale:
Detailed design of lay-out that is the position of the procession
Technological information of provided products
Schedule about design, manufacturing and installation
Working & Producing progression
Training course for the technician so that the installation is safe and standard
After-sale:
For customers buying our products, we provide them free training so that they can use and maintain the machine independently.
We will answer customer's question on technology in time.If needed, we will offer on-site guidance and assistance.
