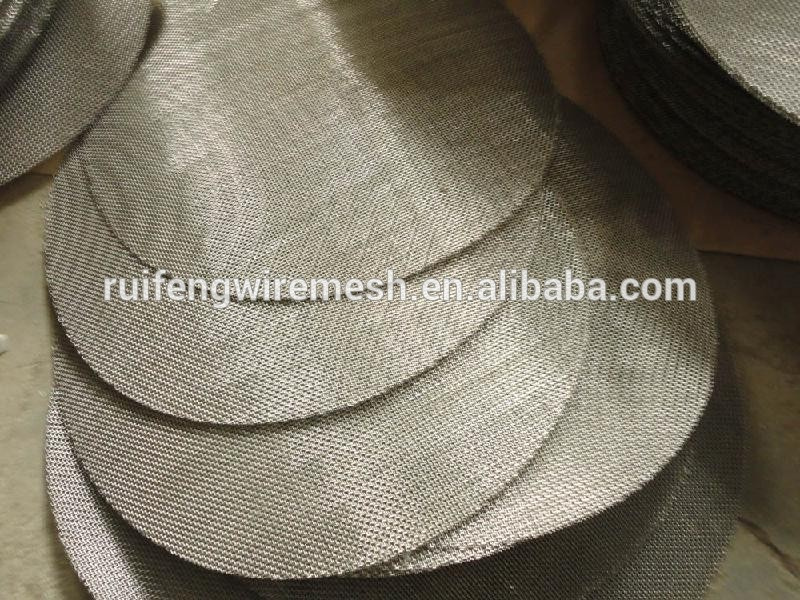

Extruder screen filter discs filter
Extruder screens are an imperative part of the melt filtration process. It is used in plastic and rubber processing machinery to ensure a clean and viable extrusion. Our wire cloth screen for extruder filtration available in various materials, weaves all with a wide spectrum of micron ratings to suit different filter use.
Specification
Layer: single layer or multilayer
Material: stainless steel wire mesh, brass wire mesh Woven
style: plain steel wire mesh, twill mesh
Shape: circle, disc, round, oval, rectangular, cones, or other special shape, spot weld packs
with compressed edges or without borders
Standard Extruder Screen Size |
|---|
| Mesh | Wire Dia. mm | Aperture Size mm | Open Area |
|---|
| 10 × 10 | 0.711 | 1.829mm | 51.8 |
| 14 × 14 | 0.457 | 1.357mm | 55.9 |
| 16 × 16 | 0.457 | 1.131mm | 50.7 |
| 20 × 20 | 0.559 | 0.711mm | 31.4 |
| 20 × 20 | 0.457 | 0.813mm | 41.0 |
| 24 × 24 | 0.376 | 0.682mm | 41.4 |
| 30 × 30 | 0.376 | 0.531mm | 34.2 |
| 30 × 30 | 0.310 | 0.536mm | 40.0 |
| 40 × 40 | 0.274 | 0.361mm | 32.3 |
| 50 × 50 | 0.193 | 0.335mm | 43.6 |
| 60 × 60 | 0.193 | 0.230mm | 29.8 |
| 80 × 80 | 0.122 | 0.196mm | 37.9 |
| 100 × 100 | 0.102 | 0.152mm | 36.0 |
| 120 × 120 | 0.091 | 0.120mm | 31.8 |
| 150 × 150 | 0.071 | 0.088mm | 29.6 |
| 200 × 200 | 0.050 | 0.077mm | 36.76 |
| 250 × 250 | 0.040 | 0.062mm | 36.76 |
| 300 × 300 | 0.040 | 0.045mm | 27.83 |
| 325 × 325 | 0.035 | 0.043mm | 30.49 |
| 400 × 400 | 0.028 | 0.036mm | 31.25 |
| 500 × 500 | 0.025 | 0.026mm | 25.79 |
