F-Grade Epoxy Pre-Impregnated DMD Insulation Paper

Name: F-Grade Epoxy Pre-Impregnated DMD Insulation Paper
Brand: China-Manufacturer-Directory.com
SKU: 703823322
Availability: InStock
Rating: 4.5 (84 reviews)

Supplier:	Xuchang Chengrui Insulation Material Co., Ltd.
Price:	US $ 2.5kg
Min Order:	500kg
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	6641
Markets:	North America,Africa,Oceania,Mid East,Eastern Asia
Thickness:	0.17,0.20,0.25,0.30,0.35mm
Width:	1000mm
Package:	Carton and Pallet
Storage Life:	1 Year
Application:	Winding Wire Coating Insulation
Type:	Solid
Chemistry:	Organic Insulation
Material:	Paper
Thermal Rating:	F 155
Maximum Voltage:	<10KV

Product Description

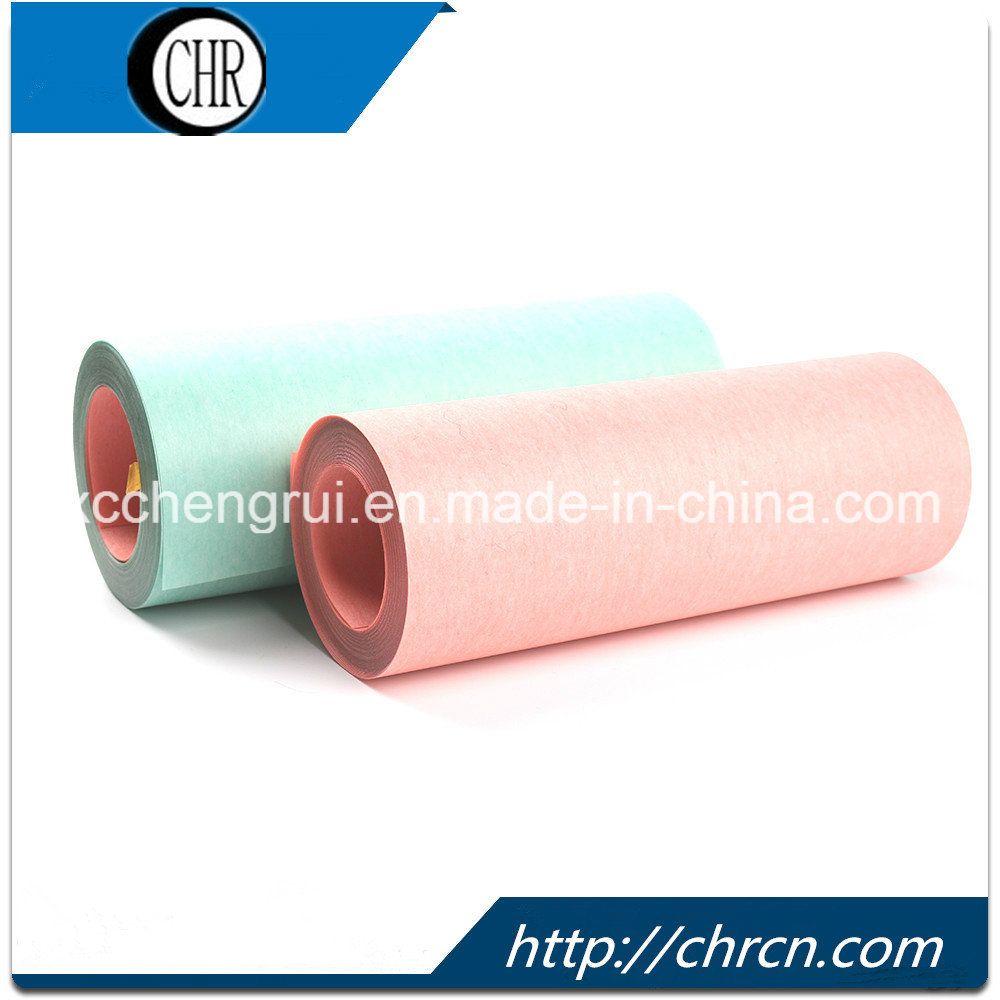

6641 F-DMD Flexible composite Material-insulation paper
Heat-resistance: F class 155°C
6641-F DMD insulation paper consists of two layers of polyester fiber non-woven fabric and one layer of polyester film in the center, the used adhensive is F CLASS ,acid-free and temperature resistant.
Property:With high dielectric, heat resistance, mechanical strength and impregnated property, as slot ,interurn and liner insualtion in transformers.
The specification available:
Thickness: 0.20mm   0.25mm 0.30mm 0.35mm
Width: 1000m   Color: Pink, watermelon, Blue and White
Form: in rolls.
Pacage: Plastic Bags or Carton     Storage life---1 year
Advantages:
It has better heat-resistance, dielectrical property and  mechanical property than Class F DMD
Applications:
Epoxy Modified Class F DMD is mainly used as slot liner,slot closure,phase and turn-to-turn insulation in electrical motors. It can be used as interlayer insulation in transformers and other electrical appliances.
Technical Data

Type	Nominal Thick-ness	Tolerance	PET Film Thick- ness	Nominal Grammage	Tensile Strength		Elongation		BDV
					MD	TD	MD	TD	Room Temp-erature	155 ±2°C
					Not Bended	Bended	Bended	Not Bended	Room Temp-erature	155 ±2°C
	mm	mm	µm	g/m2	N/10mm	N/10mm	%	%	KV
DMD 1.5-2-1.5	0.12	±0.020	50	110±20	≥60	≥50	≥10	≥15	≥4	≥3
DMD 2-2-2	0.15	±0.020	50	150±22	≥80	≥70	≥10	≥15	≥7	≥6
DMD 2-3-2	0.18	±0.025	75	190±28	≥100	≥80	≥10	≥15	≥8	≥7
DMD 2-4-2	0.2	±0.030	100	210±32	≥120	≥95	≥10	≥15	≥9	≥8
DMD 2-5-2	0.23	±0.030	125	240±36	≥130	≥100	≥10	≥15	≥10	≥9
DMD 2-6-2	0.25	±0.030	150	260±39	≥150	≥120	≥10	≥15	≥11	≥10
DMD 2-7.5-2	0.3	±0.035	190	310±46	≥170	≥130	≥5	≥5	≥13	≥12
DMD 3-7-3	0.35	±0.040	175	390±58	≥200	≥160	≥5	≥5	≥15	≥14
DMD 3-10-3	0.4	±0.040	250	440±66	≥300	≥200	≥5	≥5	≥18	≥17
Temperature Index			°C	≥155
Storage Life	12 months,room temperature,dry and well-ventilated environment
Adhesive Property	Room Temperature		No delamination
Adhesive Property	180±2°C 10min		No delamination,blister,or adhersive flow
Wetted Adhesive Property			No delamination
Remark	This product is produced in accordance with Q/HJ-214-2009 and is tested in accordance with GB/T5591.2-2002

Welcome Xuchang ChengRui Electrical Insulation Material Co., Ltd

If any question, pls contact our sales

Our main products are as follows:

Film Products: 6020/6021 Polyester film, 6051 polymide film

Flexible composite insulation paper: 6630 DMD insulation paper, 6641-F DMD, 6640NMN, 6650NHN, 6520/6521 insulation paper

Insulation binding tape: Alkali-free fiberglass tape, 2840 epoxy resin impregating binding tape, mica tape, cotton tape, shirinkable binding tape,

Insulation Sleeving: 2715 PVC fiberglass sleeving, 2751 silicone fiberglass sleeving, 2753silicone resin fiberglass sleeving, 2740 acrylic fiberglass sleeving.

Impregnating fiber products: 2432alkyd Fiberglass varnish cloth tape, 2310 oil varnish cloth, 2450, 2210

Electrical insulation paper: Insulation paperboard, Diamond Dotted paper, presspaper, crepe paper, cable paper

Laminated sheets: 3021 phenolic paper sheet, 3025phenolic cotton cloth sheet, 3240epoxy fiberglass sheet, 3841 epoxy rod, 3722-1 cloth bar

The products are widely used for slot insulation, interturn insulation, layer insulation and liner insulation of the large and small motor. Some are for binding insulation of transformer, impregnating material, electrical wire and other electrical insulation.
