Product Description

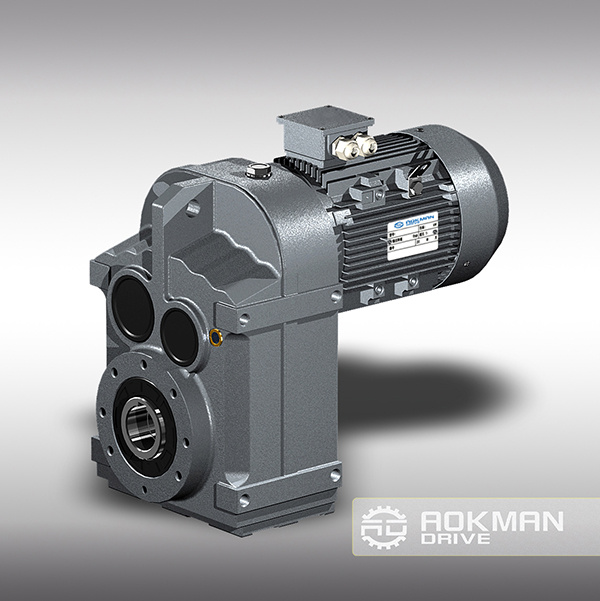

China manufacturer F Series Parallel Shaft Gear Reducer
F Series Parallel Shaft Gear Reducer It's suitable for transmitting rotation of parallel. F series gearbox have the feature of light weight, small volume, heavy transmission torque, steady startup, low consumption.It could be mounted in various types and the in-put and out-put flexible etc. Structure:
F(-)
| F(F) | The out-put | In-put | F(-) |
| Foot-mounted | Flange-mounted | Solid out-put or Hollow out-put. | Solid in-out shaft, or In-put flange | Foot mounted solid shaft output |
Output mode: hollow shaft output or solid shaft output.
Average efficiency: 2-stage 96%, 3-stage 94%, combination 85%.
Input power rating and maximum torque
Size
| 38 | 48 | 58 | 68 | 78 | 88 | 98 | 108 | 128 | 158 |
Structure
| F FA FF FAF FAZ |
Input
power rating | 0.18~3.0 | 0.18~3.0 | 0.18~5.5 | 0.18~5.5 | 0.37~11 | 0.75~22 | 1.1~30 | 2.2~45 | 7.5~90 | 11~200 |
| Ratio | 3.81~
128.51 | 5.06~
189.39 | 5.18~
199.70 | 4.21~
228.99 | 4.30~
281.71 | 4.20~
271.92 | 4.68~
276.64 | 6.20~
255.25 | 4.63~
172.33 | 12.07~
270.18 |
Maximum
torque(N.m) | 200 | 400 | 600 | 820 | 1500 | 3000 | 4300 | 7840 | 12000 | 18000 |
Gear unit weight
Size
| 38 | 48 | 58 | 68 | 78 | 88 | 98 | 108 | 128 | 158 |
| Weight |
13 | 18 | 34 | 55 | 90 | 150 | 260 | 402 | 700 | 950 |
The weights are mean values, only for reference.
Maximum torque means the biggest one of the maximum torque related to the different ratio for the specified size.
Zhengzhou Aokman Machinery Co., Ltd is joint ventured in mainland of China by Aokman do Brasil Ltda and HK Aokman drive Machinery Co., Ltd, Aokman is specialized in R & D, manufacture and sales of gearbox reducer, gear, rack and motor, which has been developed to be an exporting associated enterprise.
Our main products: F series parallel shaft gearbox, RV series worm reducer, R series helical gearbox, K series bevel helical gearbox, H. B series high-power hard-surface gear industry gearbox, AC motor and micro-planetary gearbox, ATA series hanging shaft-mounted gearbox and so on which widely used in cement, sugar mill, metallurgy, petroleum, mining, construction, environment, chemical, textile, light industry, national defense, scientific research and so on.
Aokman's products are mainly exported to south America, Europe, the Middle East, Southeast Asia and other countries, are widely used and praised by the users.
| Rated Power | 0.18KW~200KW
|
| Rated Torque | Up to 18000N.m
|
| Gear Arrangement | Parallel Helical Hardened Gearbox
|
| Input Speed | 50HZ or 60HZ of 4Pole,6Pole and 8pole motor |
| Ratio | 3.81~281.71
|
If you have any demand for our products please feel free to contact me.
