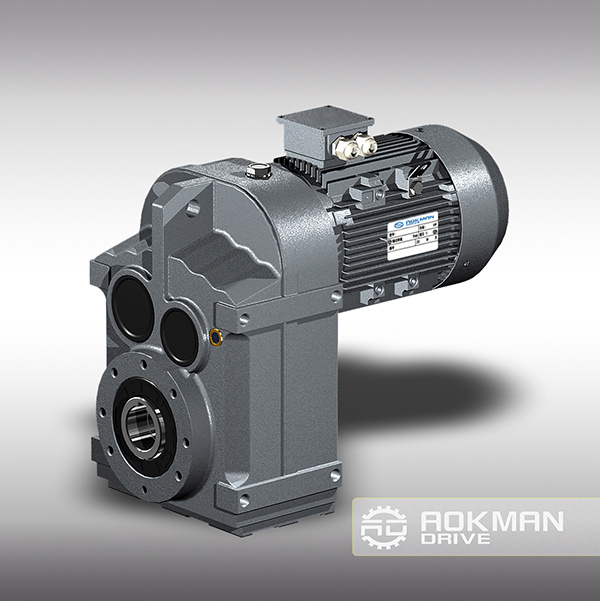

F Series Parallel Solid Shaft Helical Gearbox From China
Product Specifications
| Prod Model: |
F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Permitted Torqne: |
110-18000n.M |
| Ratio: |
4.3-273(Max:18509) |
| Input Power: |
0.12-200kw |
| Installation Form: |
Flange Mounted, Foot Mounted or Torque Arm Mounted |
| Type: |
Circular Gear |
| Manufacturing Method: |
Forging Gear |
| Toothed Portion Shape: |
Helical |
Product Description
FEATURE 1. Highly Standard Modular Designed The products are easily connected with and driven by different types of motors or other kinds of input power. The same type geared motor can be adapted to optioned powers of motors. It's therefore easy to realize different solutions for varied requirements. 2. High strength, Compact dimension Housings are made of high strength cast iron. Gears and shaft gears are finished with gas carburising process and precise grouding to sequentially get high loading capacity of percertain volume. 3. Long service life Under the condition of accurately selection type size and the normal maintenance and use, main components(expect those easily-disabled parts)can last as long as up to more than 25, 000hours. Easily-disabled parts include lubricating oil, oil seals, and bearings. 4. Low noise All key components are finished by precisely machining, accurate assembly, and finally tested, and therefore, fairly low noise is reached. 5. High efficiency The efficiency of gear unit can reach 95%, The efficiency of worm gear unit can reach 89%. 6. Large radial loading ability 7. Axial load ability of up to 5%of radial load 8. Mounting Arrangemnet No strict limitation to the mounting arrangement. 9. Ratio Featured many closely divided ratios and wide range of them. Very big final ratios can be obtained through combined unites to reach extremely low output speeds. Gear unit weight
Size
| 38 | 48 | 58 | 68 | 78 | 88 | 98 | 108 | 128 | 158 |
Weight
| 13 | 18 | 34 | 55 | 90 | 150 | 260 | 402 | 700 | 950 |
The weights are mean values, only for reference.
Maximum torque means the biggest one of the maximum torque related to the different ratio for the specified size.
Rated Power
| 0.18KW~200KW |
Rated Torque
| Up to 18000N.m |
Gear Arrangement
| Parallel Helical Hardened Gearbox |
| Input Speed | 50HZ or 60HZ of 4Pole,6Pole and 8pole motor |
Ratio
| 3.81~281.71 |
If you have any demand for our products please feel free to contact me.
A high product quality, a wide production and a flexible structure are the strong points of Aokman® . Aokman® Is professional gearboxes manufacturer in China which was founded in 1982, specialized in research, development and manufacturing Shaft Mounted Gearbox, Standard Gearbox, Worm Gearbox, Planetary Gearbox, Industrial Gearbox, Cycloidal Gearbox, Customized Gearbox, and Gear Motors.
We can offer the proper solution for uncountable applications. Our products are widely used in the ranges of metallurgical, steel, mining, pulp and paper, sugar and alcohol market and various other types of machines. With a strong presence in the international market, we export mainly to South America, Middle East, North America and Asia. Our pillars are firmly planted in the relentless pursuit of excellence, innovation and competitiveness. The technology base stands out in our operation, featuring the latest equipment and the most modern information technology.
We are committed to win a partner rather than a simple supplier. Aokman® Has become a reliable supplier, able to supply high quality gearboxes. In fact, the entire production is developed inside our Company, thus it is submitted to an appropriate process control.
The products quality of Aokman® Allied to the security and efficiency of its management which makes its brand synonymous with credibility and transparency with its suppliers and customers. Make a good deal, always consult Aokman® Professionals! With 33 years experience, we assure you the utmost reliability and security for both product and services.
