Shenzhen Zhongkong Computers Co., Ltd. >> F1b Standalone Receipt Selfservice Kiosk Terminal

F1b Standalone Receipt Selfservice Kiosk Terminal

Name: F1b Standalone Receipt Selfservice Kiosk Terminal
Brand: China-Manufacturer-Directory.com
SKU: 666287121
Availability: InStock
Rating: 4.4 (27 reviews)

Supplier:	Shenzhen Zhongkong Computers Co., Ltd.
Price:	US $ 950-1250/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	F1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Optional
Host PC:	Industrial Computer
RAM:	4G
SSD:	60g SSD
Touchscreen:	17"/19" Touchscreen Monitor
Thermal Printer(Receipt Printer):	P80j 80mm High Speed Printer
Metal Keyboard:	Mkt2752 with Trackball
Audio:	2*5W Stereo Audio
Weight:	82 Kg
Size:	Customizable
Certification:	ISO
Type:	Kiosk Terminal

Product Description

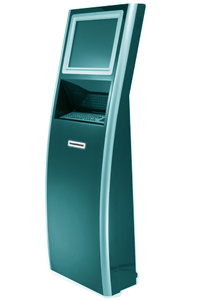

F1B is a standalone receipt selfservice terminal for internet access and information with mini thermal printer.

OEM/ODM is also welcome.

EATURES
Sleek and slim
Study structure with commercial host computer, touchscreen monitor, bank card reader, EPP, thermal printer
Waterproof infrared touchscreen monitor optional

Hardware Configurations&Specifications
	Host:	CPU:Intel Core i3 i2100 Motherboard: Intel B75 commercial motherboard RAM: 4G DDRIII HDD: 60G SSD
	Display:	Size: 15" TFT LCD(LED backlighted) Resolution: 800 x 600 Brightness: 300 cd/m Viewing Angle: 120/120
	Touch Screen:	Optical infrared or SAW touch screen Calibration: Once-Only, Four Points With no Drift Touch material: Finger, Gloved Hand or Any Other Pointer Activation force: No Pressure Required for infrared touch Response Time: 8ms
	3DES EPP keypad:	Keys: 16 keys Cryptography: 3DES Keys: laser print or chemical etch keys filled with color ink Super durability: over 2,000,000 times with 0.45mm knock gap Press strength:3N with temperature range -40~65C
	Bank card reader:	Hi-Co; swipe type; dual-direction TK1/2/3 magnetic card readable IBM\ISO\DIN\ANSI Interface:RS-232
	Receipt Thermal Printer(for F1E-15):	Themal Printer, Paper width:80mm, Paper roll: 180mm, Thickness:60 to 120g/m2 Print Speed: 220mm/s,resolution: 203 dpi (8 dots/mm) Automatic cutter only;out alarm/to be run out alarm,Jam Data buffer: 16 KB,Flash memory: 384 KB,Graphics memory: 2 logos OMR,Black mark sensor,remote accessible Full Status Monitor Driver Interface: RS232 / USB / Ethernet
	UPS:	Voltage range:170V~255V Power Rate:0.5KVA/260W Capacity:12V/32W×1 Transfergap:6ms;Overload power:450W Self-protection;overload protection;Error led alert; RJ45/RJ11 Interface USB/RS-232
	Camera:	CMOS 300,000 pixel with wide angel lens;Dynamic resolution:640×480 Support Insert Value upto 1.3m pixel; With adjustable rubber base and quick snap button Builtin microphone; smart face detection Interface: USB 2.0
	Audio:	Bi-channel amplified output; Multimedia stereo speaker
	Enclosure:	1.5mm all steel anti-graffiti enclosure
	Add-ons	Lightbox,Custom LOGO plate,custom painting, low noise ventilation fans,mechanic locks and keys,power cable, LAN cable, antenna(WIFI&3G/GPRS),fuse,expansion bolt

Software Specifications
	Operating System:	Windows XP, 7, Mac O/S
	Functionalities:	Cashless Payment Invoice printing Information Service

Accessories
	Included:	AC Power Cord LAN cable User Manual Drivers CD
	Optional:	External Stereo Speakers External PC 2nd display

Physical Characteristics
	Weight:	82 Kg
	Size:
	Color:	Blue, Sliver, Yellow, Black or other color
	Environmental:	5-40 Degrees (c) 20-80% Humidity Power Consumption 450 Watts

Shenzhen ZHONGKONG Computers Co. Ltd(ZKTEK hereinafter) is located in Shenzhen, China. We are the developer of custom kiosk and digital signage who have the designers and facilities to OEM and ODM your kiosk and digital signage with high quality and good price.

We developed a lot of custom and innovative solutions as project-specified models for dedicated tenders. Now ZKTEK has been a professional company that produces a series of high standard self-service terminals such as touchscreen kiosk, digital signage and other POS devices. With highly flexible integration of hardware and software, ZKTEK solutions have been deployed in many kinds of kiosk applications.

ZKTEK has the following latest main products and solutions:
A. Industrial computing and data entry for kiosk solutions
B. Internet kiosk, payment kiosk, gaming kiosk, iPad kiosk enclosure and iPad USB adaptor (iPad magnetic card reader)
C. Book and bicycle rent kiosk(dedicated for projects only)
D. Outdoor kiosks and digital signages
E. Mini printer with presenter and retractor (official patent pending)

ZKTEK has extensive experience in payment kiosk and related application development. We are also ready to develop outdoor and innovative (stainless steel, high brightness, LED backlighted, iPad card reading, full HD and Hi-Fi audio related) kiosk solutions. ZKTEK has a strong hardware and software engineering team. The engineers have rich experience in banking application development.

They have been doing bank projects for many years.
Since ZKTEK was established, we have defined the company business strategy to be Customer Focus Strategy. We are committed to providing innovative and customizable products, services and solutions to generate a long-term value and potential growth for our customers.

Based on our Customer Focus Strategy, we are developing more and more products and technologies for international customer unique requirements.
ZKTEK mission: To set the new standard of made in China products.
