F21-14s Radio Remote Control/Industrial Remote Control/Crane Remote Controller

Name: F21-14s Radio Remote Control/Industrial Remote Control/Crane Remote Controller
Brand: china-manufacturer-directory.com
SKU: 700541422
Availability: InStock
Rating: 4.5 (79 reviews)

Supplier:	Henan Yuding Electronics Corp., Ltd.
Price:	US $ 330/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	F21-14S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name:	F21-14s Radio Remote Control
Control Distance:	up to 100m
Control Point:	14
Unique Code:	Over 4.3billon Unique ID Codes
Temperature:	-35°c___+80°c
Enclosure Protection Class:	IP65
Receiver Power:	AC 380V/ 36V/220V or DC12V/24V
Transmitter Power:	DC3V
Output Capacity:	5 Amperes
Certificate:	CE, FCC, ISO9001:2008
Application:	Cranes, Hoists, Heavy Trucks, Excavator, Trailer,
Signal Transmission:	Radio Waves
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	>100m
Material:	Plastic
Battery Type:	AA Battery
Voltage:	AC 380V/ 36V/220V or DC12V/24V

Product Description

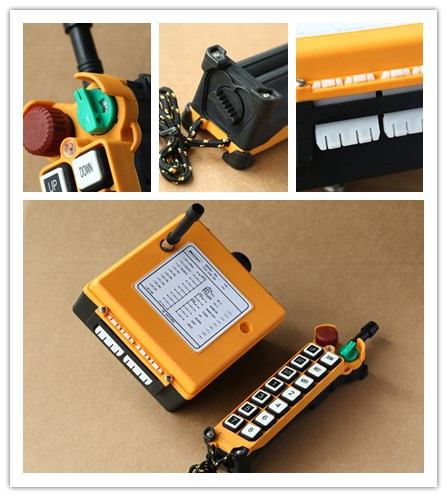

F21-14S radio remote control/industrial remote control/Crane remote controller

Summary:
1.More than 10 years researching and exporting experience in Radio Remote Control industry

2.More than 20 people R&D working team, have the ability to research and develop new product independently.

3. Have 15 production lines. we also have many production machines such Printing circuit board machine, SMT machine, automatic wave soldering machine, automatic soldering robot, etc. also have many testing machine.

4. Well and high quality control, all working process according to ISO9001:2008.

5. CE, FCC & ISO certificates.

6. OEM acceptable

7. One year warranty.

Application:

Widely applied for lifting equipment, construction machinery, cargo loading/unloading machines, water supply system, data transmission, the iron-smelting and steel-making, the automobile manufacturing, paper-making and chemical industry, steel structure processing, galvanization, shipbuilding, railroad, bridge, tunnel construction and other equipment and sites

which can be worked by radio controls.

Specifications:

Product name	wireless remote controlled electrical switch
Application	Overhead cranes, hoist ,chain hoist, other industrial machine
Frequency	310.0325~331.165Mhz
Frequency generation:	Crystal (plug in)
Channel	80
Channel Spacing	0.2675MHz
Control motions	14
Control distance	Up to 100m
Certificates	CE, FCC, ISO
Number of push button	14 single speed push button
Unique code	Over 4.3billon unique ID codes .
Working temperature	-35°C ~ +80°C
Enclosure protection class	IP65
Transmitter power	AA-size batteries
Receiver power	AC 380v/220V/110v/48v/ 36v/24v/12v or DC12V
Output capacity	Full sealed relay output with 5 amperes
Model	can be set normal,toggle,interlock or non-interlock
Material	glass fiber

Standard configuration:

One transmitter;

One receiver;

One 1m cable connect with receiver;

One operation and maintain manual.

Notes:

The LED on the front of the transmitter indicates the condition of the batteries. It will flash green during operation if the battery power is sufficient, and will flash red if the battery power is low.

If the LED is flashing red, or if the operation becomes erratic, or will only work from a short distance, replace both batteries with new AA alkaline batteries.

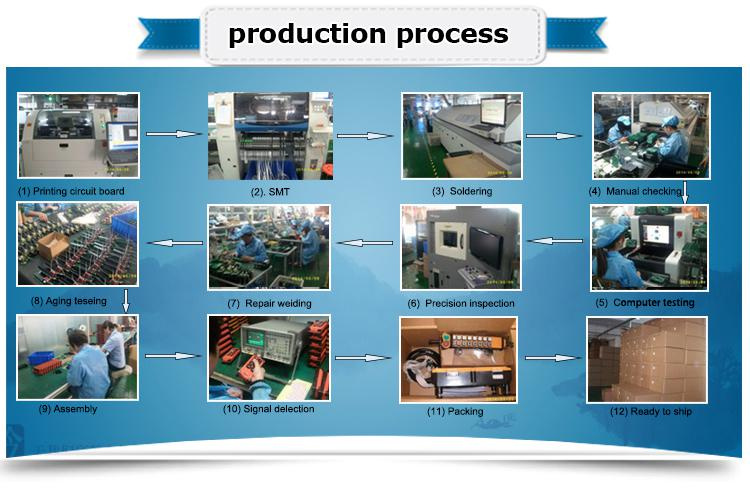

Production Process:

Certificates:

Henan Yuding Electronics Crop., Ltd (former Zhengzhou Yuding Electronics Co., Ltd) is an industrial radio remote controls manufacturer in China. Established in August, 2010, With more than 10 years experience on this industrial remote control system business area. Headquartered in Zhengzhou, Henan province. Yuding has so many experts in the industrial radio remote controller area to assure workers safety and productivity, Yuding are becoming one of the leading companies in this industry in China.

Our main products is: F21 Series radio remote controls, F23 series radio remote controls, F24-60 Dual Joystick radio remote control and explosion-proof remote controls. All these remote controls are easy to operate to keep workers safety and productivity. All our products are CE & FCC Certificate.

Quality is company's life. From the raw material testing, manufacturing, aging test and assembly, Each process are operate according to ISO9001: 2008 & international quality control system to guarantee the products quality. Competitive price with excellent quality and good after-sales service make our Internal customers are covered Over 400 cities of 33 countries. We also have built long-term business relationship with the foreign customers.

We here sincerely hope to establish partnership with you and your esteem company.
