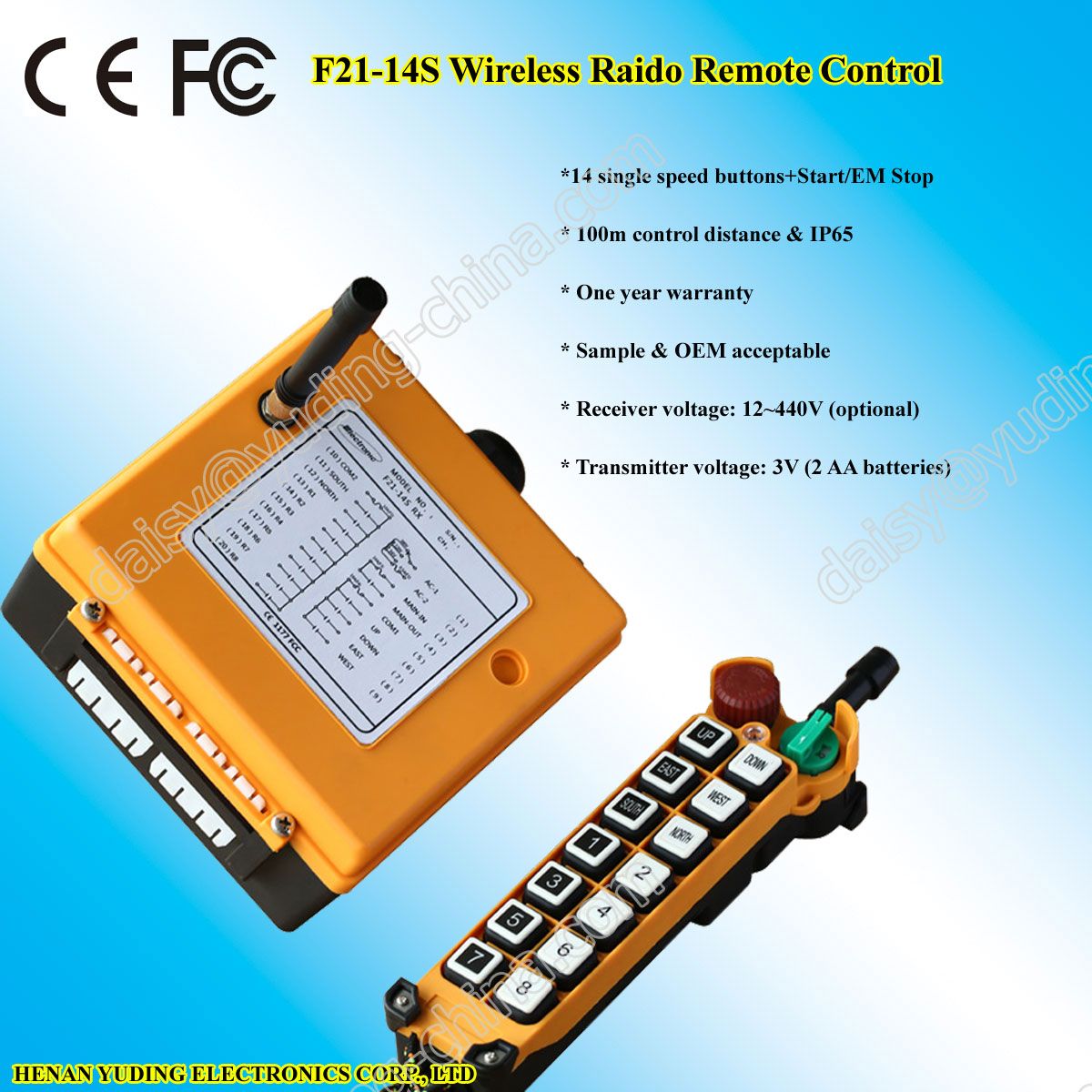

F21-14S Single speed remote controller
Product Description
1. More than 10 years researching and exporting experience in Radio Remote Control industry.
2. More than 20 people R&D working team, have the ability to research and develop new product independently.
3. Have 15 production lines. we also have many production machines such Printing circuit board machine, SMT machine, automatic wave soldering machine, automatic soldering robot, etc. also have many testing machine.
4. Well and high quality control, all working process according to ISO9001:2008.
5. CE, FCC & ISO certificates.
6. OEM acceptable
7. One year warranty
Specification:
Product name |
Single speed remote controller |
Application |
Overhead cranes, hoist ,chain hoist, other industrial machine |
Frequency |
310.0325~331.165Mhz |
Frequency generation: |
Crystal (plug in) |
Channel |
80 |
Channel Spacing |
0.2675MHz |
Control motions |
14 |
Control distance |
Up to 100m |
Certificates |
CE, FCC, ISO |
Number of push button |
14 single speed push button |
Unique code |
Over 4.3billon unique ID codes . |
Working temperature |
-35°C ~ +80°C |
Enclosure protection class |
IP65 |
Transmitter power |
AA-size batteries |
Receiver power |
AC 380v/220V/110v/48v/ 36v/24v/12v or DC12V |
Output capacity |
Full sealed relay output with 5 amperes |
Model |
can be set normal,toggle,interlock or non-interlock |
Material |
glass fiber |
Application of Single speed remote controller:
Widely applied for lifting equipments, construction machinery, cargo loading/unloading machines, water supply system, data transmission, the iron-smelting and steel-making, the automobile manufacturing, papermaking and chemical industry, steel structure processing, galvanization, shipbuilding, railroad, bridge, tunnel construction and other equipments and sites
which can be worked by radio controls.
Standard configuration:
One transmitter ;
One receiver;
One 1m cable connect with receiver
One operation and maintain manual .
Notes of Single speed remote controller:
The LED on the front of the transmitter indicates the condition of the batteries. It will flash green during operation if the battery power is sufficient, and will flash red if the battery power is low.
If the LED is flashing red, or if the operation becomes erratic, or will only work from a short distance, replace both batteries with new AA alkaline batteries.
Henan Yuding Electronics Crop., Ltd (former Zhengzhou Yuding Electronics Co., Ltd) is an industrial radio remote controls manufacturer in China. Established in August, 2010, With more than 10 years experience on this industrial remote control system business area. Headquartered in Zhengzhou, Henan province. Yuding has so many experts in the industrial radio remote controller area to assure workers safety and productivity, Yuding are becoming one of the leading companies in this industry in China.
Our main products is: F21 Series radio remote controls, F23 series radio remote controls, F24-60 Dual Joystick radio remote control and explosion-proof remote controls. All these remote controls are easy to operate to keep workers safety and productivity. All our products are CE & FCC Certificate.
Quality is company's life. From the raw material testing, manufacturing, aging test and assembly, Each process are operate according to ISO9001: 2008 & international quality control system to guarantee the products quality. Competitive price with excellent quality and good after-sales service make our Internal customers are covered Over 400 cities of 33 countries. We also have built long-term business relationship with the foreign customers.
We here sincerely hope to establish partnership with you and your esteem company.
