Product Specifications
| Prod Model: |
F21-2S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
F21-2s Industrial One Speed Radio Remote Control |
| Control Distance: |
up to 100m |
| Control Point: |
2 |
| Unique Code: |
Over 4.3billon Unique ID Codes |
| Temperature: |
-35°c___+80°c |
| Enclosure Protection Class: |
IP65 |
| Receiver Power: |
AC 380V/ 36V/220V or DC12V/24V |
| Transmitter Power: |
DC3V |
| Output Capacity: |
5 Amperes |
| Certificate: |
CE, FCC, ISO9001:2008 |
| Application: |
Cranes, Hoists, Heavy Trucks, Excavator, Trailer, |
| Signal Transmission: |
Radio Waves |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
>100m |
| Material: |
Plastic |
| Battery Type: |
AA Battery |
| Voltage: |
AC 380V/ 36V/220V or DC12V/24V |
Product Description

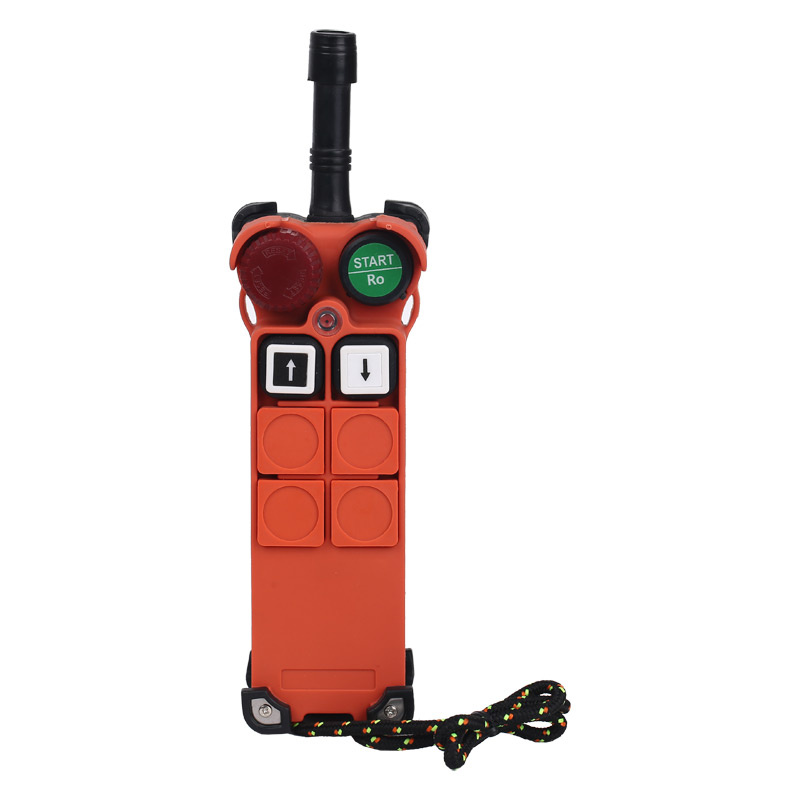

F21-2S industrial one speed radio remote control
Summary:
1. More than 10 years researching and exporting experience in Radio Remote Control industry.
2. Well and high quality control, all working process according to ISO9001:2008.
3. CE, FCC & ISO certificates.
4. One year warranty.
5. Sample order acceptable.
6. OEM acceptable.
Brief Introduction:
|
Transmitter |
Receiver |
Size(mm) |
196*65*53 |
171*86*85 |
Weight(g) |
320g |
550g |
Products Features:
--Two single push button and one EMS button + one START button.
--Control point up to 2.
--With the battery voltage alarm device to cut off the circuit when voltage is insufficient.
--With the Rotate key switch to guarantee the safety.
--Set the internal functions by computer interface.
--UP,DOWN push button can be set jump strokes,ordinary, mutual inhibition or not.
SPECIFICATION:
Application | Hoist, winches, lifts, doors and other industrial machine |
| Frequency | 310.0325~331.165Mhz |
| Frequency generation: | Crystal (plug in) |
| Channel | 80 |
| Channel Spacing | 0.2675MHz |
| Control motions | 2 |
| Control distance | Up to 100m |
| Certificates | CE, FCC, ISO9001:2008 |
| Number of push button | 2 Single speed push button +1 start+1 stop |
| Unique code | Over 4.3billon unique ID codes . |
| Working temperature | -35°C ~ +80°C |
| Enclosure protection class | IP65 |
| Transmitter power | AA-size batteries |
| Receiver power | AC 380v/220V/110v/48v/ 36v/24v or AC/DC12V |
| Output capacity | Full sealed relay output with 5 amperes |
| Warranty | 1 year |
| Material | glass fiber |
Standard Configuration:
One transmitter;
One receiver;
One 1m cable connect with receiver;
One operation and maintain manual.
