Product Specifications
| Prod Model: |
F21-4D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Wireless Remote Control System |
| Control Distance: |
up to 100m |
| Control Motions: |
6 |
| Unique Code: |
Over 4.3 Billon Unique ID Codes |
| Working Temperature: |
-35 Deg C~ +80 Deg C |
| Enclosure Protection Class: |
IP 65 |
| Transmitter Power: |
DC 6V (4 AA Batteries) |
| Reciver Power: |
AC 380V/ 36V/220V or DC12V |
| Output Capacity: |
Full Sealed Relay Output with 5 Ampers |
| Frequency: |
310.00~330MHz |
| Application: |
Industrial Machinery |
| Signal Transmission: |
Radio Waves |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Not Universal |
| Transmission Distance: |
50-100m |
| Battery Type: |
AA Battery |
| Voltage: |
Optional |
Product Description

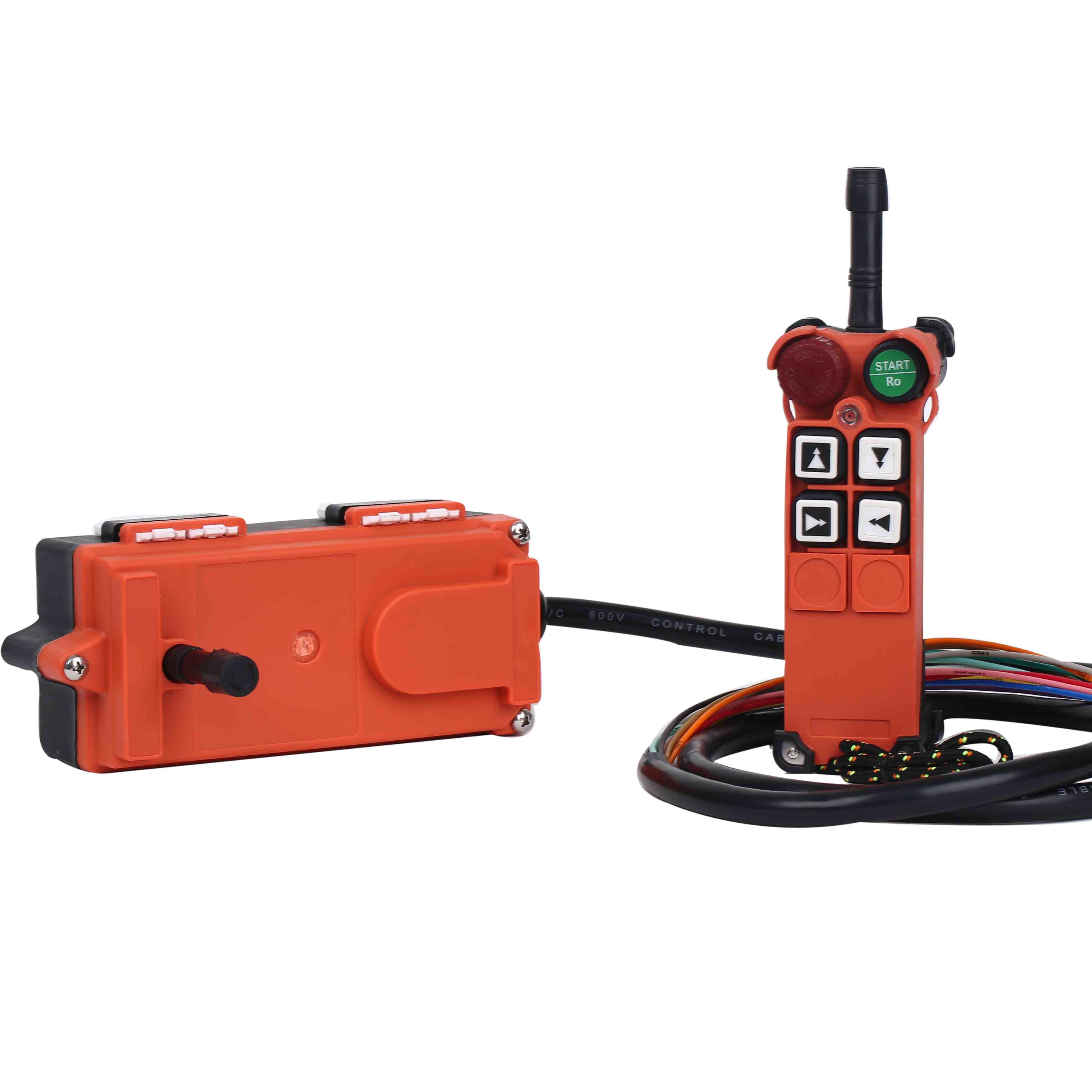

wireless remote control system F21-4D
Product Description
1. More than 10 years researching and exporting experience in Radio Remote Control industry.
2. Well and high quality control, all working process according to ISO9001:2008.
3. CE, FCC & ISO certificates.
4. One year warranty.
5. Sample order acceptable.
6. OEM acceptable.
Specification:
Control distance |
Up to 100m |
Control point |
6 |
Certificates |
CE, FCC, ISO |
Unique code |
Over 4.3billon unique ID codes . |
Working temperature |
-35°C___+80°C |
Enclosure protection class |
IP65 |
Transmitter power |
DC3v |
Receiver power |
AC 380v/ 36v/220V or DC12V/24V |
Output capacity |
Full sealed relay output with 5 amperes |
Products Application of wireless remote control system:
Single hook,Single speed hoist and Hoist crane and for industrial wireless remote control use which under 6 control points etc,
Brief Introduction
Transmitter Size:196*65*53mm wight:320g
Receiver Size:171*86*85mm weight:550g
Specification:
control distance: up to 100m
unique code : over 4.3billon unique ID codes .
temperature : -35°C-+80°C
Enclosure protection class : IP65
Transmitter power: DC3v
Receiver powder : AC 380v/ 36v/220V or DC12V/24V
output capacity: full sealed relay output with 5 amperes
Standard configuration:
One transmitter ;
One receiver;
One 1m cable connect with receiver
One operation and maintain manual .
Products Features:
*Four Dual speed push button and one EMGS button + one SWITCH
*control point up to 6
*With the battery voltage alarm device to cut off the circuit when voltage is insufficient.
*with the Rotate key switch to guarantee the safety.
*set the internal functions by computer interface
*four push button can be set mutual inhibition or not .
*Up ,Down ,East ,West can be set start ,close,speed up,jump strokes,ordinary etc.
