Product Specifications
| Prod Model: |
F21-E1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
220V Wireless Remote Control Switch |
| Control Distance: |
up to 100m |
| Control Point: |
6 |
| Unique Code: |
Over 4.3billon Unique ID Codes |
| Temperature: |
-35°c___+80°c |
| Enclosure Protection Class: |
IP65 |
| Transmitter Power: |
DC3V |
| Receiver Powder: |
AC 380V/ 36V/220V or DC12V/24V |
| Output Capacity: |
Full Sealed Relay Output with 5 Amperes |
| Certificate: |
CE, FCC, ISO9001:2008 |
| Application: |
Industrial Machinery |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Not Universal |
| Transmission Distance: |
50-100m |
| Battery Type: |
AA Battery |
| Voltage: |
Optional |
| Material: |
Glass Fiber-Reinforced Nylon-6 |
Product Description

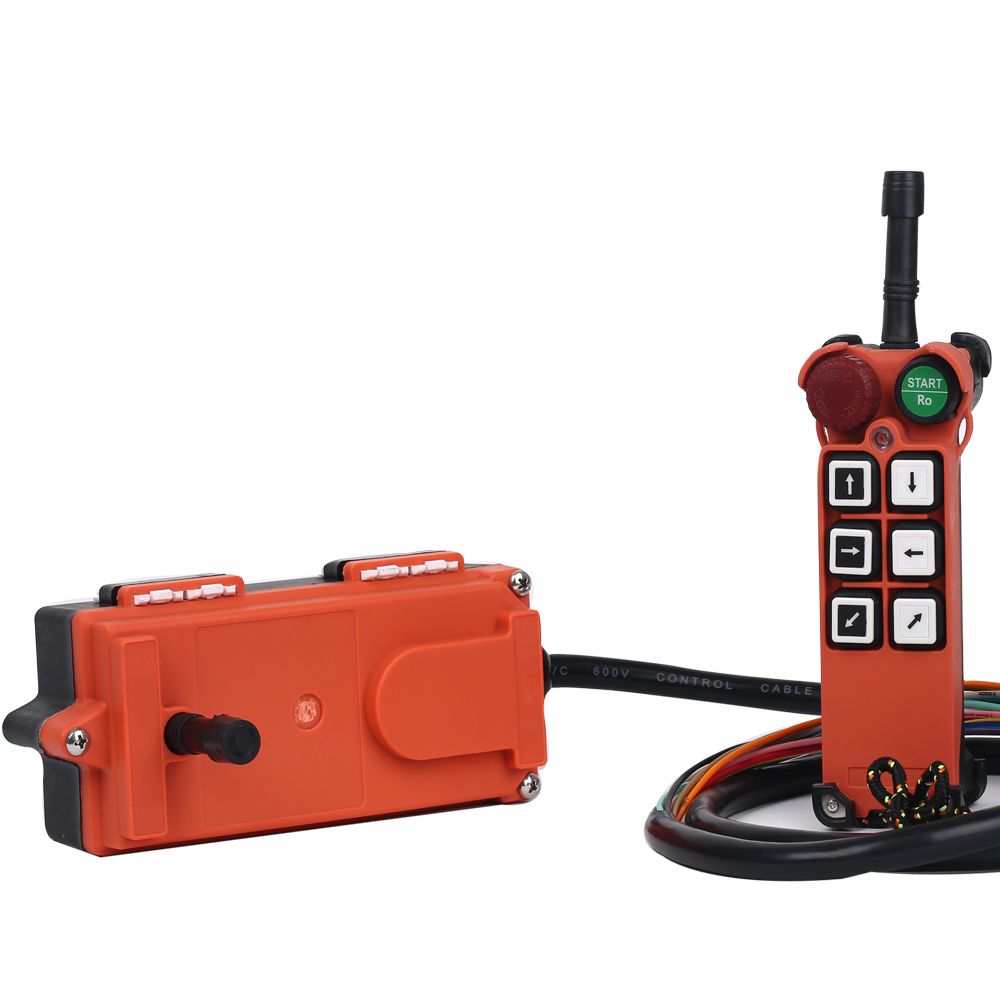

F21-E1 220v wireless remote control switch
Company advantages:
1. More than 10 years researching and exporting experience in Radio Remote Control industry.
2. Well and high quality control, all working process according to ISO9001:2008.
3. CE, FCC & ISO certificates.
4. One year warranty.
5. Sample order acceptable.
6. OEM acceptable
Basic information:
| Control distance | Up to 100m |
| Control Motions | 6 |
| Frequency generation | Crystal |
| Structure | Glass-Fiber |
| Operation frequency | 310.0325-331.165 MHz, 433Mhz |
| Certificates | CE, FCC, ISO9001:2008 |
| Unique code | Over 4.3billon unique ID codes . |
| Working temperature | -35°C___+80°C |
| Output capacity | Full sealed relay output with 5 amperes |
Features of 220v wireless remote control switch:
*6 Single speed push buttons +one EMGS button + one SWITCH
* control points up to 6
* With the battery voltage alarm device to cut off the circuit when voltage is insufficient.
* with the Rotate key switch to guarantee the safety.
* set the internal functions by computer interface
* up/down,east/west,south/north push button can be set start ,close,speed up,jump strokes,ordinary etc
Standard configuration:
One transmitter ;
One receiver;
One 1m cable connect with receiver
One operation and maintain manual .
Packaging & Shipping:
10 sets per carton
Notes of 220v wireless remote control switch:
The LED on the front of the transmitter indicates the condition of the batteries. It will flash green during operation if the battery power is sufficient, and will flash red if the battery power is low. If the LED is flashing red, or if the operation becomes erratic, or will only work from a short distance, replace both batteries with new AA alkaline batteries.
