Product Specifications
| Prod Model: |
F21-E1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Industrial Remote Control System |
| Control Distance: |
up to 100m |
| Control Motion: |
6 |
| Unique Code: |
Over 4.3billon Unique ID Codes |
| Temperature: |
-35°c___+80°c |
| Enclosure Protection Class: |
IP65 |
| Output Capacity: |
Full Sealed Relay Output with 5 Amperes |
| Certificate: |
CE, FCC, ISO9001:2008 |
| Application: |
Industrial Machinery |
| Signal Transmission: |
Radio Waves |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Not Universal |
| Transmission Distance: |
50-100m |
| Battery Type: |
AA Battery |
| Voltage: |
Optional |
| Material: |
Glass Fiber-Reinforced Nylon-6 |
Product Description

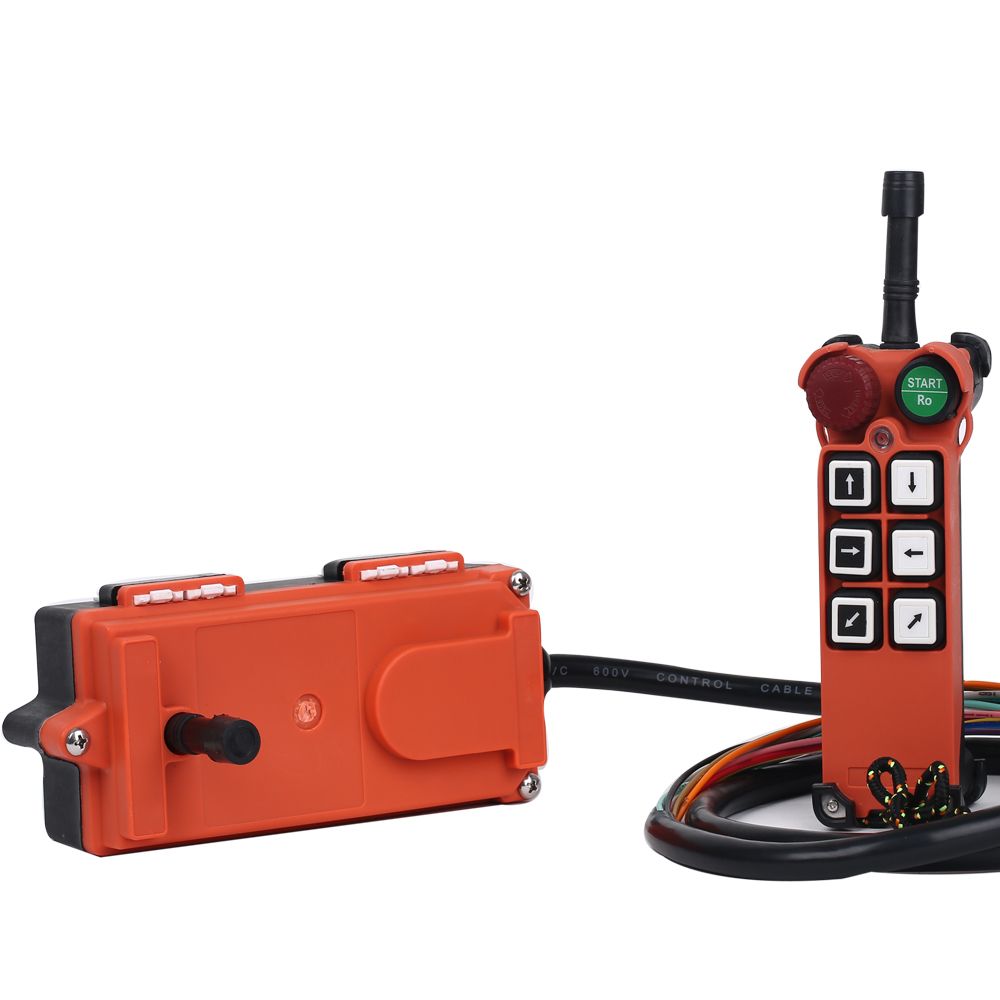

F21-E1 industrial remote control system
Company advantage:
1. More than 10 years researching and exporting experience in Radio Remote Control industry.
2. Well and high quality control, all working process according to ISO9001:2008.
3. CE, FCC & ISO certificates.
4. One year warranty.
5. Sample order acceptable.
6. OEM acceptable
Specification:
| Control distance | Up to 100m |
| Control Motions | 6 |
| Frequency generation | Crystal |
| Structure | Glass-Fiber |
| Operation frequency | 310.0325-331.165 MHz |
| Certificates | CE, FCC, ISO9001:2008 |
| Unique code | Over 4.3billon unique ID codes . |
| Working temperature | -35°C___+80°C |
| Output capacity | Full sealed relay output with 5 amperes |
Features of industrial remote control system:
*6 Single speed push buttons +one EMGS button + one SWITCH
* control points up to 6
* With the battery voltage alarm device to cut off the circuit when voltage is insufficient.
* with the Rotate key switch to guarantee the safety.
* set the internal functions by computer interface
* up/down,east/west,south/north push button can be set start ,close,speed up,jump strokes,ordinary etc
Standard configuration:
One transmitter ;
One receiver;
One 1m cable connect with receiver
One operation and maintain manual
.
Application of industrial remote control system:
Widely applied for lifting equipments, construction machinery, cargo loading/unloading machines, water supply system, data transmission, the iron-smelting and steel-making, the automobile manufacturing, papermaking and chemical industry, steel structure processing, galvanization, shipbuilding, railroad, bridge, tunnel construction and other equipments and sites which can be worked by radio controls.
Notes of industrial remote control system:
The LED on the front of the transmitter indicates the condition of the batteries. It will flash green during operation if the battery power is sufficient, and will flash red if the battery power is low. If the LED is flashing red, or if the operation becomes erratic, or will only work from a short distance, replace both batteries with new
AA alkaline batteries.
Henan Yuding Electronics Crop., Ltd (former Zhengzhou Yuding Electronics Co., Ltd) is an industrial radio remote controls manufacturer in China. Established in August, 2010, With more than 10 years experience on this industrial remote control system business area. Headquartered in Zhengzhou, Henan province. Yuding has so many experts in the industrial radio remote controller area to assure workers safety and productivity, Yuding are becoming one of the leading companies in this industry in China.
Our main products is: F21 Series radio remote controls, F23 series radio remote controls, F24-60 Dual Joystick radio remote control and explosion-proof remote controls. All these remote controls are easy to operate to keep workers safety and productivity. All our products are CE & FCC Certificate.
Quality is company's life. From the raw material testing, manufacturing, aging test and assembly, Each process are operate according to ISO9001: 2008 & international quality control system to guarantee the products quality. Competitive price with excellent quality and good after-sales service make our Internal customers are covered Over 400 cities of 33 countries. We also have built long-term business relationship with the foreign customers.
We here sincerely hope to establish partnership with you and your esteem company.
