F24 Series Crane Radio Remote Control

Product Specifications

Prod Model:	F24 Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	F24 Series Crane Radio Remote Control
Control Distance:	up to 100m
Certificates:	CE, FCC, ISO
Frequency Generation:	Crystal
Structure:	Glass-Fiber
Unique Code:	Over 4.3billon Unique ID Codes
Working Temperature:	-35 Deg C___+80 Deg C
Output Capacity:	Full Sealed Relay Output with 5 Amperes
Application:	Industrial Machinery
Signal Transmission:	Radio Waves
Type:	Button
Certification:	CE
Universal:	Not Universal
Transmission Distance:	50-100m
Battery Type:	AA Battery
Voltage:	Optional
Material:	Glass Fiber-Reinforced Nylon-6

Product Description

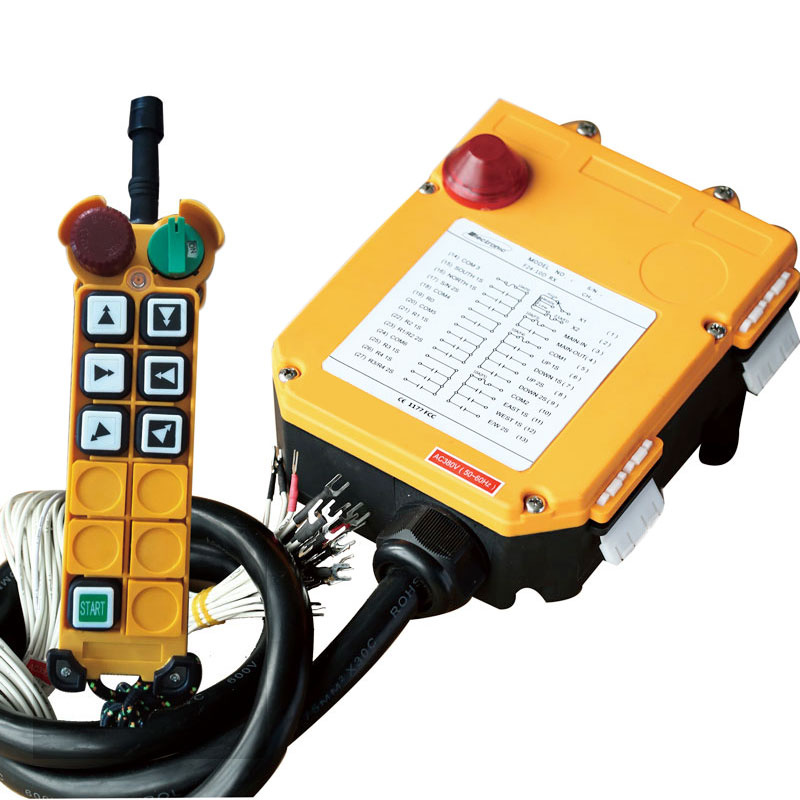

F24 Series Crane Radio Remote Control

®F24 Series crane radio remote control mainly used on bridge crane, gantry crane, tower crane and other industrial using.®


Product Description
1. More than 10 years researching and exporting experience in Radio Remote Control industry.
2. More than 20 people R&D working team, have the ability to research and develop new product independently.
3. Have 15 production lines. we also have many production machines such Printing circuit board machine, SMT machine, automatic wave soldering machine, automatic soldering robot, etc. also have many testing machine.
4. Well and high quality control, all working process according to ISO9001:2008.
5. CE, FCC & ISO certificates.
6. OEM acceptable
7. One year warranty

Specification:

	Buttons	Control motions	Specification
F24-6D	6 dual speed +Start	10	1. Water-proof, IP 65, can be used inner or outside.  2. Glass fiber and engineering-plastics make the cover strong, avoid damage cause by high falling or gravity roller.  3. Control distance can reach to 100m  4. Wide receiver voltage can meet different requirement.  5. One year warranty. 6. Free transmitter protecting cover available.  7. Sample & OEM acceptable 8. CE, FCC certificates.
F24-8S	8 single speed +Start	8
F24-8D	8 dual speed+ Start	13
F24-10S	10 single speed +Start	10
F24-10D	10 dual speed +Start	16
F24-12S	10 single speed +Start+F1	11
F24-12D	10 dual speed +Start+F1	18

Application:
Widely applied for lifting equipments, construction machinery, cargo loading/unloading machines, water supply system, data transmission, the iron-smelting and steel-making, the automobile manufacturing, papermaking and chemical industry, steel structure processing, galvanization, shipbuilding, railroad, bridge, tunnel construction and other equipments and sites
 which can be worked by radio controls.

Standard configuration:
                          One transmitter ;
                          One receiver;
                          One 1m cable connect with receiver
                          One operation and maintain manual .

Notes of remote control switch:
The LED on the front of the transmitter indicates the condition of the batteries.  It will flash green during operation if the battery power is sufficient, and will flash red if the battery power is low.
If the LED is flashing red, or if the operation becomes erratic, or will only work from a short distance, replace both batteries with new AA alkaline batteries.
