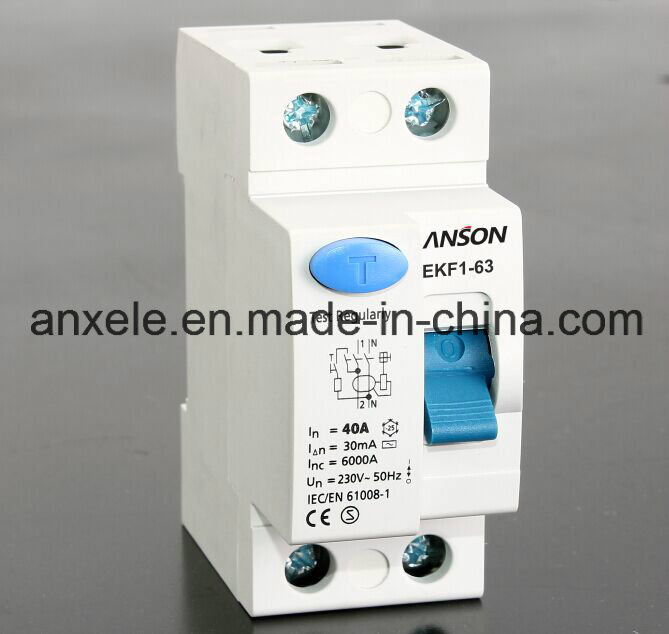

F360 Residual Current Circuit Breaker RCCB

Product Specifications

Prod Model:	EKF1-63 2P
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Mode No:	Ekf1-63
Shell Material:	PA66
Machining:	OEM or ODM
Protection Degree:	IP20
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Certification:	CB
Structure:	RCCB
Poles Number:	2p,4p

Product Description

Product Description
Free samples can be provided!!!
Product Description

Electrical Features
Type (wave form of the earth leakage sensed): AC, A, AC~S, A~S
Rated current In: 25, 40, 50, 63A
Poles: 2P, 4P
Rated voltage Ue: 240/415V
Rated sensitivity In: 0.03, 0.1, 0.3A
Insulation voltage Ui: 500V
Rated residual making and breaking capacity
Im: 500A(In=25A/40A) 630A(In=50/63A)
Short-circuit current Inc=Ic: 4500/6000A
SCPD fuse:
Break time under In: ≤ 0.1s
Rated frequency: 50/60Hz
Rated impulse withstand voltage (1.2/50)Uimp: 4000V
Dielectric TEST voltage at ind. Freq. For 1min: 2.5kV
Pollution degree: 2

Mechanical Features
Electrical life: 2, 000
Mechanical life: 2, 000
Fault current indicator: Yes
Protection degree: I P20
Ambient temperature (with daily average≤ 35º C): -5º C...+40º C
Storage temperation: -25º C...+70º C

Installation
Terminal connection type: Cable/U-type busbar/Pin-type busbar
Terminal size top/bottom for cable: 25mm2 18-3AWG
Terminal size top/bottom for busbar: 25mm2 18-3AWG
Tightening torque 2.5 N*m 18In-Ibs.
Mounting: On DIN rail EN 60715 (35mm) by means of fast clip device
Connection: From top and bottom

RCCB EKF1-63
In	Code			QTY/CTN
	0.03A	0.1A	0.3A
2P   AC
25A	1L61N25003	1L61N2501	1L61N2503	90
40A	1L61N40003	1L61N4001	1L61N4003	90
50A	1L61N50003	1L61N5001	1L61N5003	90
63A	1L61N63003	1L61N6301	1L61N6303	90
4P   AC
25A	1L63N25003	1L63N2501	1L63N2503	45
40A	1L63N40003	1L63N4001	1L63N4003	45
50A	1L63N50003	1L63N5001	1L63N5003	45
63A	1L63N63003	1L63N6301	1L63N6303	45
2P   A
25A	1L61N25003A	1L61N2501A	1L61N2503A	90
40A	1L61N40003A	1L61N4001A	1L61N4003A	90
50A	1L61N50003A	1L61N5001A	1L61N5003A	90
63A	1L61N63003A	1L61N6301A	1L61N6303A	90
4P   A
25A	1L63N25003A	1L63N2501A	1L63N2503A	45
40A	1L63N40003A	1L63N4001A	1L63N4003A	45
50A	1L63N50003A	1L63N5001A	1L63N5003A	45
63A	1L63N63003A	1L63N6301A	1L63N6303A	45
2P   AC  S
25A	1L61N25003S	1L61N2501S	1L61N2503S	90
40A	1L61N40003S	1L61N4001S	1L61N4003S	90
50A	1L61N50003S	1L61N5001S	1L61N5003S	90
63A	1L61N63003S	1L61N6301S	1L61N6303S	90
4P   AC  S
25A	1L63N25003S	1L63N2501S	1L63N2503S	45
40A	1L63N40003S	1L63N4001S	1L63N4003S	45
50A	1L63N50003S	1L63N5001S	1L63N5003S	45
63A	1L63N63003S	1L63N6301S	1L63N6303S	45
2P   A   S
25A	1L61N25003AS	1L61N2501AS	1L61N2503AS	90
40A	1L61N40003AS	1L61N4001AS	1L61N4003AS	90
50A	1L61N50003AS	1L61N5001AS	1L61N5003AS	90
63A	1L61N63003AS	1L61N6301AS	1L61N6303AS	90
4P   A   S
25A	1L63N25003AS	1L63N2501AS	1L63N2503AS	45
40A	1L63N40003AS	1L63N4001AS	1L63N4003AS	45
50A	1L63N50003AS	1L63N5001AS	1L63N5003AS	45
63A	1L63N63003AS	1L63N6301AS	1L63N6303AS	45
