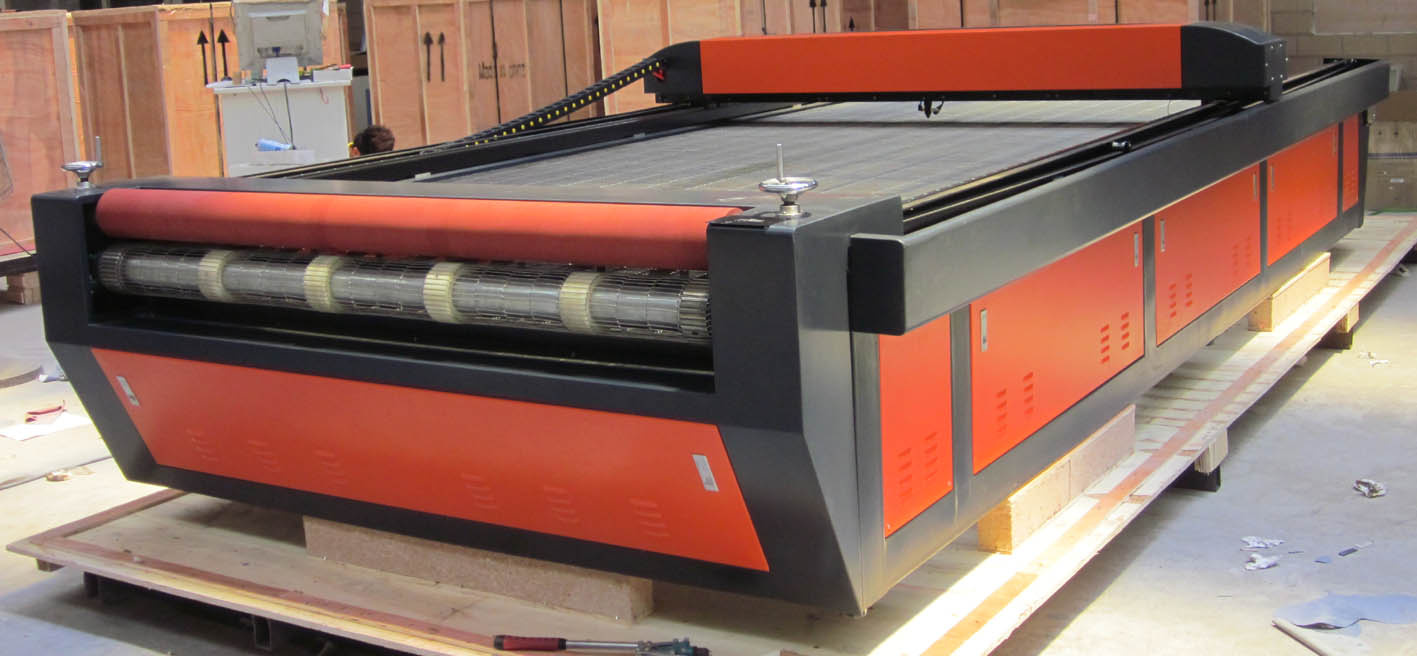

Fabric/cloth/garments Laser Cutter with auto feeding system(FLC1640A)
Model: FLC1640A
Applicable Industries:
Fabric cutting, Garments sampling, large format tailoring, leather industry, shoemaking, decoration, furniture, advertisement, packing and printing, Craft gifts industries etc.
Features:
1) The rolled materials are fed to the working table automatically.
2) Unique design: Rotating table, auto-feeder at back and materials holder at front.
3) Long and strictly tested main parts ensure stability and long life of the machines.
4) This machine uses USB port and USB flash disk to transmit data, improving working speed and efficiency greatly.
5) You can control the feeding speed in the software and by LCD panel offline.
Technical Parameter:
1) Model: Auto Feeding Laser Cutting Machine FLC1640A
2) Laser-type: Hermetic and detached CO2 laser tube
3) Laser-power: 60W/90W/100W/130W
4) Cooling Mode: Circulating-water-cooling
5) Power Adjustment: 0-100% controlling, no segment and adjusting by software
6) Machine Control and Drive: Speedy DSP controlling, stepper motor
7) Max Engraving Speed: 1000mm/s
8) Max Cutting Speed: 300mm/s
9) Repeating Location: ± 0.01mm
10) Minimum Character: Chinese character 1.5mm, crisscross-row 1mm
11) Max Power: <2500W
12) Adjustable Up-down Distance of Laser Head: 30mm
13) Working Travel Area: 1600*4000mm, 2200mm width with infinity material-feeding
14) Working Voltage: AC220V 50Hz
15) Working Environment: Temperature: 0-45, Humidity: 5%-95%, and congeal-water removed
16) Controlling Software Language: English
17) Dictate Format: *. Plt, *. Dst, *. Dxf, *. BMP, *. Dwg, *. Al, *las,
18) Support Software: AutoCAD, CoreDraw direct outputting
19) Packaging: Wooden box
20) Machine Color: Red/Grey (or customed)
21) Delivery Time: 15 working days
22) Payment: T/T
Flying Technology Development Limited was established in 2008. We are well known for our superior quality and service in the field of engineering and manufacturing of Laser Equipment and CNC Router that includes: Laser Engraving and Cutting Machine, Laser Seal Machine, CNC Router, CNC plasma cutting mach, Cutting Plotter, and so on.
Flying Technology Development Limited imports high quality manufacture technology to improve our products for our customers.
Our company is famous for high quality and better after-sale service as the competitive price.
Our products are widely used in the following industry, such as Woodworking, Advertising, Artmaking, Model, Electric, CAD/CAM Industry Model, Clothing, Package Printing, Marking, Laser Sealing and so on.
Our company managing idea is improving the high quality products for customers.
We are searching the distributors around the world. Hope we can cooperate for the world market.
