Product Specifications
| Prod Model: |
2CL2FP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Manufacturing Technology: |
Logic IC |
| Material: |
Element Semiconductor |
| Type: |
Intrinsic Semiconductor |
| Package: |
PGA(',Pin Grid Array Package) |
| Batch Number: |
2015+ |
| Brand: |
Hvdiode |
Product Description
|
|

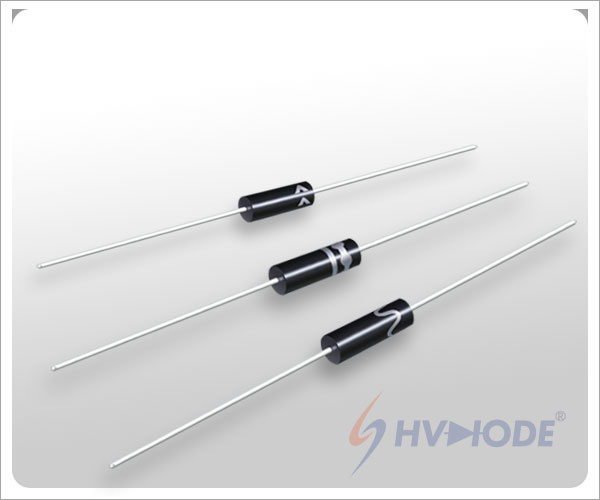

Anshan Suly Electronics Co.,Ltd is a diode factory ,specializing in high voltage rectifier diodes,high voltage rectifier silicon block,high voltage bridge diode etc.
We have many types of diodes,If you are interested in our products,welcome to contact with me ,thank you ! |
|
|
|
Type No. |
VRRM KV |
IO mA |
IFSM A |
VFM V |
IR μA |
TRRnS |
Tstg (ºC) |
PDF | | Ta=25ºC | IF=5mA | | 2CL2F | 8 | 100 | 20 | 10 | 0.1 | -- | 40~+130 |
| | 2CL2G | 10 | 12 |
| | 2CL2H | 12 | 13 |
| | 2CL2J | 15 | 16 |
|
Type No. |
VRRM KV |
IO mA |
IFSM A |
VFM V |
IR μA |
TRRnS |
Tstg (ºC) |
PDF | | Ta=25ºC | IF=5mA | | 2CL2FF | 8 | 100 | 20 | 16 | 2 | 100 | 40~+120 |
| | 2CL2FG | 10 | 18 |
| | 2CL2FH | 12 | 20 |
| | 2CL2FL | 15 | 24 |
| | 2CL2FM | 20 | 35 |
|
|
|
|
|
|
|
|
Anshan Suly Electronics Co.,Ltd is a diode factory ,specializing in high voltage rectifier diodes,high voltage rectifier silicon block,high voltage bridge diode etc.
We have many types of diodes,If you are interested in our products,welcome to contact with me ,thank you !
Anshan SULY Electronics Co., Ltd established in 2008, located in economic& technical development zone, Anshan City, Liaoning province, China, convenient transportation. Our company is key enterprises and research institutions of the State and the pointed producing site for High Voltage Device.
Our company is mainly engaged in X-ray machine with high voltage silicon stack, Pulse power with high pressure of silicon, Power supply of laser with high voltage silicon stack and the whole series of Kenotron, High voltage silicon rectifier stack, High voltage rectifier bridge, High voltage rectification components. Our company is the collection product research and development, the production, the sale in a body.
• The voltage range is from 2KV to 1000KV
• The current range is from 1mA to 100A
• The working efficiency is from 50Hz to 100kHz
Our all products adopt international quality standard, sold in the United States, Russia, Japan, Korea and southeast Asia, and well received by customers.
If your company is interested in any of our product or order intention, please feel free to contact us. We look forward to working with customers around the world to work together to create a better future.
