Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Package: |
Pallet, Manmade Wooden Case or as Your Requirement |
| Certificate: |
ISO9001 SGS |
| Origine: |
Qingdao |
| Brand: |
Chifine |
| Supply Ability: |
200000 Piece/Pieces Per Month |
| Service: |
OEM and ODM |
| Delivery Time: |
15 Days After |
Product Description

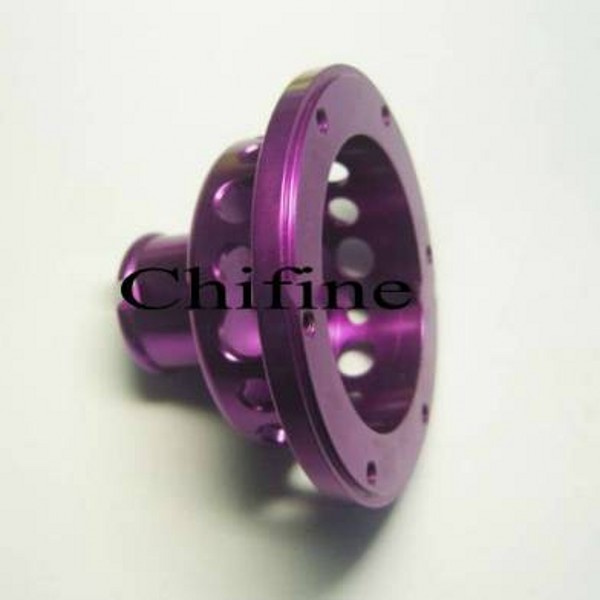

Custom precision machining cnc part
1. Material available:
Cold & hot rolled Steel, Galvanized steel, Stainless steel
Aluminum alloy, Brass, Copper, Plastic, Nylon, Fiberglass
Or arroding to customer requirments
2. Equipment:
5ton -500ton High speed stamping machine
Cnc machine, Milling machine, drilling machine
Cuting machine, Latching machine
3. Products Processing:
Milling, Drilling, Threading, Electric Welding,
Finish polising, Parts assebling
4. Surface treatment:
Zinc, Zinc with Trivalent chromate, Yellow zinc plated
HDG, Power coating, Nickel, Chrome, Black anodizing
5. Inspection:
Coating thickness tester, Roughness tester,
Go /Ungo Gauge, Sault spray testing machine,
Hardness tester
6. OEM avaialble:
Welcome customer's specific Drawings & Samples
Equipments
Shearing machines: 3 sets, Max. Width 4000mm× Thickness 6mm
CNC crimping machine: 2 sets, Max. Width 4000mm× Thickness 6mm
CNC laser cutting machine: 1 set, Max. Cutting size 2000mm× 4000mm ( The thickness limitation of, Carbon steel: 16mm, Stainless steel: 10mm, Aluminum: 6mm)
Plasma cutting machines by manual operation: 2 sets
Mechanical punching machines: 61 sets from 5 to 400 metric tons
Hydraulic pressing machines: 4 sets from 100 to 315 metric tons
Rolling machines (4-rollers): 2 sets, Max. Width 2000mm× Thickness 12mm
Spot welding: 6 sets
Thread rolling machine: 1 set, for ANSI 3/8" thread
CNC pipe bending machines: 2 sets, Max for the pipe OD=80mm
GWMA (CO2Gas Shielded Arc Welding) machines: 16 sets
TIG (Tungsten Insert Gas Welding) machines: 10 sets
Blasting machines: 2 sets
Equipments: |
CNC Lathes,General Lathes CNC Machining Center, Milling Machine, Stamping Machines, Driling Machines, Heading Machines, Thread Rolling Machines, Slotting Machines,Tapping Machines, Chamfering Machines, Grinder Machines. |
Testing Equipments: |
Height Gage, Coordinate Measuring Machine, Hardness Tester, Video Measuring Machine, Roughness Tester, Torsion Tester, Salt Spray Tester. |
Material: |
Brass, Bronze,Copper, Aluminum, Mild Steel, Stainless Steel, A366, D2, Alloy |
Surface Treatment: |
Zinc Plating, Nickel Plating,Chrome Plating,Passivation,Hardening, High Frequency,Clear Anodizing, Black Anodizing,Black Oxide Coating,Degreasing,
Brushing |
Certification: |
ISO, Rohs, SGS. |
Qingdao Chifine Machinery Co., Ltd is One Famous Company in China Which Specialized in Various Metal Casting Products with Over 10 Years Experience Located in Qingdao China. It Covers a Comprehensive Range of Forging, Stamping, Sand Casting, Investment Casting, Die Casting and Machining and Was Widely Used in Agriculture Machinery, Motor Vehicle, Architecture, Railway and Engineering Chifine Has Accumulated Important and Valuable Experience in Design, Manufacturing and Customer Service Over These Years We Will Continue to Integrate Our Technical Superiority, Improve Process and Quality to Increase Market Share and Create More Brilliant Future.
Automative Casting Line:
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
• Product Size: 0-1000mm.
• Weight: 0.2kg-100kg
Resin Sand Casting
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel casting(ASTM/UNS; DIN; JIS; NF; BS; ISO)
• Product Size: 0-1500mm.
• Weight: 10kg-5000kg
Shell Mould Casting
Shell casting is one of resin sand casting process.
It is suitable for thin-wall casting parts, be free from porosity.
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel alloy; Aluminum alloy; Copper alloy.
• Product Size: 0-500mm.
• Weight: 50g-100kg.
• Wall thickness: 4-20mm
Lost Wax Casting
• Advanced wax-injection-machine and tool to ensure accurate wax-patten.
• Stable temperature and humidity environment make the wax-patten no deformation.
• Material:
Carbon steel; Stainless steel; Alloy steel.
Grey iron(GG20-GG35).
Ductile iron(GGG40-GGG60);
Malleable cast-iron
(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Aluminum alloy; Copper alloy.
• Casting size: 0-500mm.
• Casting weight: 50g-100kg
Stamping and Forging Line
• Stamping and forging equipment: 16T-300T press machine
• Automatic transport forging line
• Material: Carbon steel; Stainless steel; Alloy steel.
Aluminum alloy; Copper alloy.
Machining Shop
Our machining shop located in Qingdao, using the latest CNC equipment to provide our customer with high quality products.
• Horizontal and Vertical Machining Center
• CNC lathe and normal lathe
• CNC drilling and milling Center
• Other assistant equipment
