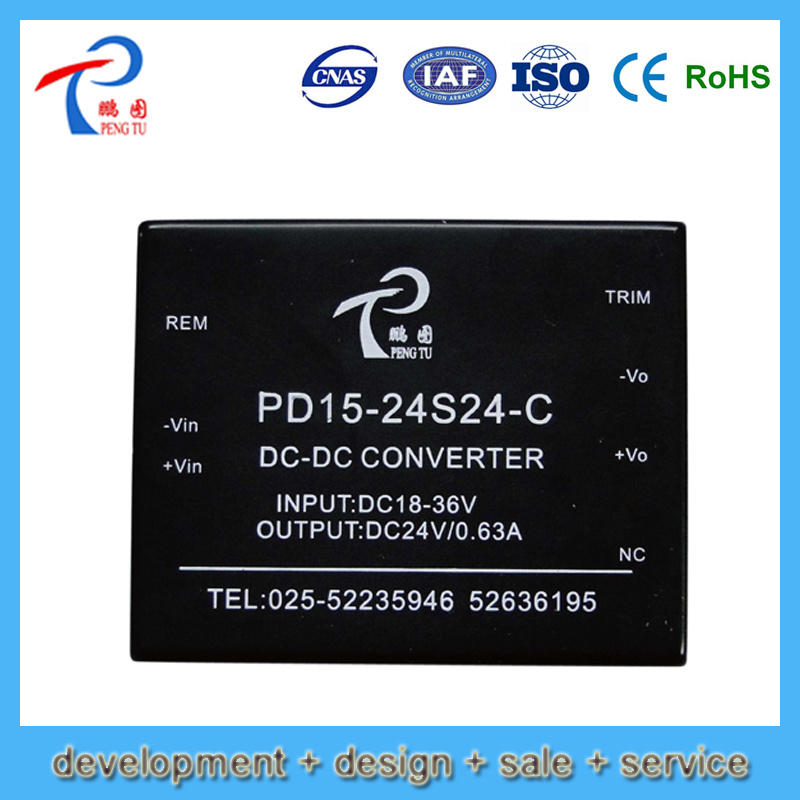

Factory Direct Input 110vdc to Dual output 24vdc 20w Power supply
Features:
Pin function compatible
Full load efficiency up to 89%
Design for high reliability, long lifetime
C type input filter
High power density
Small volume, single& Dual output
Excellent current limiting protection, continually operated in short circuit state
Input Characteristic:
Input voltage range............ 9 ~ 18 VDC Rated value: 12VDC
18 ~ 36 VDC Rated value: 24VDC
36 ~ 72 VDC Rated value: 48VDC
70 ~ 140 VDC Rated value: 110VDC
Reverse Protection Fuse Outside
Output Characteristic:
Voltage set-point accuracy ......... ±2%
Line regulation(main) ......... ±10%
Load regulation(main) ......... ±0.2%
Temperature coefficient ......… ±0.01%/ºC
Output current limiting ......… 120%(Typ)
Dynamic response ............… 400μs
Power ..................... 15-20W
General Characteristic:
Switching frequency ............ 200 KHz
Isolation resistance ............ 200 MΩ
MTBF ..................… >500000H
Isolation voltage
Input-output: >1500 VDC
Input-case: >1050 VDC
Output-case: >500 VDC
Environmental Characteristic
Operation temperature ......... Industry: -25-+60ºC; MilitaryI: -40~ +70ºC; Military II: -55-+85ºC
Storage temperature ............ Industry: -45~ +105ºC; Military: -55~ +105ºC
Mechanical drawing and pin definition
Company information
Name of Co.:Nanjing Pengtu Power Supply Co.,Ltd
Address:NO.16 Songgang Road Jiangning District, Nanjing, China
Tel. No.:025-52636417
Fax No.:025-52636195
Model | Output Lines | Input Voltage (V) | Input Voltage Range (V) | Output Voltage (V) | Output Current (A) | Ripple pk-pk (mv) | Efficieency (Typ) |
| PD7.5-12S2.5-C | Single | 12 | 9-18 | 2.5 | 3 | 50 | 71% |
| PD13.2-12S3.3-C | Single | 12 | 9-18 | 3.3 | 4 | 50 | 75% |
| PD15-12S05-C | Single | 12 | 9-18 | 5 | 3 | 50 | 82% |
| PD7.5-24S2.5-C | Single | 24 | 18-36 | 2.5 | 3 | 50 | 73% |
| PD13.2-24S3.3-C | Single | 24 | 18-36 | 3.3 | 4 | 50 | 78% |
| PD15-24S05-C | Single | 24 | 18-36 | 5 | 3 | 50 | 82% |
| PD7.5-48S2.5-C | Single | 48 | 36-72 | 2.5 | 3 | 50 | 75% |
| PD13.2-48S3.3-C | Single | 48 | 36-72 | 3.3 | 4 | 50 | 79% |
| PD15-48S05-C | Single | 48 | 36-72 | 5 | 3 | 50 | 82% |
| PD15-110S24-C | Single | 110 | 70-140 | 24 | 0.63 | 200 | 85% |
| PD10-12D2.5-C | Dual | 12 | 9-18 | ±2.5 | ±2 | 50 | 78% |
| PD15-12D05-C | Dual | 12 | 9-18 | ±5 | ±1.5 | 50 | 80% |
| PD15-12D15-C | Dual | 12 | 9-18 | ±15 | ±0.5 | 150 | 86% |
| PD13-24D3.3-C | Dual | 24 | 18-36 | ±3.3 | ±2 | 50 | 79% |
| PD15-24D05-C | Dual | 24 | 18-36 | ±5 | ±1.5 | 50 | 80% |
| PD20-24D12-C | Dual | 24 | 18-36 | ±12 | ±0.83 | 120 | 86% |
| PD13-48D3.3-C | Dual | 48 | 36-72 | ±3.3 | ±2 | 50 | 79% |
| PD15-48D05-C | Dual | 48 | 36-72 | ±5 | ±1.5 | 50 | 85% |
| PD15-48D15-C | Dual | 48 | 36-72 | ±15 | ±0.5 | 150 | 89% |
| PD15-110D05-C | Dual | 110 | 70-140 | ±5 | ±1.5 | 50 | 85% |
| PD20-110D12-C | Dual | 110 | 70-140 | ±12 | ±0.83 | 120 | 86% |
| PD20-110D24-C | Dual | 110 | 70-140 | ±24 | ±0.4 | 200 | 86%
|
