Product Specifications
| Prod Model: |
XQD-19 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Strap Width: |
19mm |
| Tool Size: |
280X160X180mm |
| Tool Net Weight: |
3.8kgs |
| Apply To: |
PP/Pet Strap |
| Thickness: |
0.6-1.2mm |
| Strapping Material: |
Strip |
| Packaging Type: |
Cartons |
| Automatic Grade: |
Semi-Automatic |
| Strapping Mode: |
Welding Type |
| Driven Type: |
Pneumatic |
| Structure: |
Hand Strapping |
| Application: |
Wooden Case |
Product Description

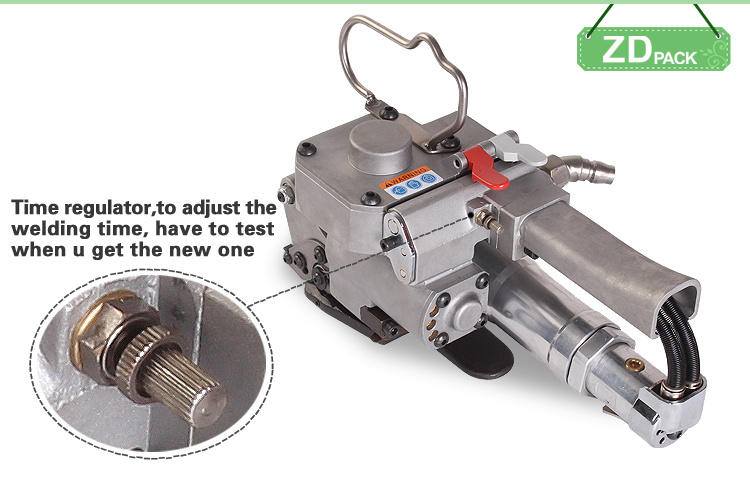

Factory of PP and Pet Pneumatic Strapping Tool (C. MV-19/25/32)
The tool works on the polyester or polypropylene strap, friction weld,actuated by the air. Popularly apply to the wooden case baling,barrel,big size carton or Steel coil packaging.
The air compressor is required for the air supply. It is good at strap size: 19mmx0.8mm.
Technology imported from Switzerland, XQD-19E-25E PET Pneumatic Packing Tool adopts high pressure air supply to tension and friction welding at high speed and finish the packing at one time . It is swift and tidy with flat and tact welding point, and is widely applied to light steel industry, metal, paper-making, stone and wood material packing tools.
Specification
Model |
Max belt thickness |
Max shrinking force |
Average air pressure | (mm)
Dimension |
Weight |
| XQD-19E | 13-19x1.0mm | 259kg | 0.65Mpa | 280x160x180mm | 3.8kg |
| XQD-25E | 16-25x1.2mm | 259kg | 0.65Mpa | 280x160x180mm | 3.8kg |
Wenzhou Zhenda Packing Machine Co., Ltd. is a leading manufacturer in respect of simple packing machines. Located in Qingjiang industrial, Yueqing, Zhejiang, China, establish in 2003. We have been engaged in the field for decade years. Our company insists on the tenets of "Unity Cooperation, Professional Production, Technical Creation, and Enterprising". With high technology, best quality, full specifications, and good package, we have won a good reputation among customers, and our brand extending well at home and abroad. Our goods are exported to Southeast Asia, Europe, America, Middle East and so on. We specialize in pneumatic strapping tools, electric strapping machines, battery operated strapping tools, manualPP/PET tensioner and sealer, steel strapping tools and machine, they are applied for polyester and polypropylene strap and steel strap.
