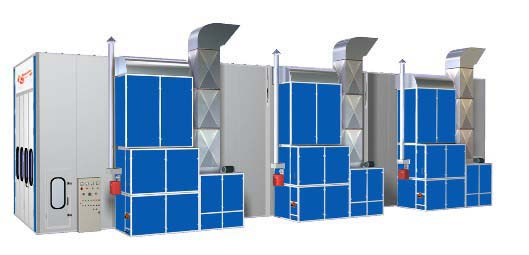

Factory Paint Booth

Name: Factory Paint Booth
Brand: china-manufacturer-directory.com
SKU: 684968672
Availability: InStock
Rating: 4.9 (54 reviews)

Supplier:	Guangzhou Guangzhen Electromechanical Equipment Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inside Size:	6900X3900X2700mm
Color:	Blue, Red, Orange & Greyish White
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Certification:	CE
Condition:	New

Product Description

We are the most professional spray booth manufacturer in China, please feel free to contact us.

1. CE, ISO, SGS certificate of spray booth.
2. Factory Price, Energy Saving, Excellent Quality,
3. Can be design it according to your request.
4. One year warranty
5. Easy to operate and environmental type
6. Best After-sell Service, Timely Delivery

Spray Booth RM-6
Outside size	7000x5600x3500mm ( L x W x H )
Inside Size	6900x3900x2700mm( L x W x H )
Front Door	Folding door, 3-folds, 3000 x 2600mm (W x H), without frame cover, square glass windows.
Service Door	1 piece of service door, 800 x 2000 mm (W x H).The side service door with a pressure lock which will automatically open when the pressure inside is over-pressure .
Wallboard	Double skinned, 50mm thick EPS, width is 1150mm. 0.476mm color steel with rock wool inside. Tongue & groove style compound construction, Galvanized steel roof panel.
Basement	Galvanized steel assemble, 300mm high, quadrate steel support, with adjustable bolts, quadrate steel support, full grilles made by flat bar & twisted steel, galvanized.3pcs of ramps, 900 x 2000mm/pc.
Air Circulation System	2 units of 4kw double-intake centrifugal fan, belt drive, the model is TAE- 400H, total air capacity for each is 25000m 3 /h. 1 unit of 7.5kw double-exhaust centrifugal fan, belt drive, the model is TAE-560H. Air Capacity for each is 24000m 3 /h.
Generator Cabinet	Intake from side upper, exhaust from back upper, aluminum alloy frame, white coated steel cover, filled with heat preservation material inside.
Water based paint Drying System	With water based paint system on the both sides of ceiling, stainless steel nozzles. 4 units 0.77kw centrifugal fan, total air quantity is 13400m 3 /h.
Heating System	ItalyRIELLO RG5S diesel burner, stainless steel heat exchanger, pneumatic damper actuates from spraying to baking cycle. Max heating Productivity is 260000kcal/h, Max. Temperature is 80 ºC.
Lighting System	Ceiling light has 8units x 2pcs = 16 pieces of 58w lamp, side light has 10units x 4pcs = 40 pieces of 58w lamp, with electronic ballast; tri-phosphor Philips light lamp. Illuminate≥1000Lux.
Control System	Spraying, Heat spraying, Baking, Time Setting, Lighting Switch, Failure Indicator, Thermostat, Temperature Limit Controller, Hour Meter, Pressure Gauge, Pressure Alarm System, Adjustable Manual Exhaust Damper, Water based paint System switch, Power Supply, Emergency Stop, all motor are normal start.
Purification System	Dual filtering structure, the primary filter can capture granules larger than 10μm. Ceiling filter can capture granules bigger than 4μm. The whole purification system has capacity of large volume of dust. Its filtering rate reaches 98%. Air Pressure balance gauge, TSP≤1.2mg/m 3. Special configure with multilayer active carbon filter system
Total Power	18.5KW

Guangzhou Guangzhen Electromechanical Equipment Co., Ltd. is specialized in handling the business of Spray Booth, Preparation Station, Baking Oven & Car Lifts. And also it supplies Body Repair Machine, Car Wash Machine, Wheel Aligner Machine and also auto maintenance equipments. In addition, we invested another factory with 40000m². We produce about 6000 sets of these items annually.

The company has cooperated with many clients both from domestic and overseas, and has obtained consistently high praise from our customers since it was set up. We have established perfect international and domestic sales nework with our strong background so as to provide good sales service for the customers;

Pursuing eximious quality, producing one class of product. We will uphold the long-term customer service, continuous innovation and development policy, the pursuit of customer satisfaction, smile, for a better tomorrow. If you would also like to cooperate with us, please contact or visit us for more information. We sincerely welcome you to visit our company or contact us for cooperation!
